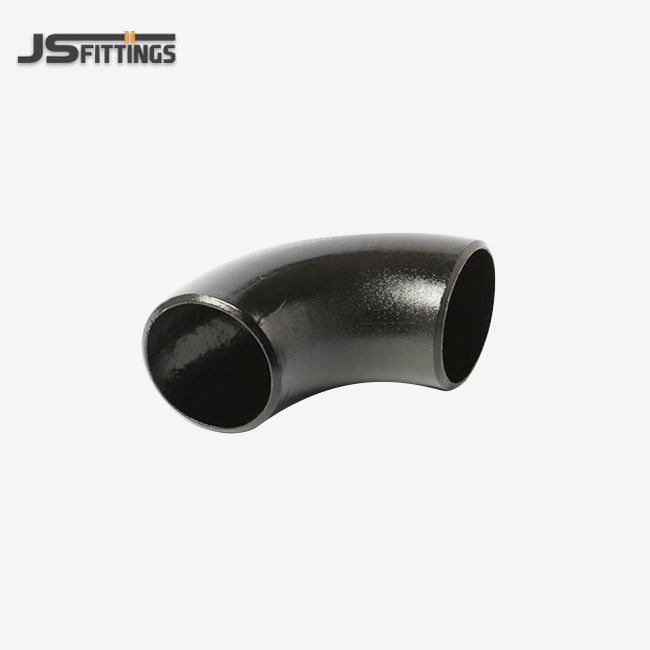

Standard Carbon Steel Butt Weld 90° Elbow ASTM A234

Our Standard Carbon Steel Butt Weld 90° Elbows, manufactured to ASTM A234 Grade WPB, are engineered for robust performance in critical piping systems. These CS butt weld fittings are designed to change flow direction seamlessly by 90 degrees, offering exceptional strength, durability, and leak-proof connections in a wide range of industrial applications.

Key Features:

Premium Material: Constructed from high-quality carbon steel (ASTM A234 Grade WPB), ensuring superior mechanical properties and resistance to stress and pressure.
Butt Weld Connection: Designed for butt welding, providing a permanent, high-integrity, and leak-proof joint that is ideal for high-pressure and high-temperature environments.
Seamless Flow Transition: The smooth 90-degree bend minimizes turbulence and pressure drop, optimizing fluid flow efficiency within the pipeline.
Dimensional Accuracy: Manufactured to precise dimensions and tolerances, guaranteeing perfect fit-up and easy installation with existing piping infrastructure.
Versatile Design: Available in various schedules (e.g., Sch 40, Sch 80, Sch 160, XS, XXS) to meet diverse pressure and wall thickness requirements.
Corrosion Resistance (Optional Coatings): Can be supplied with various internal and external coatings (e.g., black paint, anti-rust oil, galvanization) to enhance corrosion resistance as per customer specifications.

Advantages:

Exceptional Durability: The robust carbon steel construction ensures a long service life, even under demanding operational conditions, reducing maintenance and replacement costs.
High Pressure & Temperature Capability: Specifically designed to withstand significant pressure and temperature variations, making them suitable for challenging industrial processes.
Reliable Performance: Butt weld connections offer unmatched strength and sealing capability, preventing leaks and ensuring the safety and efficiency of your piping system.
Cost-Effective Solution: Carbon steel provides an excellent balance of strength, performance, and cost-effectiveness, offering a reliable solution without breaking the budget.
Wide Application Scope: Indispensable in numerous industries, these elbows provide essential directional changes in complex pipeline layouts.
Compliance & Certification: Manufactured in strict accordance with ASTM A234 standards, ensuring product quality, safety, and compatibility with international industry specifications.

Material: Carbon Steel, ASTM A234 Grade WPB
Type: 90 Degree Elbow, Long Radius (LR) or Short Radius (SR)
Connection: Butt Weld (BW)
Size Range: NPS 1/2" to NPS 48" (DN15 to DN1200), and larger upon request
Wall Thickness Schedules: Sch 10, Sch 20, Sch 30, STD, Sch 40, Sch 60, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS, and custom thicknesses
Manufacturing Standards: ASME B16.9, MSS SP-75, EN 10253-2
Surface Treatment: Black Paint, Anti-rust Oil, Hot-dip Galvanized, or as per customer requirement
Tests: Chemical Composition Analysis, Mechanical Properties Testing, Hydrostatic Testing, Radiographic Testing (RT), Ultrasonic Testing (UT), Eddy Current Testing (ET) as required.

Our Standard Carbon Steel Butt Weld 90° Elbows are critical components in a vast array of industrial sectors, including:

• Oil & Gas Industry: Upstream, midstream, and downstream operations, including refineries, pipelines, and processing plants.
• Petrochemical Plants: Chemical processing, synthetic material production, and fertilizer manufacturing.
• Power Generation: Thermal power plants, nuclear power facilities, and hydroelectric installations.
• Water Treatment & Supply: Large-scale municipal water systems, industrial water processing, and wastewater treatment.
• Shipbuilding: Marine piping systems for various fluids and gases.
• Construction: Commercial and industrial building infrastructure.
• General Industrial Piping: Any application requiring a robust and reliable 90-degree change in flow direction for liquids, gases, or slurries.

Why Choose Our ASTM A234 WPB 90° Elbows?

We are committed to delivering high-quality, reliable piping components that meet the rigorous demands of modern industrial applications. Our ASTM A234 WPB 90° elbows are manufactured with precision, undergo stringent quality control, and are backed by comprehensive certification, ensuring you receive a product that offers unparalleled performance and peace of mind.
