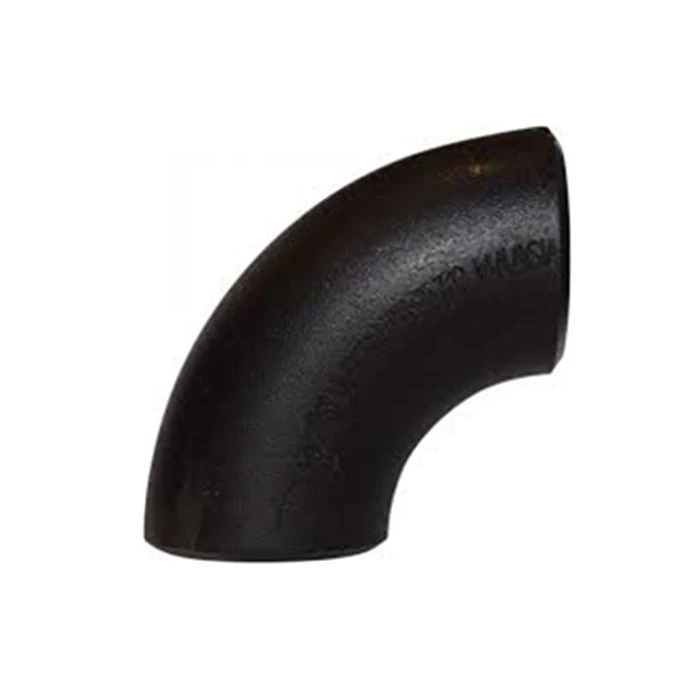

Carbon Steel Schedule 40 Butt Weld Elbow

In the demanding world of industrial piping, selecting the right pipe fitting components is paramount for system integrity, operational efficiency, and long-term cost-effectiveness. Our Carbon Steel Schedule 40 Butt Weld Elbows are meticulously engineered to meet these stringent requirements, offering an unparalleled combination of strength, reliability, and precision. Designed for seamless integration into various piping systems, these butt weld elbows are the cornerstone of robust and efficient fluid transport.

Why Choose Carbon Steel Schedule 40 Butt Weld Elbows?

Carbon steel is a widely favored material in industrial applications due to its exceptional mechanical properties, including high tensile strength, excellent ductility, and good resistance to wear and tear. When combined with the Schedule 40 wall thickness, these butt weld elbows are built to withstand significant pressure and temperature variations, making them suitable for a broad spectrum of critical applications.

Key Features & Benefits:

1. Exceptional Durability: Manufactured from high-grade carbon steel, these elbows offer superior strength and resistance to mechanical stress, ensuring a long service life even in harsh operating environments.
2. Schedule 40 Wall Thickness: The Schedule 40 designation indicates a robust wall thickness, providing enhanced pressure retention capabilities and structural integrity, crucial for high-pressure and critical applications.
3. Seamless Butt Weld Connection: Butt welding creates a monolithic, leak-proof connection with minimal flow restriction. This method provides maximum structural strength and eliminates potential leak paths often associated with threaded or flanged connections.
4. Optimized Flow Dynamics: The smooth internal surface and precise radii of our elbows minimize turbulence and pressure drop, facilitating efficient fluid flow and reducing energy consumption within your piping system.
5. Versatile Applications: Ideal for a wide range of industries, including oil & gas, petrochemical, power generation, water treatment, and general industrial plumbing, where reliable redirection of flow is essential.
6. Cost-Effective Solution: Despite their premium quality, carbon steel fittings offer an excellent balance of performance and cost, providing a durable solution without excessive capital expenditure.
7. Compliance & Standards: Our Carbon Steel Schedule 40 Butt Weld Elbows are manufactured in compliance with relevant industry standards (e.g., ASME B16.9, ASTM A234 WPB), ensuring quality, compatibility, and safety.

Technical Specifications

Material: Carbon Steel (e.g., ASTM A234 WPB)
Size Range: 1/2" NPS to 24" NPS and beyond
Wall Thickness: Schedule 40 (SCH 40)
Type: Long Radius (LR) / Short Radius (SR) butt weld elbow
Degrees: 45 Degree, 90 Degree, 180 Degree elbow
Manufacturing Standard: ASME B16.9,EN 10253 / GOST standards
End Connection: Butt Weld (BW)
Surface Finish: Black, Mill Finish, Primed, or as customer requirements.
Tolerance: In accordance with ASME B16.9
Testing: Hydrostatic Testing, NDT as per customer requirements

Applications Where Reliability Matters

Our Carbon Steel Schedule 40 Butt Weld Elbows are critical components in systems conveying:

• Water and wastewater
• Natural gas and petroleum products
• Steam and condensate
• Chemicals and slurries
• Hydraulic and pneumatic lines

Installation and Maintenance

The butt weld design ensures a strong and permanent connection, requiring skilled welding for installation. Proper welding procedures, qualified welders, and adherence to industry codes are essential for optimal performance. Once installed, these fittings typically require minimal maintenance, thanks to the inherent durability of carbon steel. Regular inspection for external corrosion or mechanical damage is recommended as part of a routine maintenance program.

When it comes to the integrity of your piping system, compromise is not an option. Our Carbon Steel Schedule 40 Butt Weld Elbows offer the superior performance and reliability you need to maintain continuous, safe, and efficient operations. Partner with us for high-quality fittings that stand the test of time.

Contact us today for a quote or to discuss your specific requirements!

Email: admin@chinajsgj.com
Phone: +8618003119682

FAQ

Q: What is the difference between long radius and short radius elbows?
A: Long radius elbows have a centerline radius equal to 1.5 times the nominal pipe size, while short radius elbows have a centerline radius equal to the nominal pipe size. Long radius elbows offer smoother flow and less pressure drop, making them ideal for high-flow applications.

Q: Can you provide custom products?
A: Yes, we can manufacture custom products to meet your specific requirements. Please contact our sales team with your specifications for a quote.

Q: What is the typical lead time for your products?
A: Lead times vary depending on the material, size, and quantity ordered. Generally, our lead times range from 2-6 weeks. For more accurate information, please contact our sales team.

Q: Do you offer material test certificates (MTCs) with your products?
A: Yes, we provide material test certificates (EN 10204 3.1) with all our products upon request.
