Stainless Steel Forged Flanges

1. Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint, and Plate flanges, etc.

2.Standard: ANSI, JIS, DIN, EN;

3.Material: 304/304L, 316/316L, 316H, 310, F321 F44 (UNS S31254) Alloy Steel flanges ASTM A182 F1, F5a, F9, F11, F12, F22, F91;

4.Wall Thickness: Sch10, Sch20 , Sch30, STD, Sch40, XS,Sch80, Sch100, Sch120, Sch140, XXS;

5.Pressure Rating: Class 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS, 2000LBS, 3000LBS, 6000LBS, 9000 LBS;

6. Surface treatment: antirust oil, black/yellow/transparent/electric galvanized / hot galvanized.

Send Inquiry

Product Description

Stainless steel forged flanges are vital for connecting pipes, valves, pumps, and other equipment in piping systems. Renowned for their strength, corrosion resistance, and durability, these flanges also allow easy access for cleaning, inspection, and modification.
Two flanges are secured with bolts and a seal to ensure a leak-proof connection. While various flange standards exist, our products adhere to strict regulations, guaranteeing both functionality and interchangeability.
Notably, forged flanges offer superior strength compared to drawn flanges, as they are crafted from a single piece of raw material without welded joints.

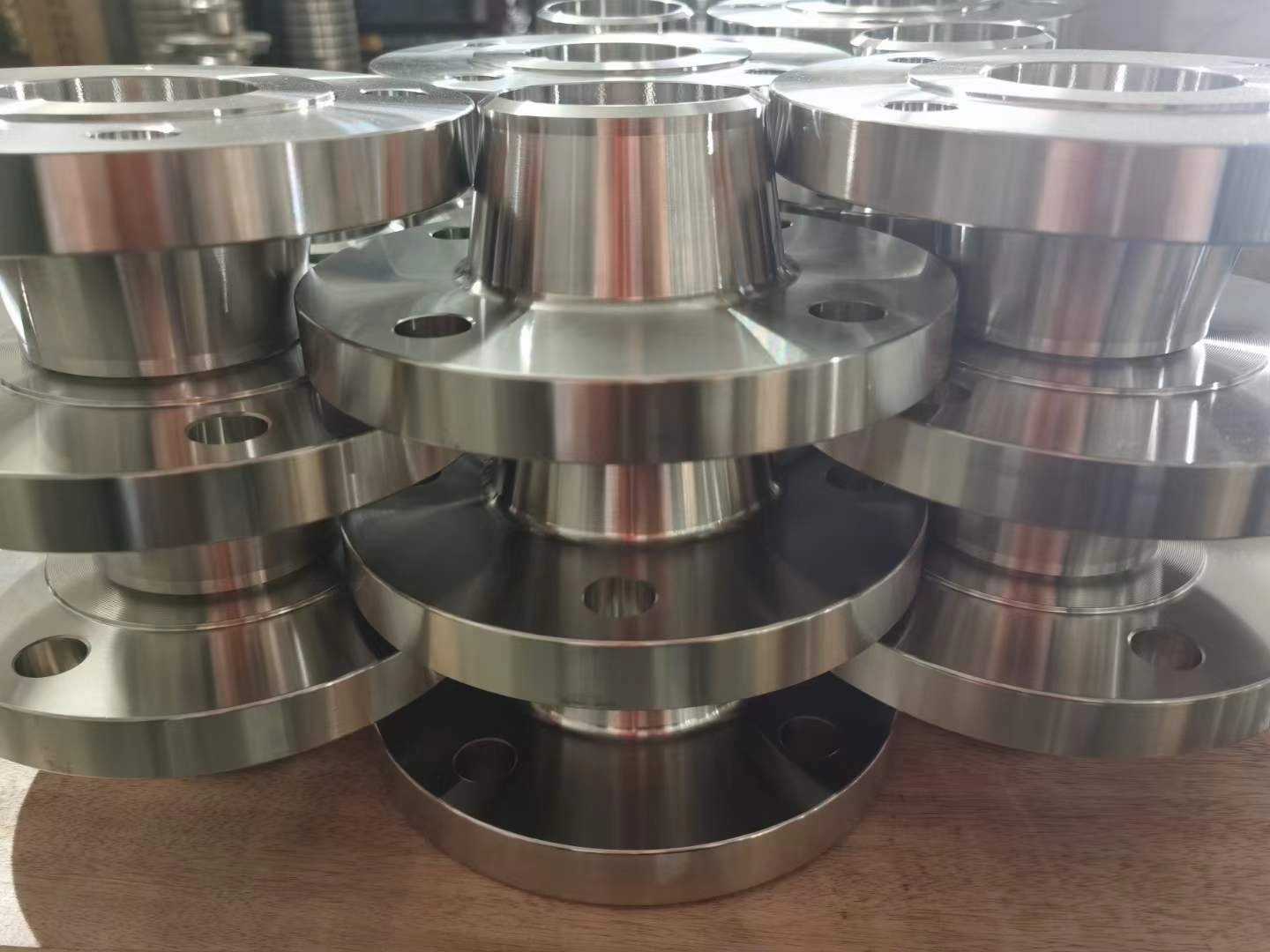

stainless steel forged flange

Dimensional Range

Size Range: 1/2" to 48" (DN 15 to DN 1200)
Pressure Rating: Class 150, 300, 600, 900, 1500, 2500 (PN 10 to PN 420)
Standards: ANSI/ASME B16.5, ANSI/ASME B16.47, EN 1092-1, DIN, JIS, BS

Surface Treatment (if required)

Polishing, Pickling, Passivation, Coating (as specified)

Stainless steel forged flange surface treatment

Stainless Steel Flanges Working Pressure

Standard	Flange Types	Pressure Classes	Size Range
ASME/ANSI B16.5	Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flange	150 to 2500LBS 150 to 1500LBS	26" to 60" 26" to 48"

Application Fields

Industry	Example Applications
Oil and Gas	Pipelines, refineries, offshore platforms
Petrochemical	Chemical processing plants, storage tanks
Power Generation	Power plants, nuclear facilities
Water Treatment	Water and wastewater treatment plants
Pharmaceutical	Pharmaceutical production facilities
Food and Beverage	Food processing and manufacturing
Shipbuilding	Marine and shipbuilding industries
Construction	Structural applications, HVAC systems

Contact Us

Ready to elevate your industrial projects with our premium stainless steel forged Flanges? Contact Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd today:

Email: admin@chinajsgj.com
Phone: +8618003119682

Experience the difference of industry-leading manufacturing and uncompromising quality. Let's build a stronger, more efficient future together with Hebei Jinsheng's products.
