ANSI B 16.5 8" slip on flange connection of oil pipeline

ANSI B 16.5 8" slip on flange connection of oil pipeline

ANSI B 16.5 8
ANSI B 16.5 8ANSI B 16.5 8ANSI B 16.5 8ANSI B 16.5 8ANSI B 16.5 8
CategoriesSteel Pipe Flange ASME B 16.5
AlbumView larger image
BrandJS FITTINGS
Modelslip on flange
SizeDN200
SurfaceBlack painted
UsageOil ,gas pipeling
PackagePlywoodcase or pallet
TransportBy sea
FOB portTIANJIN PORT
Terms of PaymentL/C, T/T
Update Time2019-12-06
Detail Information
Detials of JS FITTINGS slip on flanges

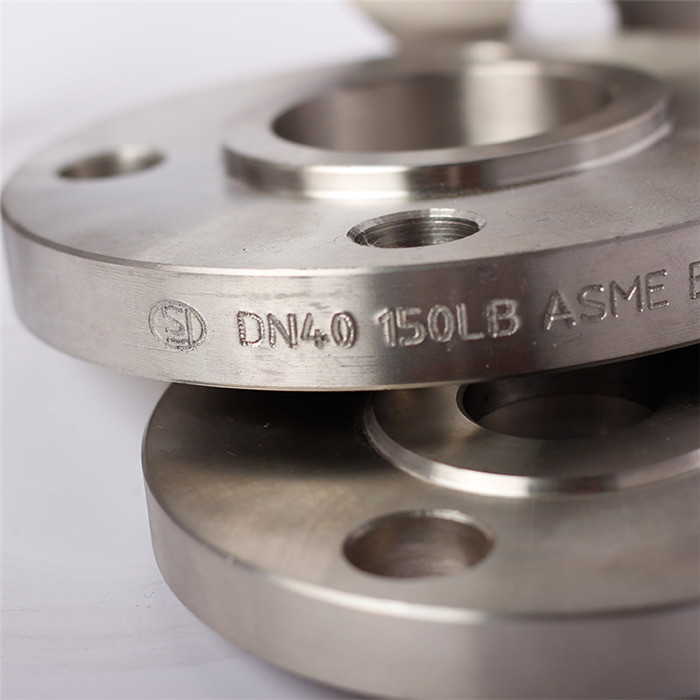

mark on the flanges
MARK ON FLANGES
In order to distinguish each piece of flanges, JS FITTINGS always make the mark with material, size, pressure, standard and heat number.

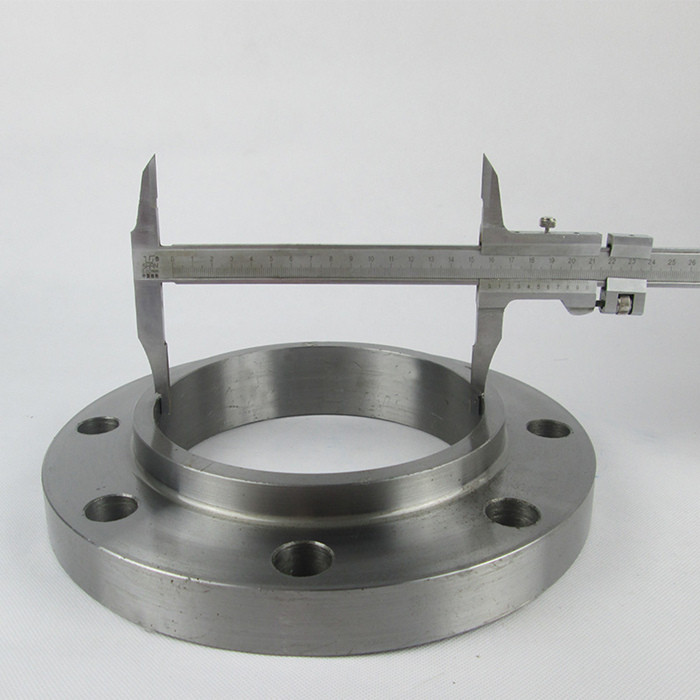

inspection of slip-on flanges
Inspection of flanges
With 36-year experience, JS FITTINGS can produce both standard flangs and customized flanges with technology data and drawing.

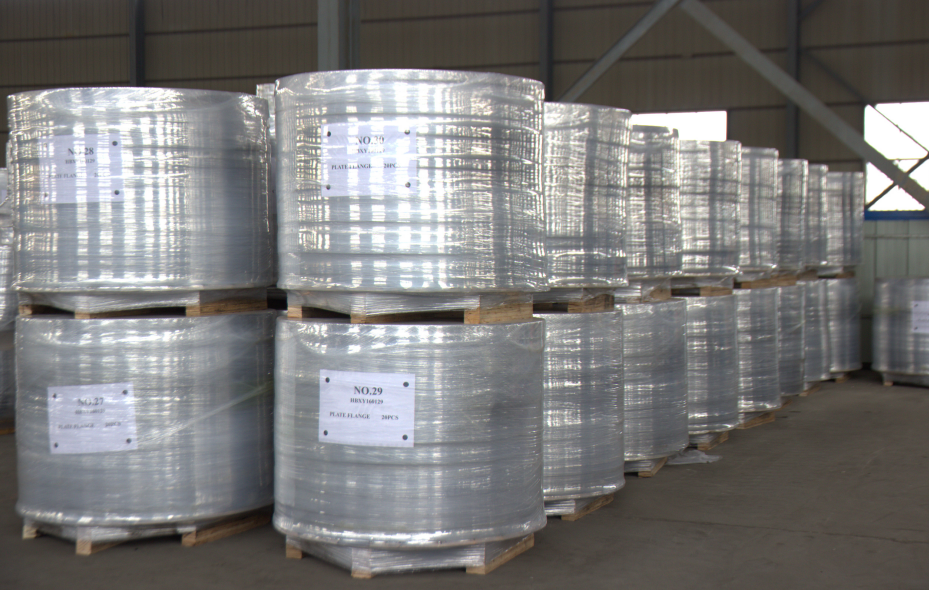

package of slip-on flanges
Package of flanges
Smaller size flangs will be packaged in the plywood cases, and bigger size will be packaged on the pallets, with plastic film and packaging belts outside.
Production of JS FITTINGS  flanges

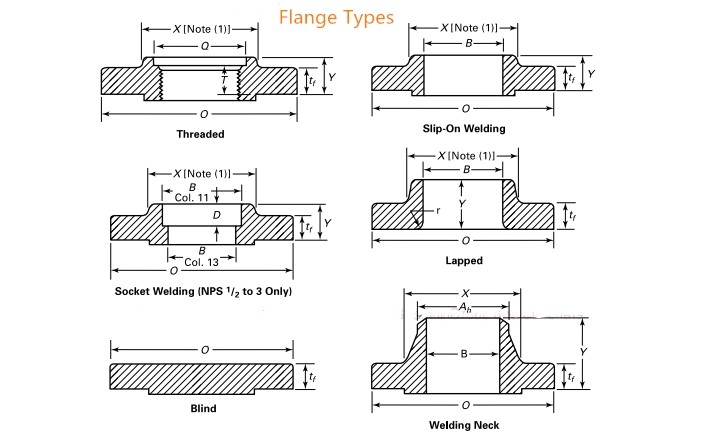

Flange types that JS FITTINGS can make
TYPES OF PIPE FLANGE
Flange Types
The basic types of flanges are:
  • Slip-on
  • Blind
  • Lap-Joint
  • Socket Weld
  • Threaded
  • Weld-Neck
  • Orifice

The slip-on flange is slipped over the pipe and is settled by welding at both top and base side of the flange. They are used to provide sufficient strength to the connection and prevent leakage. This flange is favored over weld neck flanges as less accuracy is required when cutting pipe to length, the cost to produce is lower but there is nearly the same outcome.
