150lb A105 yellow painted threaded flanges

150lb A105 yellow painted threaded flanges

150lb A105 yellow painted threaded flanges
150lb A105 yellow painted threaded flanges150lb A105 yellow painted threaded flanges150lb A105 yellow painted threaded flanges
CategoriesSteel Pipe Flange ASME B 16.5
AlbumView larger image
BrandJS FITTINGS
Modelclass 150
Surface treatmentAnti-rust Oil
SealRaised face Flat face
ConnectionWelding
FOB portTianjin Xingang, Qingdao, Shanghai , Shenzhen, Guangzhou, Yiwu
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal, Crash
Update Time2020-10-27
Detail Information
150lb A105 yellow painted threaded flanges
Fittings conform to ASTM A234, ASTM A 234WPB, specifications and to ASME/ANSI B 16.9, B 16.28 specification.
Flanges conform to ASTM A 105, ASME/ANSI B 16.5 specifications.
Details of Surface Treatment
Yellow Painting of WN flanges
Anti-Rust oil of WNflanges
Plack Painting of WN flanges
The advantage of threaded flanges is that there is no need for welding and the additional torque generated by flange deformation on the tube or pipe is very small. The shortcoming is the flange thickness is big, the cost is high. Suitable for high pressure pipe connection.
1. The yellow painting is bright and dazzling, it is needed in the markets of South East of Asia and Africa.
2. Black painting is looks more seriesly than other color, it is needed in the markets of South east and mild east of Asia.
3. Anti-rust oil is popular in the most markets of the world, and it's the cheapest treatment way.
Data of Threaded Flanges

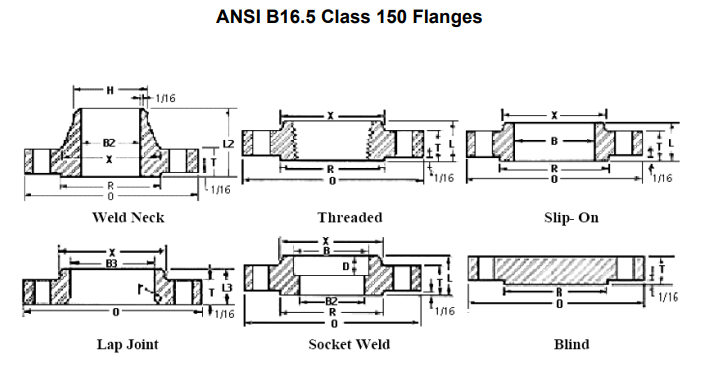

drawing of ASME B 16.5 flanges

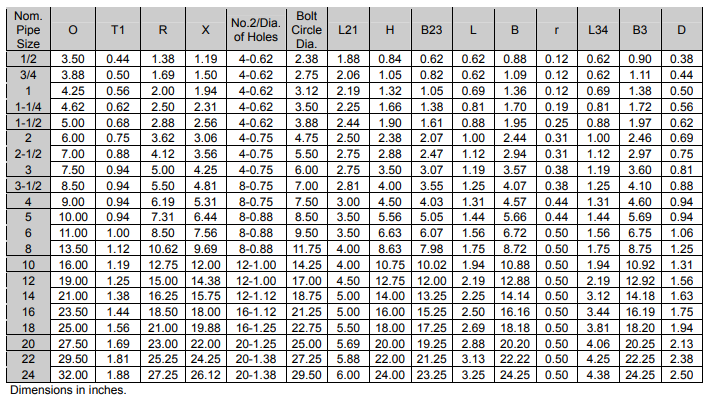

data of ASME B 16.5 flanges
Delivery of JS FITTINGS Threaded  Flanges
FLANGES WITH Anti-rust Oil
put flanges into the pallet
size smaller than DN 600 use plywood cases
loading the flanges
