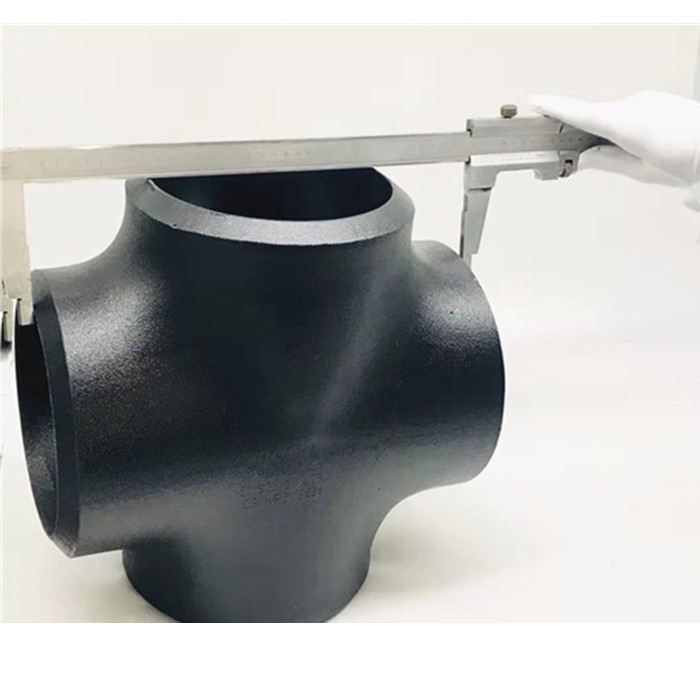

ASME B16.9 carbon steel cross pipe fitting

Categories	Steel Pipe Cross
Brand	JS FITTINGS
Model	JS-CS
Brand	JS FITTINGS
Size	1/2''-- 48''
Type	Seamless, welded
Origin	Yanshan, Cangzhou, Hebei, China
Application	Water, Oil and Gas
FOB port	Tianjin, Qingdao, Shanghai
Update Time	June 11,2023

Contact Now

Favorites

Detail Information

Title

Specifications

Specifications:

ASTM / ASME A234, A420, A860, A403

Dimensions:

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size:

1/2"NB TO 48"NB IN

Type:

Seamless / ERW / Welded / Fabricated

Thickness:

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Carbon Steel:

A234 WPB, A420 WPL6, A860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70.

Stainless Steel:

A403 304, 304L, 310, 316, 316L, 317, 317L.

Manufacturing Standards of Buttweld Pipe Cross, Equal Cross, Reducing Cross

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

ASTM A403 – ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Buttweld Pipe Cross Material Grades

Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel	ASTM A420 WPL3, A420 WPL6
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

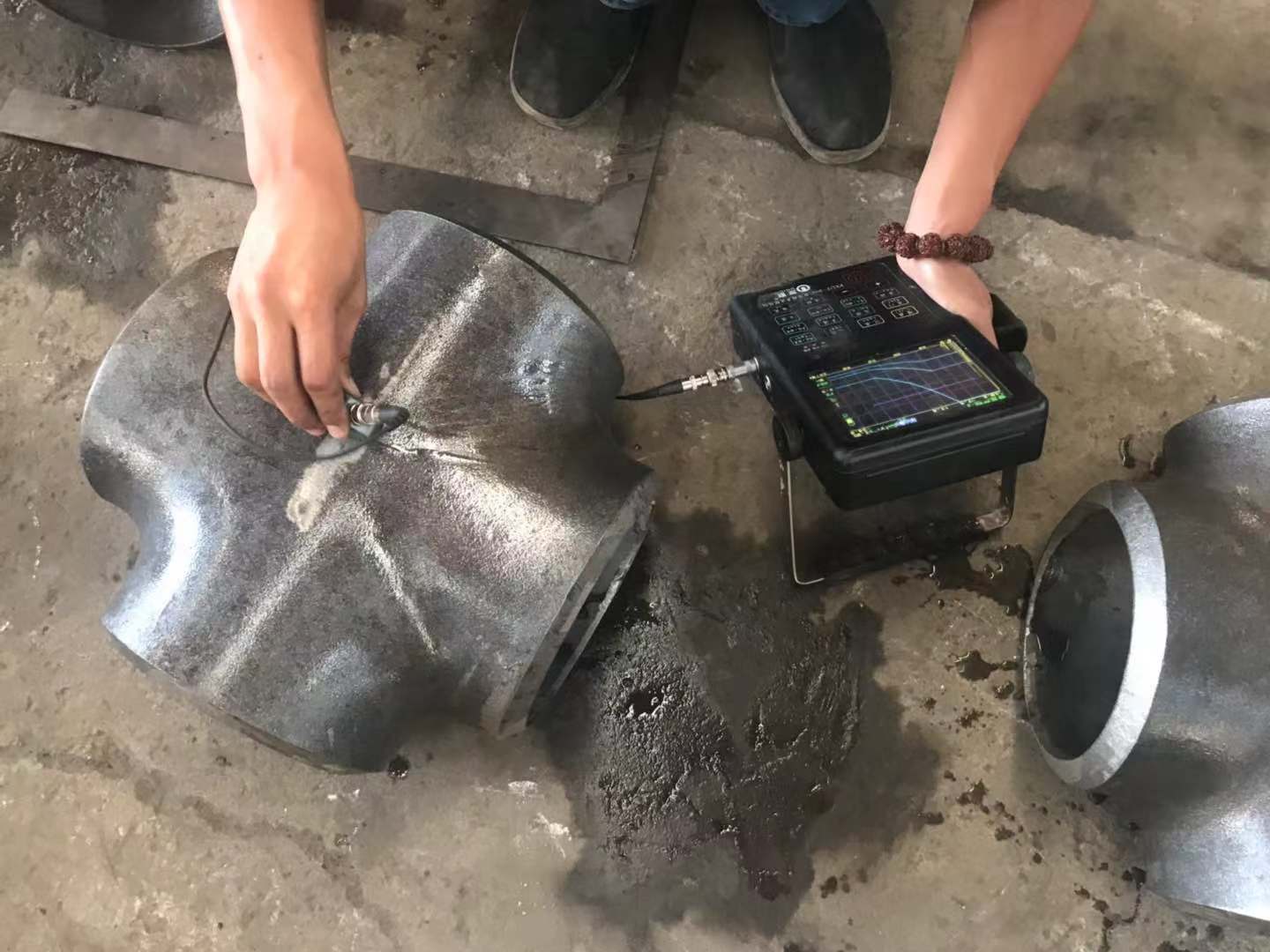

Pipe cross is a kind of pipe fittings used for pipe branch. Pipe cross is divided into equal diameter and different diameter. The nozzles of equal cross are the same size; the nozzles of reducing cross are the same size, while the nozzles of branch are smaller than the nozzles. For butt weld cross cross manufacturing, there are two commonly used processes: hydraulic bulging and hot pressing. Hydraulic bulging is a kind of forming of expanding branch pipe by axial compensation of metal material. The process is to use a special hydraulic press to inject liquid into the billet with the same diameter of the cross pipe. The billet is extruded synchronously through the two horizontal cylinders of the hydraulic press. The volume of the billet decreases after extrusion, and the liquid in the billet increases with the volume of the billet. When the pressure required for the expansion of the cross branch pipe is reached, gold will be extruded. The material expands the branch pipe by flowing along the inner cavity of the die under the double action of liquid in the side cylinder and tube blank. Cross hydraulic bulging process can be formed at one time, and the production efficiency is high. Cross main pipe and shoulder wall thickness are increased. Because the hydraulic bulging process of seamless cross needs a large tonnage of equipment, it is mainly used in the manufacture of standard wall thickness cross less than dn400 in china at present. The pipe cross is manufactured by hydraulic forming process.

when quoting a price for pipe cross connection, it is necessary to accurately inform the pipeline pressure used, or directly inform the elbow wall thickness, so as to report the precise price. There are sch10s sch20s and other different pressure grades which conventionally express the elbow wall thickness, representing different thickness. You can refer to the pressure grade wall thickness table.

four general uses of stainless steel: petroleum gas pipeline engineering, natural gas pipeline engineering, chemical plant, power
