3PE Coated Steel Pipe - Industrial Anti-Corrosion Pipeline Solution

Product Overview

Our 3PE Coated Steel Pipe features a three-layer polyethylene coating system that meets API 5L and EN 10219 dual standards. The coating consists of fusion-bonded epoxy primer (>100μm), copolymer adhesive layer (170-250μm), and high-density polyethylene outer layer (1.8-3.7mm). With JSFITTINGS's 42-year manufacturing expertise and 30,000-ton annual capacity, you get reliable anti-corrosion protection that extends pipeline service life to 50+ years in harsh soil environments. Our precision-engineered coating process delivers peel strength exceeding 80 N/cm at 20°C and operates efficiently from -40°C to +80°C.For higher temperature requirements up to 110°C, we also offer 3PP (Polypropylene) coating options.

Key Features & Advantages

30,000-Ton Production Guarantee

You benefit from stable supply chains for large-scale projects with our dedicated production capacity and Central Asia/Middle East logistics network.

Dual-Standard Compliance

Your projects meet international requirements with API 5L and EN 10219 certifications, plus DIN 30670 and ISO 21809-1 coating standards.

Active-Passive Protection System

You get dual-layer security - even with outer layer damage, the inner epoxy prevents corrosion creep and maintains structural integrity.

Precision Coating Application

You receive uniform wall thickness and precision-engineered beveling through our 100-meter automated painting lines and controlled sandblasting systems.

Chemical Resistance Superior Performance

Your pipelines resist soil chemicals, fungus, and moisture with cathodic disbondment radius ≤7mm after 48h at 65°C testing.

Technical Specifications

Chemical compositions for higher grades (X42-X70) are available upon request per API 5L specifications.

Standards & Certifications

· Coating Standards: DIN 30670, CSA Z245.21, ISO 21809-1

· Steel Standards: API 5L, ASTM A53, EN 10219

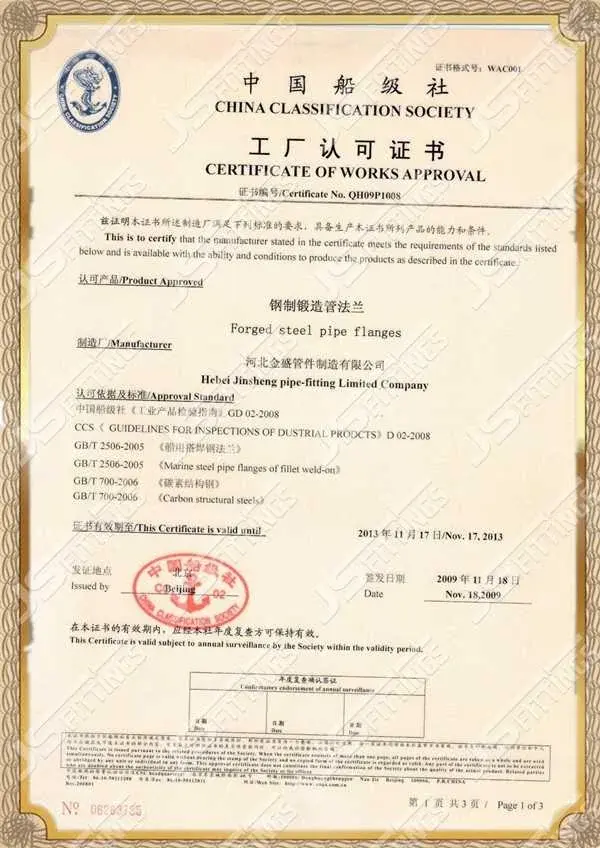

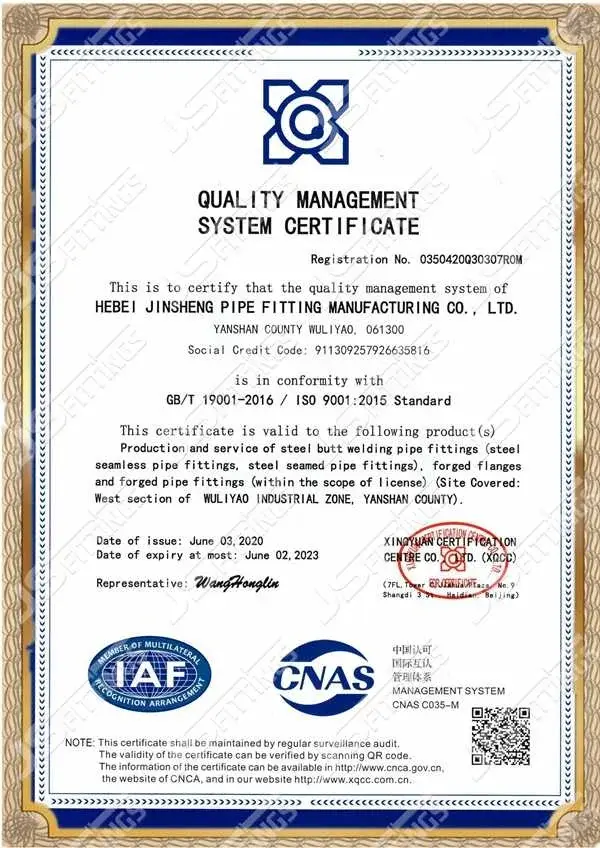

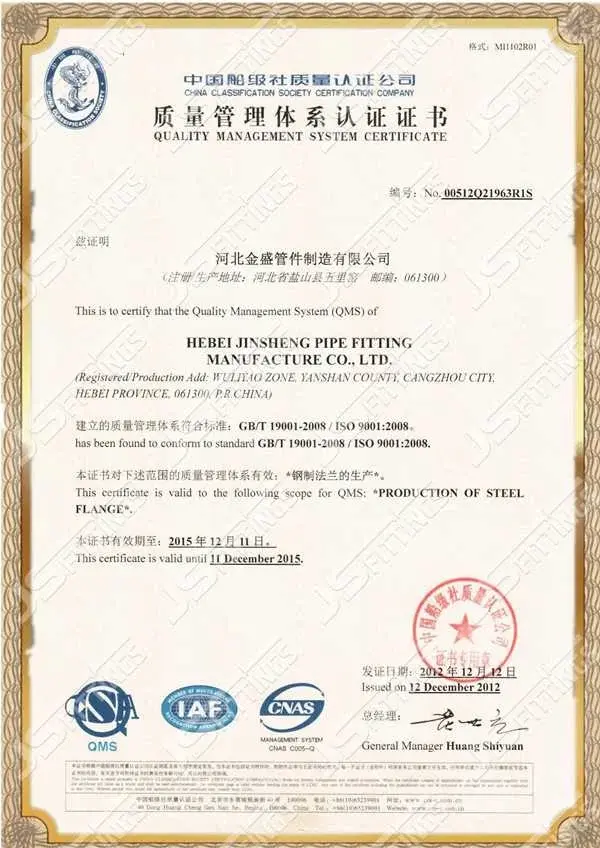

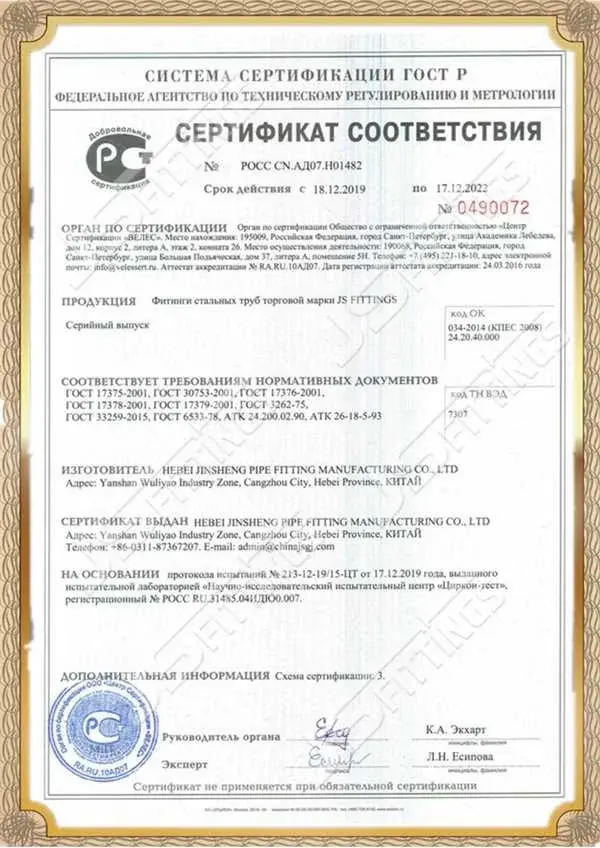

· Quality Certifications: ISO 9001, CE, GOST-R

· Industry Compliance: PETROBRAS approved for oil & gas applications

Chemical Composition & Mechanical Properties

Steel Composition (API 5L Grade B)

· Carbon: ≤0.28%

· Manganese: ≤1.20%

· Phosphorus: ≤0.030%

· Sulfur: ≤0.030%

Mechanical Properties

· Yield Strength: ≥245 MPa

· Tensile Strength: 415-760 MPa

· Elongation: ≥21%

Manufacturing Process

Our controlled manufacturing process ensures consistent quality:

1. Steel Preparation: Precision cutting with ready-to-use pipe end treatments

2. Surface Preparation: Eco-friendly sandblasting to Sa 2.5 standard

3. FBE Application: Fusion-bonded epoxy primer at controlled temperature

4. Adhesive Coating: Copolymer layer application for optimal bonding

5. PE Layer Application: High-density polyethylene extrusion

6. Quality Testing: Peel strength, impact resistance, and holiday detection

Surface Finish & Coating Options

Standard Coating Colors: Black, Blue, Yellow

Special Requirements: Custom colors available for project identification

Surface Finish: Smooth PE outer layer with uniform thickness

End Treatments: Plain end, beveled end, or threaded connections

Applications

 3PE Coated Steel Pipe serves critical infrastructure needs:

· Oil & Gas Transmission: Buried crude oil and natural gas pipelines

· Water Distribution: Municipal water supply networks

· Chemical Processing: Corrosive fluid transportation

· Marine Applications: Offshore and subsea pipeline systems

· Industrial Projects: Mining, petrochemical, and Power Generation

· District Heating: Hot water circulation systems

Packaging & Delivery

Packaging: Steel cradles with protective wrapping

Loading: 20-25 tons per 40ft container

Documentation: Mill test certificates, coating reports, dimension certificates

Delivery Time: 15-30 days for standard specifications

Shipping: Global logistics network covering Central Asia and Middle East regions

Customization Service

You can specify exact requirements:

· Custom steel grades and dimensions

· Special coating thickness requirements

· Project-specific color coding

· End preparation modifications

· Third-party inspection services

· Expedited delivery schedules

Quality Control

We maintain strict quality control measures throughout the production process:

• Raw material inspection
• Coating thickness measurement
• Holiday detection
• Adhesion testing
• Impact resistance testing

All products undergo rigorous testing to ensure compliance with international standards.

Quality Control

Every pipe undergoes rigorous testing:

· Holiday Detection: 100% electrical continuity testing

· Peel Strength Testing: Random sampling per ISO 21809-1

· Impact Resistance: Drop weight testing verification

· Dimensional Inspection: Precise measurement documentation

· Coating Thickness: Magnetic measurement at multiple points

Customer Reviews

"We tested the pipes, their performance is very nice. We will make the new purchase plan for the warehouse."

"The pipes are exactly in line with our requirement technically and competitive commercially."

"I am extremely impressed with the level of professionalism and efficiency displayed by the JSFITTINGSS team. Their in-depth technical knowledge and expertise have been instrumental in our projects."

"I have been consistently impressed with their efficient production and fast delivery times. They completed production ahead of schedule."

FAQ

Q: What's the difference between 3PE and 3LPE coating?

A: 3PE and 3LPE refer to the same three-layer polyethylene coating system. Both terms describe identical anti-corrosion technology.

Q: Can you apply coating to existing steel pipes?

A: Yes, we can apply 3Pe Coated Steel Pipe coating to seamless, welded, stainless steel, and alloy steel pipes per your specifications.

Q: What's your minimum order quantity?

A: Our minimum order is typically 25 tons, but we accommodate smaller quantities for specialized projects.

Q: How do you ensure coating adhesion quality?

A: We maintain strict surface preparation standards, controlled application temperatures, and conduct peel strength testing on every production batch.
