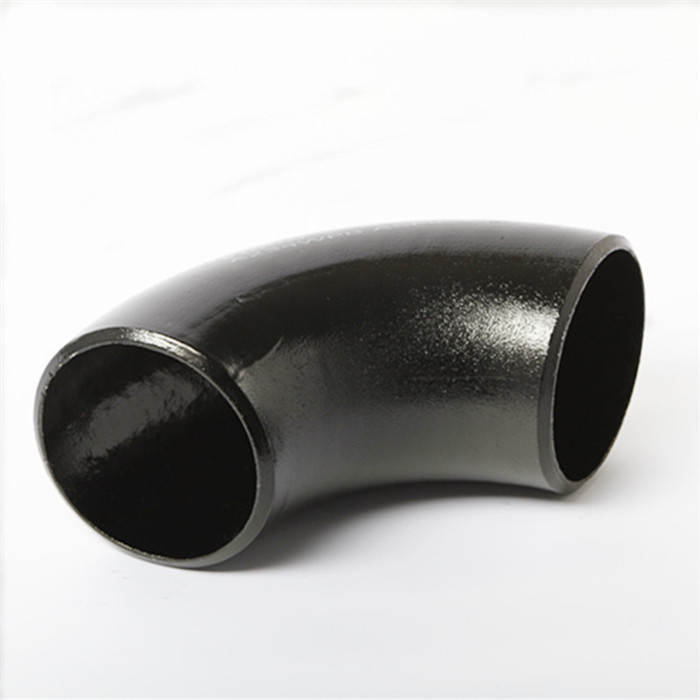

ASME B16.9 Steel Pipe Elbow

In pipeline system construction and maintenance, ASME B16.9 elbow serve as critical fittings for altering fluid flow direction. Their quality and specification compliance directly impact the safety and stability of the entire system. The ASME B16.9 standard, recognized globally as the authoritative specification for pipe fitting manufacturing, provides unified standards for elbow production, design, and application.

ASME B16.9 steel pipe elbows are among the most prevalent butt-welded fittings in industrial piping, primarily tasked with redirecting the flow within a pipeline. Catering to diverse operational needs, they are broadly categorized into Long Radius Elbows and Short Radius Elbows. Manufactured in strict accordance with the ASME B16.9 standard, they guarantee precise dimensional accuracy and uncompromising safety performance.

ASME B16.9 Elbow Fitting Specifications



The ASME B16.9 standard offers comprehensive specifications for the dimensions and characteristics of elbow fittings, including:
Nominal Pipe Size (NPS): Encompassing a vast range from 1/2 inch up to 48 inches, ensuring suitability for almost any pipeline size.
Wall Thickness (Schedule): A variety of wall thicknesses are available to match pipeline pressure ratings, such as Sch. 10s, Sch. 40, Sch. 80, Sch. 160, and more.
Center-to-End Distance: A critical measurement that dictates the necessary installation space within a system.
Bevel: Typically a 37.5-degree angle, precisely designed to facilitate robust butt welding connections.

Long Radius vs. Short Radius Elbows



The choice between a long radius and a short radius elbow is a pivotal design decision, directly impacting fluid dynamics and spatial requirements.

Long Radius Elbows



Long-radius elbows are a cornerstone in many piping systems. Their defining characteristic is a bend radius (measured from the elbow's center to the pipe's centerline) that is 1.5 times the nominal pipe size (NPS). For instance, a 4-inch long-radius elbow will boast a 6-inch bend radius. This extended, gentler curve is engineered to minimize pressure loss and reduce turbulence at the bend. Consequently, they are the preferred choice in applications where maintaining high fluid flow quality is paramount, such as in critical oil and gas pipelines, sophisticated chemical process lines, and expansive water transmission networks.
Key Feature: Radius of curvature (R) = 1.5 times the nominal pipe size (NPS) or outside diameter (D). (R = 1.5D).
Benefit: Provides a significantly smoother turn, which effectively reduces friction, minimizes turbulence, and lowers pressure drop.
Application: Generally favored when spatial constraints are not an issue and optimal flow efficiency is a critical design goal.

Short Radius Elbows



In contrast, the bending radius of a short-radius elbow is equal to the nominal size of the pipe (1.0D). A 4-inch short-radius elbow, for example, will have a 4-inch bending radius. This more compact design makes short-radius elbows ideally suited for installations in confined or spatially restricted areas. However, this sharper turn can introduce a greater degree of pressure loss and turbulence, necessitating careful consideration of these trade-offs during the selection process.
Key Feature: Radius of curvature (R) = 1.0 times the nominal pipe size (NPS) or outside diameter (D). (R = 1.0D).
Benefit: Results in a much sharper turn, making it significantly more compact and perfectly suited for tight spaces where a smaller bend is essential.
Consideration: This sharper turn typically increases turbulence and pressure drop within the fluid flow.

Elbow Angles



Beyond the radius, the angle of the elbow is equally crucial for precise pipeline routing.

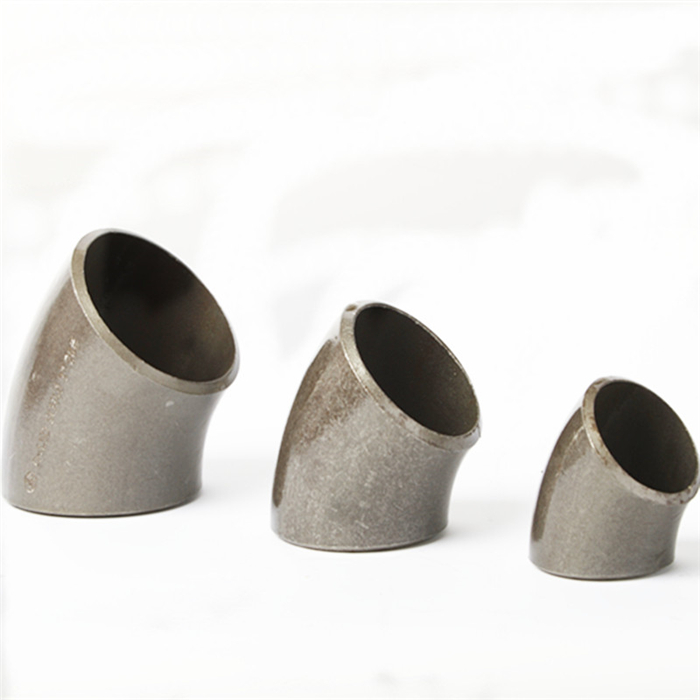

45 Degree Elbow



Turn Angle: Achieves a 45° directional deflection.
Application: Ideal for long-distance pipelines requiring subtle directional adjustments or when connecting two pipeline sections at a 45° angle. Primarily used for minor course corrections or to help mitigate fluid impact force.

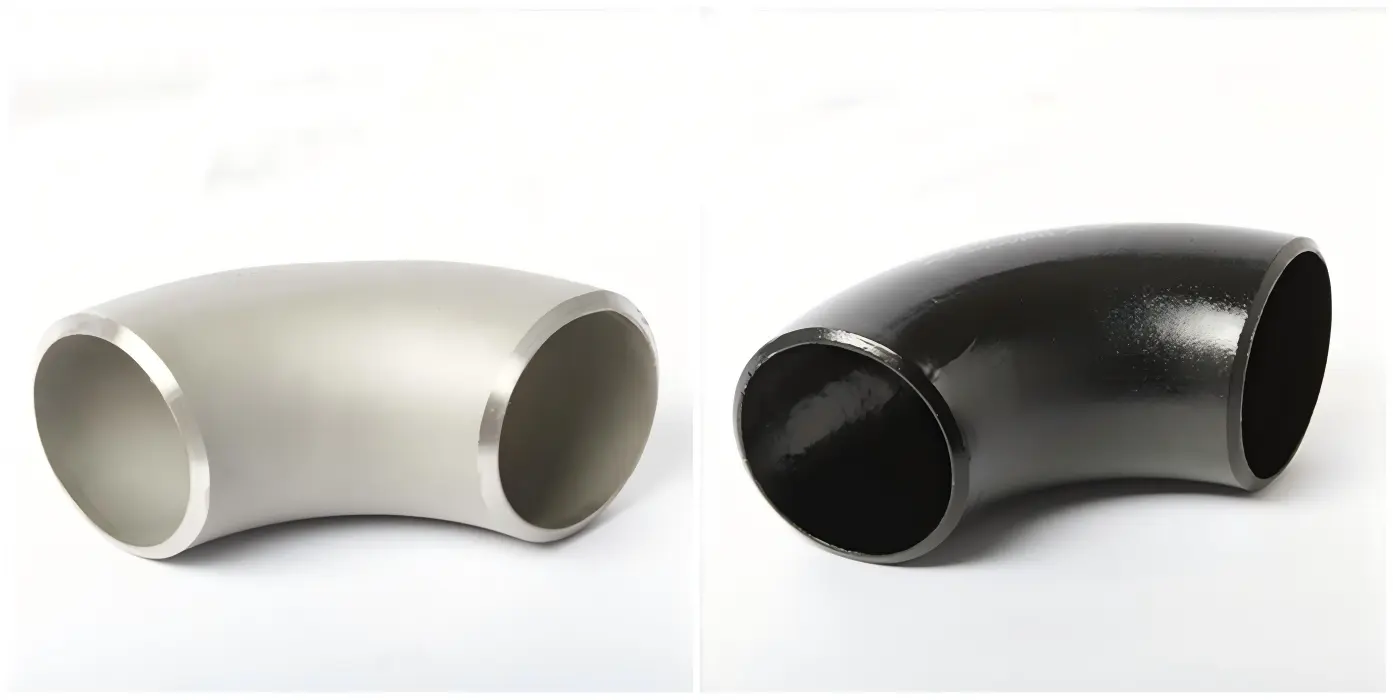

90 Degree Elbow

Turn Angle: Accomplishes a 90° right-angle turn.
Application: The most frequently utilized type, perfect for "vertical/horizontal direction switching" scenarios. Examples include pipelines transitioning from ground level to walls, or creating precise right-angle connections between equipment inlets and outlets.
ANSI/ASME B16.9 90-degree elbows are a fundamental steel pipe fitting for changing pipeline direction. Available in both long radius (LR) and short radius (SR variants), these fittings are supplied by us in various materials, including carbon steel, stainless steel, and aluminum, for both seamless and welded applications in overseas projects.



Grades of ASME B16.9 Buttweld Fittings

The material chosen for ASME B16.9 buttweld fittings is critical, dictated by the operating environment, conveyed medium, and required performance characteristics.

Carbon Steel Buttweld Fittings Grades:
ASTM A234 WPB / WPC, ASTM A420 WPL 3 / 6 / 9, A860 WPHY 42 / 46 / 52 / 56 / 65 / 70
Characteristics: High strength, toughness, and excellent pressure resistance, capable of withstanding impacts and temperature fluctuations. Economical and practical, widely used in petroleum, natural gas, chemical processing, power generation, and water treatment.

Alloy Steel Buttweld Fittings
Grades: A234 WP5 / WP9 / WP11 / WP12 / WP22 / WP 91 / WP92
Characteristics: Designed for elevated temperature and pressure applications, offering improved creep strength and corrosion resistance compared to standard carbon steel.

Stainless Steel Buttweld Fittings:
Grades: A403 WP304/304L/304H – WP316/316L – WP317 – WP310S – WP321 – WP347 – WP904L
Characteristics: Exceptional corrosion resistance, particularly important for handling corrosive media or operating in aggressive environments.

Duplex & Super Duplex Steel Buttweld Fittings:
Grades: A815 WPS32205/32750/31803/32760
Characteristics: Combines the best properties of austenitic and ferritic stainless steels, offering superior strength and excellent resistance to pitting and stress corrosion cracking.

Applications

• Oil and Gas Industry
• Chemical and Petrochemical Industry
• Power Generation
• Shipbuilding and Offshore Engineering
• Water Treatment and Environmental Engineering
• Metallurgy and Machinery Manufacturing



Stainless Steel Elbows:

When it comes to corrosive environments, ASME B16.9 stainless steel elbows are the go-to choice. Material selection is carefully matched to the operating conditions and the medium being transported:
304 Stainless Steel: The most universally adopted stainless steel grade, renowned for its excellent corrosion resistance and ease of machining. Perfect for general corrosive settings.
316 Stainless Steel: Enhanced with molybdenum, this grade offers superior resistance to chloride ion corrosion. It's the ideal choice for marine environments, demanding chemical processing, pharmaceutical applications, and other situations requiring heightened corrosion resistance. 316L is its low-carbon variant, offering enhanced weldability.
Other Stainless Steel Grades: For highly specialized requirements, options like 201, 202, 321, 904L, and duplex stainless steels (e.g., 2205, 2507) can be precisely selected to meet specific demands for temperature resistance, pressure tolerance, and extreme corrosion resistance.
Enhancing Performance: Stainless Steel Surface Treatment
To maximize the lifespan and integrity of stainless steel elbows, various surface treatments are employed:
Pickling and Passivation: This two-step process meticulously removes surface scale, rust, and impurities through acid pickling. This is followed by passivation, which forms a dense, protective oxide film, significantly boosting the elbow's inherent corrosion resistance.
Sandblasting: High-velocity sand particles are used to effectively remove surface scale and weld slag, creating a uniform, clean surface. This process provides an excellent foundation for subsequent coating, painting, or polishing applications, enhancing adhesion.
Polishing: Stainless steel elbows can undergo either mechanical or electrolytic polishing to refine their surface quality. Polishing results in a smooth, lustrous finish, making them suitable for applications where high aesthetics are crucial, such as in food processing, pharmaceutical manufacturing, and clean pipeline systems.

Carbon Steel Pipe Elbows

ASME B16.9 Carbon steel elbows are a staple in countless piping systems. Fabricated from high-quality carbon steel, they deliver an impressive combination of strength, toughness, and high-pressure resistance. These properties allow them to reliably withstand impacts and temperature fluctuations even under complex and demanding operating conditions. Offering a more economical and practical solution compared to stainless steel or alloy steel, carbon steel elbows are extensively utilized across industries like petroleum and natural gas, chemical processing, power generation, and water treatment.
Protecting the Core: Carbon Steel Surface Treatment
Given carbon steel's susceptibility to oxidation and rust, robust surface protection is paramount for butt weld elbows. Sandblasting and painting are commonly employed to significantly enhance their corrosion resistance and extend their service life.
Sandblasting: High-velocity abrasive blasting effectively removes surface scale, rust, and various contaminants. This crucial process creates a cleaner, rougher surface, which dramatically improves the adhesion of subsequent coatings. The result is superior overall corrosion resistance and extended coating longevity.
Painting: Following sandblasting, a protective paint layer is applied. Common options include black paint or epoxy paint. The primary purpose of painting is to enhance surface adhesion and form a barrier on the elbow's surface, isolating it from air and moisture to prevent oxidation. This provides essential corrosion protection during transportation and storage, as well as serving aesthetic and identification purposes to facilitate seamless engineering installation.

ANSI / ASME B16.9 Pipe Fittings

ANSI/ASME B16.9 Fittings (often simply called "B16.9 Fittings") refer to a broad category of butt-welded pipe fittings that conform to the rigorous ASME B16.9 standard. While elbows are the most widely used type, this standard also encompasses essential components like tees, reducers, and pipe caps.
The "butt weld" connection method is at the heart of these fittings. Both ends of the fitting are precisely designed with the same wall thickness as the pipeline. Through a complete welding process, they fuse seamlessly with the pipeline to form a continuous, sealed structure. This method offers the significant advantages of high strength and exceptional sealing integrity, enabling these fittings to reliably withstand harsh operating conditions, including high pressure, high temperature, and vibration.
For ASME B16.9 elbows, this means they not only meet the precise dimensional and quality requirements of the B16.9 standard but also guarantee the overall sealing integrity of the piping system through their butt-weld connections, effectively preventing medium leakage. This makes them absolutely indispensable in fields with extremely high demands for sealing and safety, such as petrochemicals, nuclear power, and aerospace. Furthermore, butt-welded connections provide greater strength than threaded or socket-welded joints, significantly reducing stress concentration at pipe-fitting interfaces and extending the overall service life of piping systems.

Elbow vs. Pipe Bend: Understanding the Distinction

In the realm of piping systems, both ASME B16.9 elbows and pipe bends are utilized to alter the flow direction of fluids. However, they possess distinct differences in their design, manufacturing, and application.

	Elbows	Pipe Bends
Manufacturing Method	Typically manufactured as standardized pipe fittings according to ASME B16.9 or other established standards. They are generally available in fixed angles such as 45°, 90°, and 180°.	Often fabricated in the field or custom-made to specific drawings. This allows for virtually any desired angle (e.g., 60°, 75°), offering greater customization.
Bend Radius	Come in fixed short radius (1D) and long radius (1.5D) types.	Characteristically feature much larger radii—often 3D, 5D, 10D, or even greater. This larger radius results in significantly lower fluid resistance, making them ideal for high-efficiency flow.
Applications	Preferred in space-constrained environments or standardized piping systems due to their ease of installation and consistent specifications.	Favored for long-distance pipelines or scenarios where minimizing flow resistance is paramount, such as in major oil and gas transmission lines.
Cost and Flexibility	Standardized production leads to generally lower costs.	Offer highly flexible fabrication to meet non-standard or bespoke requirements, but incur relatively higher manufacturing expenses due to their custom nature.

Safeguarding Your Investment: Packaging



The beveled edges at both ends of an elbow—where it connects to the pipes—are the most vulnerable points, prone to deformation from impact during transit and handling. Therefore, the critical first step in packaging is to precisely fit plastic protective caps onto these delicate ends. This ensures that the integrity of the bevels, crucial for a secure butt weld, remains uncompromised until installation.
