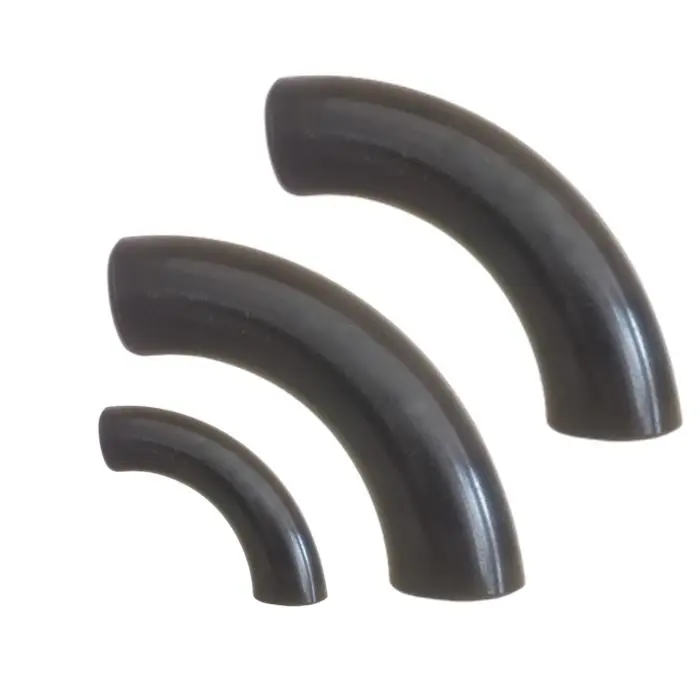

Carbon Steel Butt Weld Pipe Bends

Buttweld Steel Pipe Bend 3D 5D 8D

A butt weld steel pipe bend is a pipe that is used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend, it is similar to a pipe elbow, but a different pipe bend is longer than an elbow and is usually manufactured for the specific needs.

So depends on the different bending radius (R) to distinguish bend and an elbow.

In case the bending radius is more than 2 times of D (diameter), it is a pipe bend. Like 3D bend, 5D bend, 6D pipe bend, 8D pipe bend.
In case bending radius in 1D or 1.5D, it is an elbow. (short radius elbow 1D and long radius elbow 1.5D).

Buttweld Pipe Bending Radius: 3D Bend, 5D Bend, 6D, 8D and customized
Bending Degrees: 45°, 60°, 90°, 180° and customized

Key Features

• Premium-grade carbon steel construction
• Precision-engineered for optimal flow
• Excellent resistance to pressure and corrosion
• Seamless or welded options available
• Custom angles and dimensions upon request

Buttweld pipe bend types: 3D, 5D Pipe Bend:

3D and 5D bends are most commonly used in long pipelines, since they provide better efficiency in changing directions.

 3D Pipe Bend:

3D bend radius in 3D means the bend radius is 3 times of pipe outside diameter. For example, if a 3D bend is used in a 10-inch pipeline, the bend radius would be 30 inches.

5D Bend:

5D bend means the bend radius is 5 times of pipe nominal diameter. It provides better smoother performance to change the pipeline direction than a 3D bend.

The radius becomes bigger, the length of the pipe bend becomes bigger.

Large Diameter Pipe Bend / Bending

Steel pipe bending is usually required in large diameters in oil and gas pipelines, since it has better capacity to transport the material, and long pipelines will need different radii of pipe bends to be installed in complex conditions.

Materials & Grades

We offer products in multiple grades to meet diverse industry requirements:

• ASTM A234 WPB
• ASTM A420 WPL6
• API 5L Gr. B
• EN 10253-2 P235GH

Our expert metallurgists ensure each grade meets or exceeds international standards for strength, durability, and performance.

Surface Treatment

To enhance corrosion resistance and longevity, we provide various surface treatment options:

• Sandblasting
• Black paint coating
• Anti-rust oil
• Hot-dip galvanizing
• Custom coating solutions available upon request

Applications

Our Carbon Steel butt weld fPipe Bends find extensive use across industries:

• Oil and gas pipelines
• Petrochemical plants
• Power generation facilities
• Water treatment systems
• HVAC installations

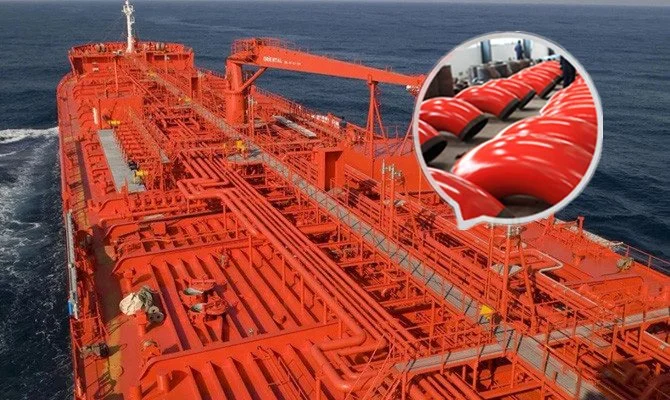

• Shipbuilding and marine applications

We supply steel pipe bend with below ranges:

Manufacturing standard: AISI B16.49, MSS-SP-75
Material: Carbon steel, Alloy steel, Stainless steel
Material standards: API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 & SOUR; ASTM A234 WPB, WPC, WP1, WP5, WP9, WP11, WP22, WP91; ASTM A403 304/304L, 316/316L.
Degree range: 45 degree, 60 degree, 90 degree and customized.
Wall thickness: SCH 10, SCH 40, SCH80
Coatings: Black paint, galvanized, epoxy coated, 3PE, FBE Quality Control

At Hebei Jinsheng, quality is our top priority:

• 100% visual and dimensional inspection
• Non-destructive testing (NDT) including ultrasonic and radiographic examinations
• Hydrostatic pressure testing
• Material composition analysis
• Third-party inspection services available upon request

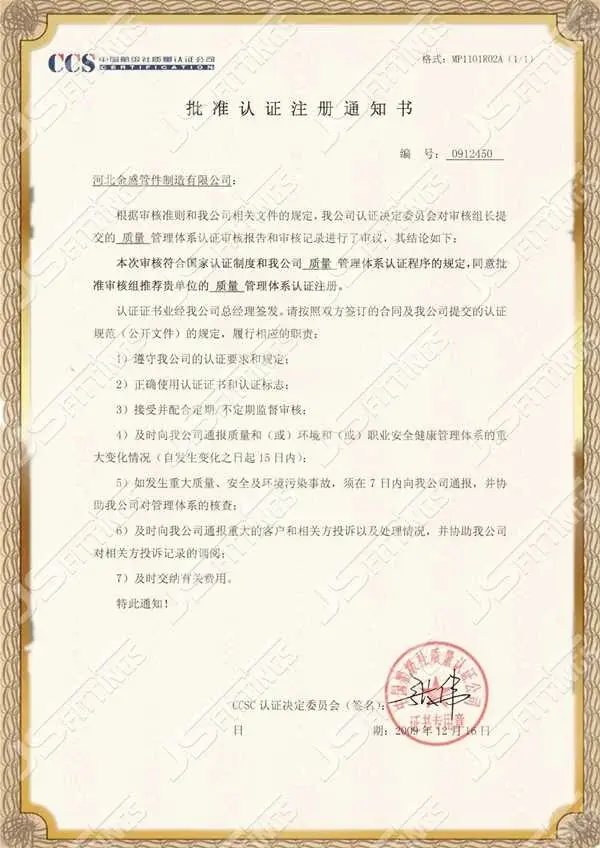

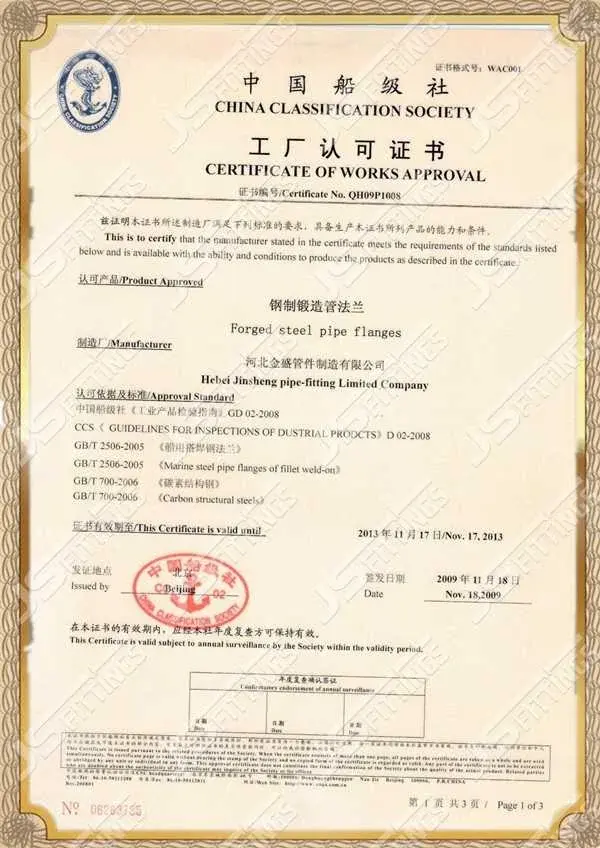

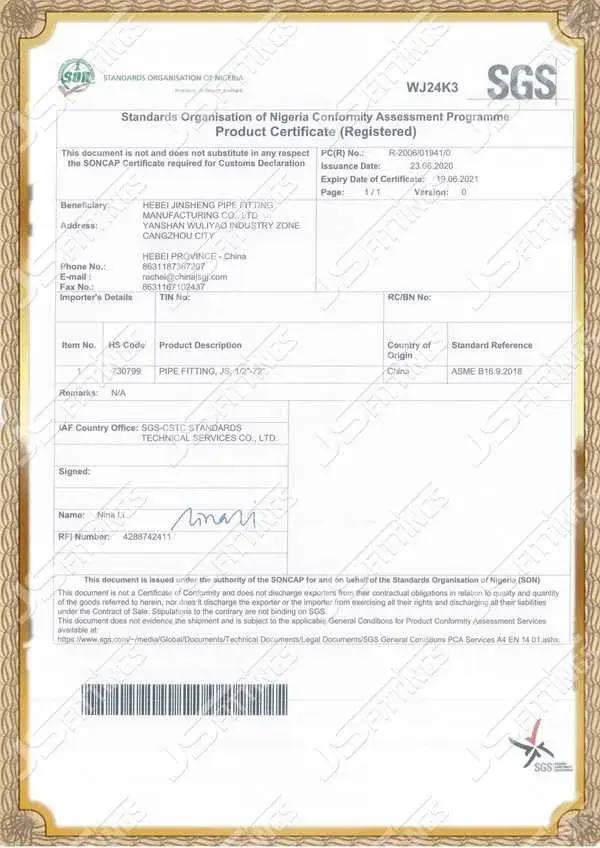

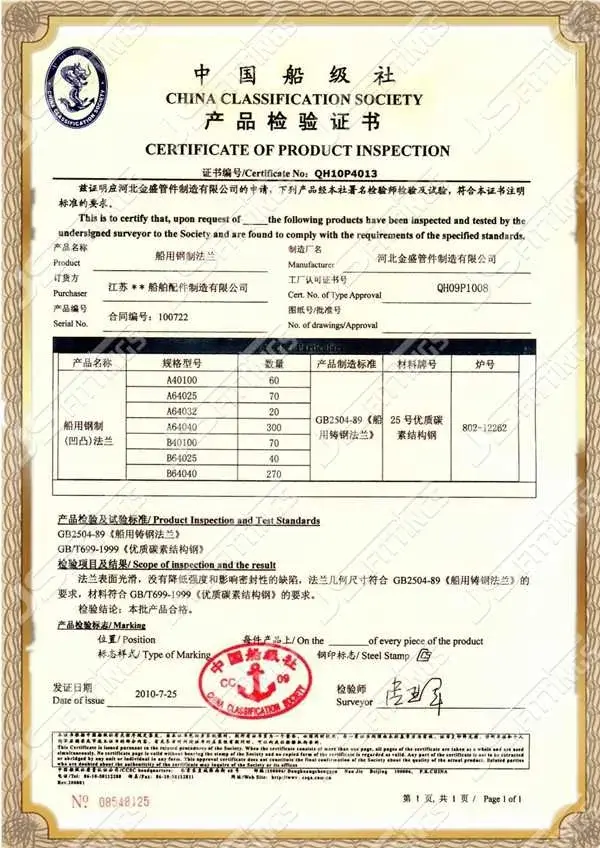

Certificates

Our products comply with rigorous international standards:

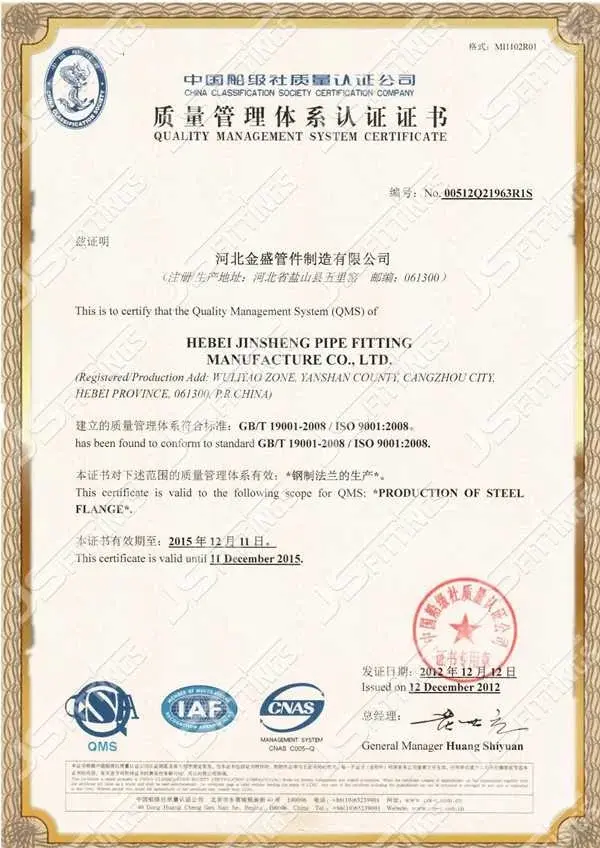

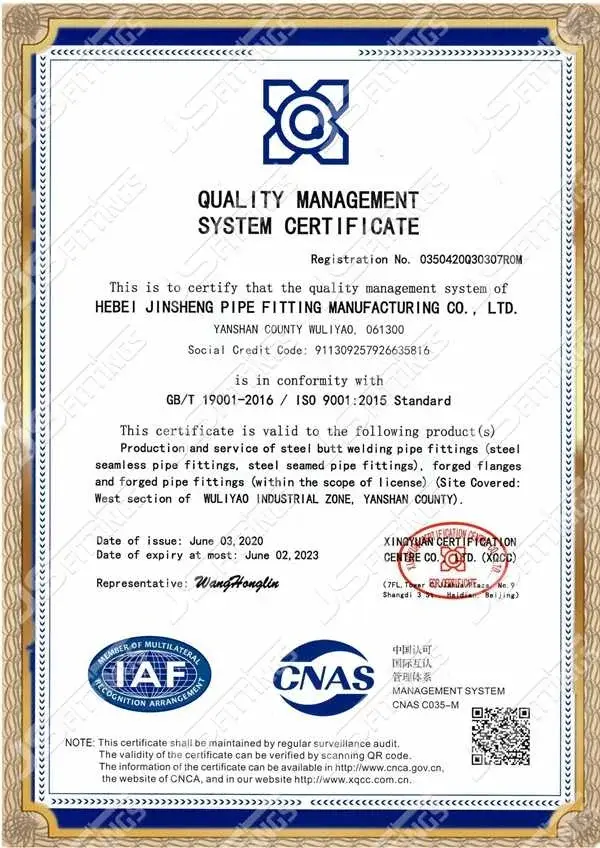

• ISO 9001:2015 Quality Management System

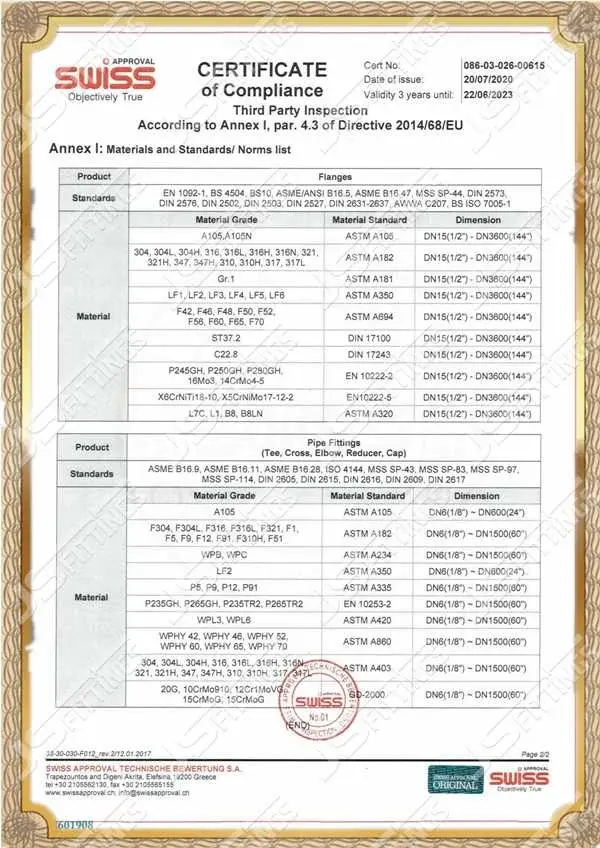

• CE Marking (PED 2014/68/EU)
• API 5L Certification

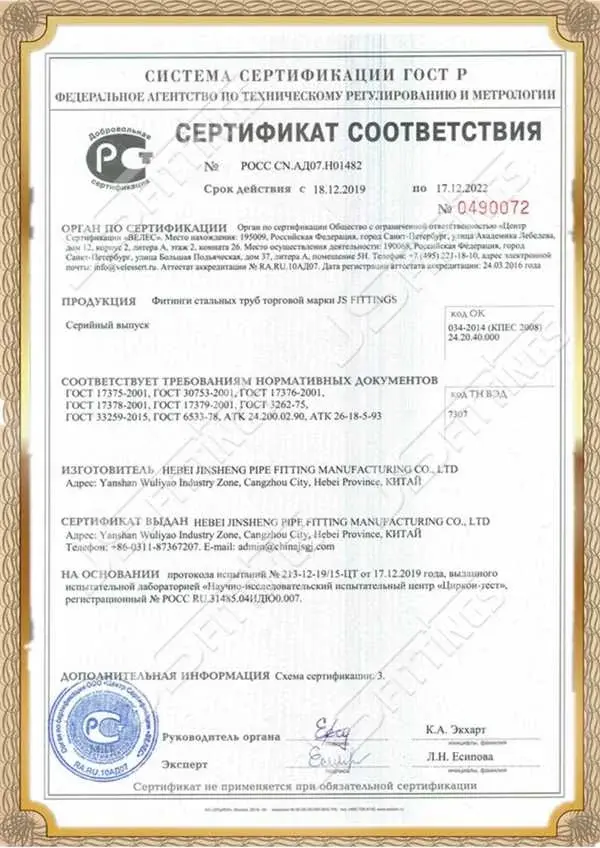

• GOST-R Certification
• Additional certifications available to meet specific project requirements

FAQ

Q: Where is your factory?

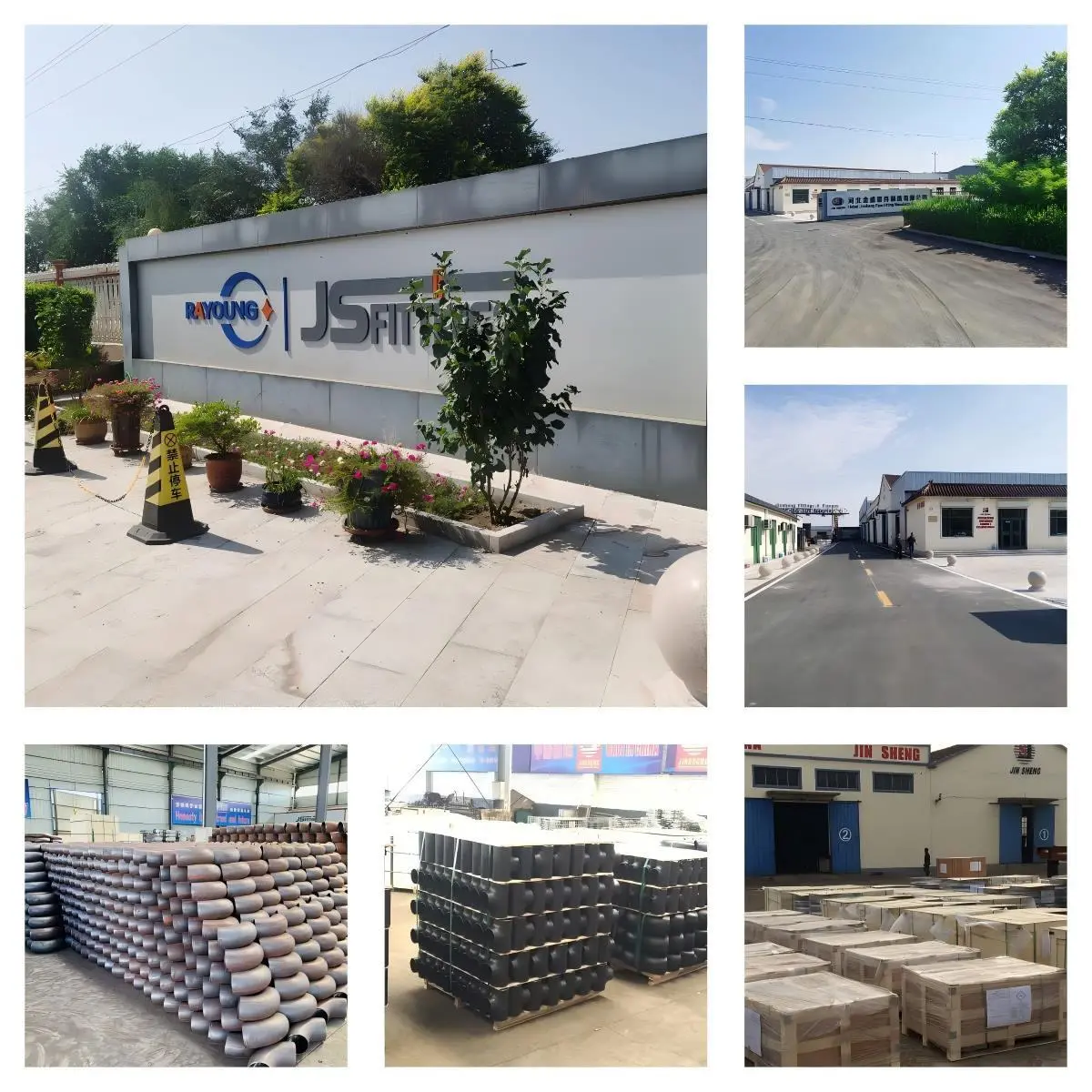

A: The factory of RAYOUNG is in the base of Chinese pipe fittings, Yanshan County, Cangzhou City, Hebei Province. Contact us to get the visit brochure.

Q: What is your annual production？
A: The output is 1000 tons/month, almost an export of 35-40 containers per month, annual output is more than 10000 tons.

Q: How can I get your price list?
A: The real price is based on the size, thickness, surface treatment, material, standard, quantity, and destination. If you don't have a purchase plan, we can supply you with a FOB price based on 1 container for reference.

Q: Do you have distributors in my country?
A: We have stable distributors in Russia, Thailand, the UAE, Nigeria, South Africa, Iran, and other countries. If you can't import by yourself, we will be glad to introduce you to our customers.

Q: What is the warranty time of your products?
A: The warranty period for regular carbon steel products is 1 year, and the normal use time is over 3 years. The warranty period for special products can reach more than 5 years.

Q: What is the minimum order quantity for the products?
A: We typically accommodate orders starting from 100 pieces, but can discuss smaller quantities for special requirements.

Q: Can you provide custom sizes or materials not listed?
A: Absolutely! Our manufacturing capabilities allow for customization. Contact us with your specific needs.

Q: What is the typical lead time for bulk orders?
A: Lead times vary based on order size and complexity, but we generally aim for 2-4 weeks for standard items.

Q: Do you offer rush delivery options?
A: Yes, we can expedite orders for urgent project timelines. Please inquire about our rush service options.

Contact Us

Ready to elevate your piping system with our premium Carbon Steel Buttweld Pipe Bends? Our dedicated team is here to assist you:

• Email: admin@chinajsgj.com
• Tel/WhatsApp: +8618003119682

JSFITTINGS supplies Buttweld Pipe Fittings with competitive price and urgent delivery.
Material standard ASTM A234 WPB, WP5, WP9, WP11, WP22. Dimensions up to 48 inch.
