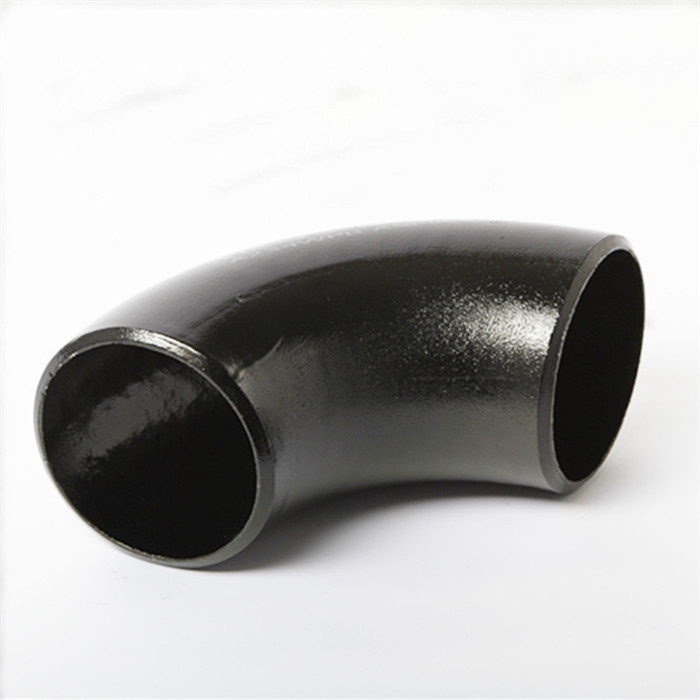

 Short Radius Buttweld Elbow Fittings: Premium Quality for Industrial Applications

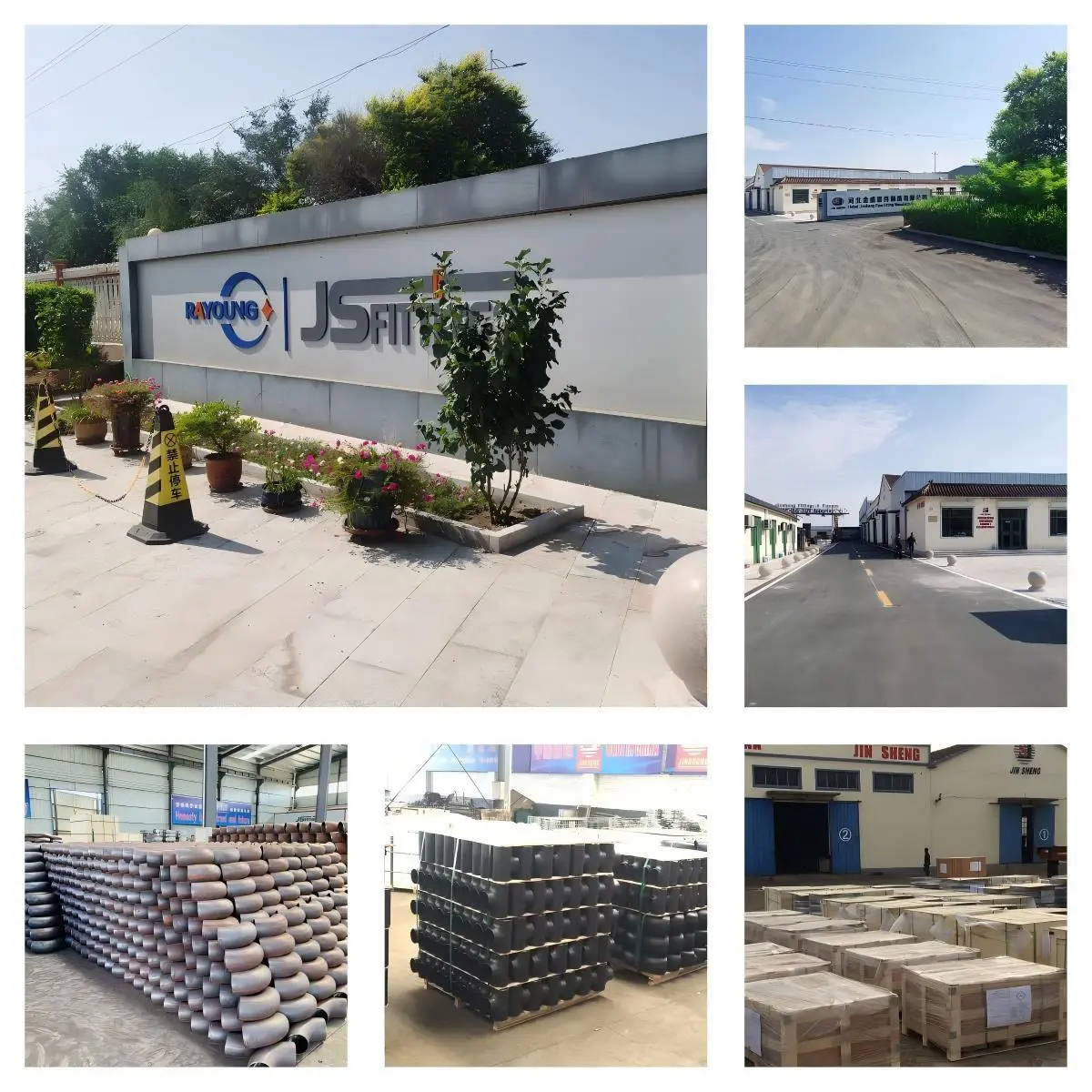

As a leading manufacturer and supplier of short radius buttweld elbow fittings, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd brings over 39 years of expertise to your industrial projects. Our state-of-the-art 35,000 m² facility houses advanced production lines, ensuring top-quality fittings that meet rigorous industry standards. With our ISO 9001, CE, and PETROBRAS certifications, you can trust in the durability and reliability of our products for your most demanding applications.

Key Features

1. Precision Engineering: Our elbow fittings are manufactured to exact specifications, ensuring a perfect fit and optimal flow characteristics in your piping systems.
2. Durability: Constructed from high-grade materials, these fittings offer excellent resistance to pressure, temperature, and corrosion.
3. Versatility: Suitable for a wide range of industrial applications, from oil and gas to petrochemicals and beyond.
4. Cost-Effective: Our efficient production methods allow us to offer competitive pricing without compromising on quality.
5. Compliance: All fittings meet or exceed industry standards, including ASME B16.9 and ASTM specifications.

Product Types

We offer a comprehensive range of the products to suit your specific project needs:

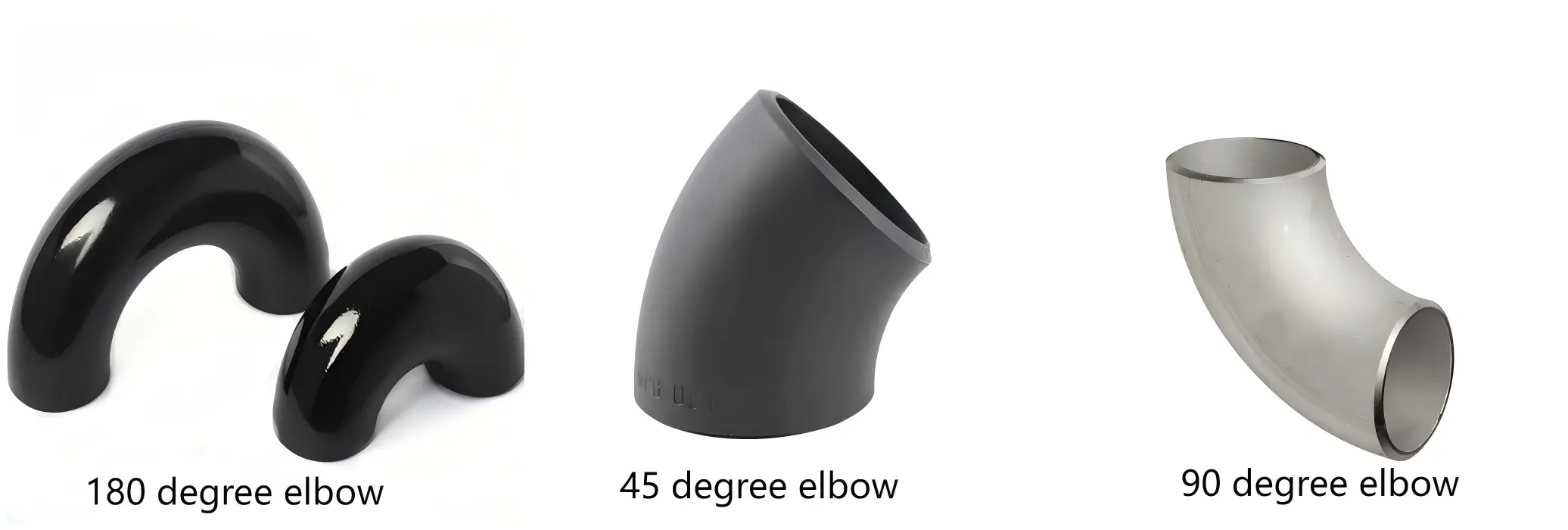

• 45° Short Radius Elbows
• 90° Short Radius Elbows
• 180° Short Radius Elbows

Available in various sizes from 1/2" to 48" NPS (Nominal Pipe Size), our elbows provide flexibility for diverse piping configurations.

Materials & Grades

Our products are available in a variety of materials to meet your project requirements:

• Carbon Steel: ASTM A234 WPB
• Stainless Steel: ASTM A403 WP304/304L, WP316/316L
• Alloy Steel: ASTM A234 WP11, WP22, WP91
• Duplex Steel: ASTM A815 UNS S31803, S32205

Custom material options are available upon request to meet your specific needs.

Surface Treatment

To enhance durability and performance, we offer various surface treatment options:

• Pickling and Passivation
• Anti-Rust Oil Coating
• Galvanization
• FBE (Fusion Bonded Epoxy) Coating

Our eco-friendly sandblasting systems and 100-meter automated painting lines ensure consistent, high-quality finishes.

Applications

Our short radius buttweld elbow fittings excel in numerous industrial sectors:

• Oil and Gas Pipelines
• Petrochemical Plants
• Power Generation Facilities
• Water Treatment Systems
• Industrial Manufacturing
• Shipbuilding
• Construction Projects

Packaging & Delivery

We understand the importance of protecting your investment during transit. Our products are carefully packaged to ensure they reach you in perfect condition:

• Standard export-worthy wooden cases or pallets
• Customized packaging available for special requirements
• Plastic end caps to protect fitting ends

With our dedicated logistics network, we guarantee timely deliveries worldwide, even for bulk orders.

Quality Control

At Hebei Jinsheng, quality is our top priority. Our rigorous quality control process includes:

• Material traceability from raw stock to finished product
• Dimensional checks at multiple production stages
• Non-destructive testing (NDT) including radiographic and ultrasonic inspections
• Hydrostatic pressure testing
• Final visual and measurement inspections

Certificates

Our commitment to quality is backed by internationally recognized certifications:

• ISO 9001:2015 Quality Management System
• CE Marking (Pressure Equipment Directive 2014/68/EU)
• GOST-R Certification
• API 5L Certification
• PETROBRAS Certification

These certifications ensure that our products meet the highest industry standards and regulatory requirements.

FAQ

Q: What is the difference between short radius and long radius elbow fittings?
A: Short radius elbows have a tighter bend radius, typically 1x the nominal pipe size, while long radius elbows have a gentler curve at 1.5x the nominal pipe size. Short radius elbows are ideal for space-constrained installations.

Q: Can you provide custom sizes or materials for the products?
A: Absolutely! We specialize in meeting unique project requirements. Contact our technical team to discuss your custom needs.

Q: What is the typical lead time for bulk orders of the products?
A: Lead times vary based on quantity and specifications, but our efficient production lines generally allow for 2-4 weeks for standard orders. Rush options are available for urgent needs.

Q: Do you offer technical support for installation or material selection?
A: Yes, our experienced engineering team is available to provide technical guidance, including material recommendations and CAD drawings for complex projects.

Contact Us

Ready to elevate your piping systems with our premium short radius buttweld elbow fittings? Our team is standing by to assist you with product selection, technical inquiries, or custom orders.

Email: admin@chinajsgj.com
Phone: +8618003119682

Trust Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd for all your product needs. With our industry-leading manufacturing capabilities, stringent quality control, and commitment to customer satisfaction, we're your ideal partner for successful industrial projects. Contact us today to experience the Jinsheng difference!
