For an industrial project to be successful, it is important to know the differences between the ASTM A105 Blind Flange and ANSI B16.5 Flange requirements. ASTM A105 sets the standards for the materials used in carbon steel flanges, while ANSI B16.5 sets the criteria for size and pressure ratings. When making flanges, these two standards function together. ASTM A105 looks at the qualities of the materials, while ANSI B16.5 sets the rules for how the flanges should be made. This basic distinction affects how companies buy things, make sure quality, and make sure projects are done correctly in many different industries.
Understanding ASTM A105 Material Specification for Carbon Steel Flanges
For industrial uses, ASTM A105 is the most important material specification for carbon steel forged flanges. This standard lays out exact chemical composition standards, such as a maximum carbon content of 0.35%, a manganese percentage of 0.60–1.05%, and a sulfur level of 0.040%.
Under ASTM A105, the minimum tensile strength must be 485 MPa (70,000 psi) and the minimum yield strength must be 250 MPa (36,000 psi). These standards make guarantee that pressure vessels and pipe fittings work reliably.
Heat treatment requirements are very important for meeting ASTM A105 standards. To have the best grain structure and mechanical qualities, manufacturers need to normalize forgings that weigh more than 4540 kg (10,000 lbs). This procedure makes things more resistant to corrosion and lasts longer in tough conditions.
Quality control steps include impact testing at certain temperatures to make sure the material is tough enough for the job. Chemical analysis verification and dimensional inspection show that the entire manufacturing process meets ASTM A105 criteria.
ASTM A105 carbon steel flanges are the most reliable choice for important projects that need consistent materials and a proven chemical makeup.
ANSI B16.5 Dimensional Standards and Pressure Rating Classifications
ANSI B16.5 sets strict size criteria for pipe flanges and flanged fittings in a range of pressure classes. The standard provides pressure ratings from Class 150 to Class 2500, which means it can be used for a wide range of industrial needs, from low-pressure systems to high-pressure systems.
ANSI B16.5 has several standards for flange dimensions, such as:
- For typical sizes, the outside diameter can be off by up to ±1.6mm.
- Specifications for bolt hole diameter with an accuracy of ±0.8mm
- Standards for raised face height are 1.6mm ±0.4mm.
- Calculating the thickness of a flange based on its pressure rating
- Measurements of the bolt circle diameter to make sure the gasket seals properly
The pressure-temperature ratings are very important for system engineers when they are designing things. Class 150 flanges can take pressures of up to 19.3 bar at 38°C, whereas Class 600 applications can manage pressures of up to 99.2 bar at the same temperature. These ratings help you choose the right flange for the way you want to use it.
The dimensions of the gasket groove are based on exact ANSI B16.5 standards, which guarantee the best sealing performance. The standard says that raised face flanges must have a serrated finish with a roughness of 3.2–6.3 μm Ra, which helps make sure that the gasket makes good contact.

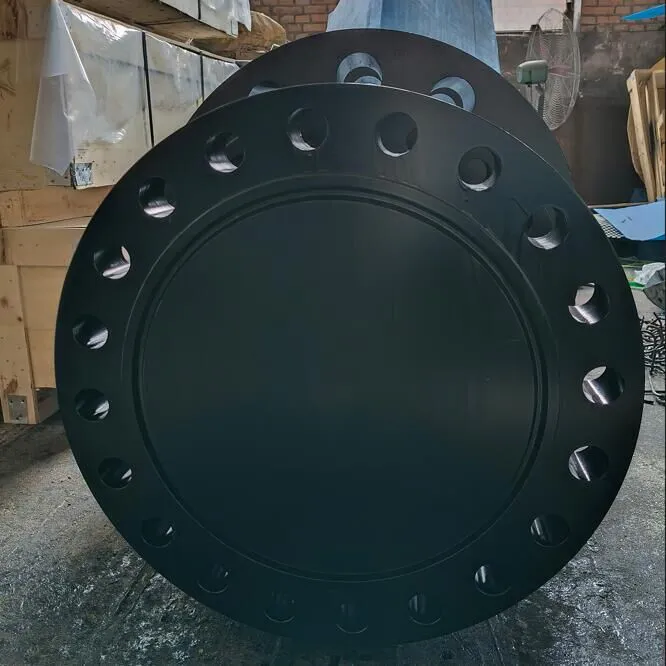

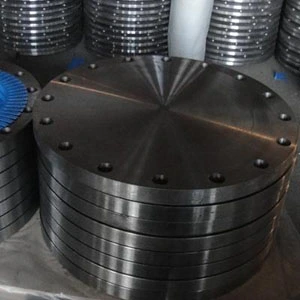

In applications where strength and durability are key, such as high-pressure or high-temperature systems, ASTM A105 Blind Flange is often used, as it meets the necessary requirements for both dimensional accuracy and pressure tolerance. ANSI B16.5 compliant flanges, including the ASTM A105 Blind Flange, are the best choice if you need consistent dimensions for seamless system integration and predictable pressure ratings.
Manufacturing Process Differences and Quality Control Standards
The different ways of making ASTM A105 and ANSI B16.5 flanges show that they have different standard focuses. ASTM A105 puts more emphasis on how well materials are processed, while ANSI B16.5 puts more emphasis on how well they can contain pressure and how accurate their dimensions are.
The first step in the ASTM A105 manufacturing process is carefully choosing and melting the raw materials. Electric arc furnace operations keep a close eye on the chemical makeup of the materials, and then ladle refining is used to get the chemistry just right. To have the best grain structure, forging needs to be done at temperatures between 950 and 1200°C.
ASTM A105 includes the following heat treatment protocols:
- Normalizing cycles at 900–950°C to relieve tension
- Controlled cooling rates to create a homogeneous microstructure
- Tempering processes as necessary to improve toughness
- Testing that doesn't damage the object, like ultrasonic testing
ANSI B16.5 manufacturing is all on making things with precision machining and checking their dimensions. Computer numerical control (CNC) machining centers make sure that the position of bolt holes is accurate to within ±0.5mm. Surface finish processes get the roughness levels just right for the best gasket performance.
As part of quality assurance testing, hydrostatic pressure testing is done at 1.5 times the design pressure rating. Using calibrated measurement tools that can be traced back to national standards, dimensional inspection processes check that ANSI B16.5 requirements are met.
Some advanced manufacturing plants, like the ones at JS FITTINGS, have automated painting production lines and controls for the environment. Water-based eco-friendly paint solutions defend against corrosion better than other types of paint and are also good for the environment.
If you need full quality control that includes both the qualities of the materials and the correctness of the dimensions, then manufacturers who follow both ASTM A105 and ANSI B16.5 standards are the best choice.
Application Scenarios and Industry-Specific Requirements
Different industries need different flange characteristics because of safety, regulatory, and operating considerations. Engineers can choose the right specifications for the best project results by knowing these application cases.
Most petrochemical uses need materials that meet ASTM A105 standards and ANSI B16.5 pressure ratings. When processing hydrocarbons in a refinery, the equipment needs to be able to resist corrosion and hold pressure. Class 300 and Class 600 flanges are used a lot in the refining of crude oil and the transmission of natural gas.
Power plants use high-pressure steam applications that need strong materials. ASTM A105 Blind Flange carbon steel is a cost-effective option for temperatures up to 400°C. ANSI B16.5 Class 900 and Class 1500 grades, on the other hand, can handle higher pressures in boiler feedwater systems.
Water treatment infrastructure projects focus on making things that are resistant to corrosion over time and making sure that everything is the same size. In municipal water distribution networks, ANSI B16.5 Class 150 flanges made of ASTM A105 material operate well. Epoxy coating and other surface treatments can help things last longer in harsh settings.
Chemical processing must follow a number of international rules. ASME, GOST, EN, and JIS certifications make guarantee that projects are accepted all across the world. There are a lot of different materials to choose from, including stainless steel options, that can handle corrosive media.
If you need flanges for certain industries with proven track records, it's best to choose manufacturers that have worked in a lot of different fields. This will assure the best performance and compliance.
Cost Analysis and Long-Term Value Considerations
When it comes to choosing flanges, money is a big concern, especially for big projects with hundreds or thousands of connections. When procurement teams know the total cost of ownership, they can make smart choices that balance short-term expenses with long-term performance.
ASTM A105 material costs are still competitive with other steel grades, and it has solid mechanical qualities. Carbon steel prices are stable, which makes it easier to manage a project's budget. The price changes are usually less than 15% over a year. Volume procurement benefits become important for orders of more than 100 items.
The way that manufacturing affects prices changes depending on how much is made:
- Small batch manufacture (10 to 50 pieces): Prices are normal and delivery takes 4 to 6 weeks.
- For medium-sized orders (51 to 200 items), there is a chance to lower costs by 8 to 12%.
- Big projects (more than 200 pieces): You can get savings of 15% to 20% on large orders.
- Extra 10–15% for custom specifications
Life-cycle cost analysis shows that making things of high quality is quite valuable. Compared to lower-quality options, premium flanges with the right heat treatment and dimensional correctness need 30–40% less maintenance. The costs of downtime that were avoided make the initial investment in approved suppliers worth it.
Standardized ANSI B16.5 measurements help with managing inventory. Distributors keep fewer amounts of goods on hand while meeting the needs of a wide range of customers. Interchangeability cuts down on the expenses of buying things in an emergency and the time it takes to finish a job.
Surface treatments provide value by extending the time between services. In moderate conditions, sandblasting and anti-rust oil treatment might extend two to three years to the suggested replacement period. In harsh situations, epoxy coating systems can protect for 5 to 7 years.
Investing in high-quality ASTM A105 flanges made to ANSI B16.5 standards is the best way to get the most value out of your project if you require cost-effective solutions that will work well for a long time.
JS FITTINGS Advantages for ASTM A105 Blind Flange Manufacturing
- Four Decades of Manufacturing Excellence: JS FITTINGS has been making carbon steel flanges for more than 40 years, so they know exactly what ASTM A105 Blind Flange material and ANSI B16.5 dimensional standards demand.
- Advanced Production Skills: Four cutting-edge manufacturing lines with automated painting systems make sure that the quality is always high while still keeping lead times for both standard and custom flange specifications competitive.
- Full Certification Portfolio: ISO 9001, CE, and GOST-R certifications show that you are committed to quality management systems. Following ASME, ANSI, EN, BS, SANS, DIN, and JIS standards makes sure that your project will be accepted around the world.
- Different Material Choices: JS FITTINGS has more than just normal ASTM A105 carbon steel. They also have stainless steel and alloy steel options that can be used in corrosive or high-temperature settings.
- Customization Excellence: We offer specialized surface treatment options like sandblasting, anti-rust oil, water-based eco-friendly paint, and epoxy coating systems that protect against corrosion in tough situations.
- Experience in the global market: A proven track record of serving clients across the Middle East, South America, Europe, and Asia shows that you understand the different rules and regulations that apply to different countries.
- Quality Control Protocol: Before shipping, every flange is checked using strict procedures that include verifying chemical analysis, measuring dimensions, and testing pressure.
- Technical Support Services: The engineering staff gives advice on how to use the application, suggests materials, and creates unique designs to make sure the flange works best in certain settings.
- Pricing that is competitive: Volume manufacturing capabilities and efficient production methods lead to cost-effective solutions that don't lower quality or compliance standards.
- Managing the supply chain in a reliable way: Strategic planning of inventory and manufacturing schedules helps keep product availability steady for urgent project needs while cutting down on delivery delays.
Trusted ASTM A105 Blind Flange Manufacturer for Your Critical Applications
Selecting the right flange specifications requires balancing material performance, dimensional accuracy, and long-term reliability. JS FITTINGS combines four decades of manufacturing expertise with advanced production capabilities to deliver superior ASTM A105 blind flanges that exceed industry expectations.
Our comprehensive approach integrates ASTM A105 material excellence with ANSI B16.5 dimensional precision. Advanced quality control systems ensure every flange meets stringent chemical composition requirements while maintaining precise dimensional tolerances. This dual compliance approach reduces project risk and ensures seamless system integration.
Manufacturing capabilities include automated production lines with environmental controls, delivering consistent quality across diverse order sizes. Whether your project requires standard configurations or custom specifications with specialized surface treatments, our technical team provides expert guidance throughout the procurement process.
Global certification compliance including ISO 9001, CE, GOST-R, and multiple international standards ensures project acceptance worldwide. Our established supply chain serves clients across continents, providing reliable delivery schedules that support critical project timelines.
As a trusted ASTM A105 blind flange supplier, JS FITTINGS commits to delivering value through competitive pricing, superior quality, and responsive customer service. Our technical expertise helps optimize flange selection for specific applications while maintaining compliance with safety and performance requirements.
Partner with JS FITTINGS for your next project and experience the difference that four decades of manufacturing excellence makes. Our team stands ready to discuss your requirements and provide customized solutions that meet your exact specifications. Contact us at admin@chinajsgj.com to discuss your ASTM A105 blind flange requirements and discover how our expertise can enhance your project success.
Conclusion
The distinction between ASTM A105 and ANSI B16.5 standards reflects the complementary nature of material specifications and dimensional requirements in flange manufacturing. ASTM A105 ensures reliable carbon steel properties through controlled chemical composition and heat treatment protocols, while ANSI B16.5 provides standardized dimensions and pressure ratings for system compatibility.
Understanding these differences enables informed procurement decisions that balance performance requirements with project economics. Quality manufacturers like JS FITTINGS integrate both standards to deliver flanges that meet demanding industrial applications while maintaining cost-effectiveness and reliable supply chain performance.
Successful flange selection requires considering application-specific requirements, long-term maintenance costs, and supplier capabilities. Partnering with experienced manufacturers ensures access to technical expertise, quality assurance protocols, and customization options that optimize project outcomes across diverse industrial sectors.
References
1. American Society for Testing and Materials. "Standard Specification for Carbon Steel Forgings for Piping Applications." ASTM A105/A105M-19.
2. American National Standards Institute. "Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard." ANSI/ASME B16.5-2020.
3. Harvey, J.F. "Pressure Vessel Design: Nuclear and Chemical Applications." Van Nostrand Reinhold Engineering Series, 2nd Edition.
4. Bickford, J.H. "Gaskets and Gasketed Joints." Marcel Dekker Mechanical Engineering Series, 1998.
5. Singh, K.P. "Mechanical Design of Heat Exchangers and Pressure Vessel Components." Arcturus Publishers, 2004.
6. Ellison, T.K. "Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair." CRC Press, 2019.
