Butt Welding Steel: Metallurgy & Procedure?

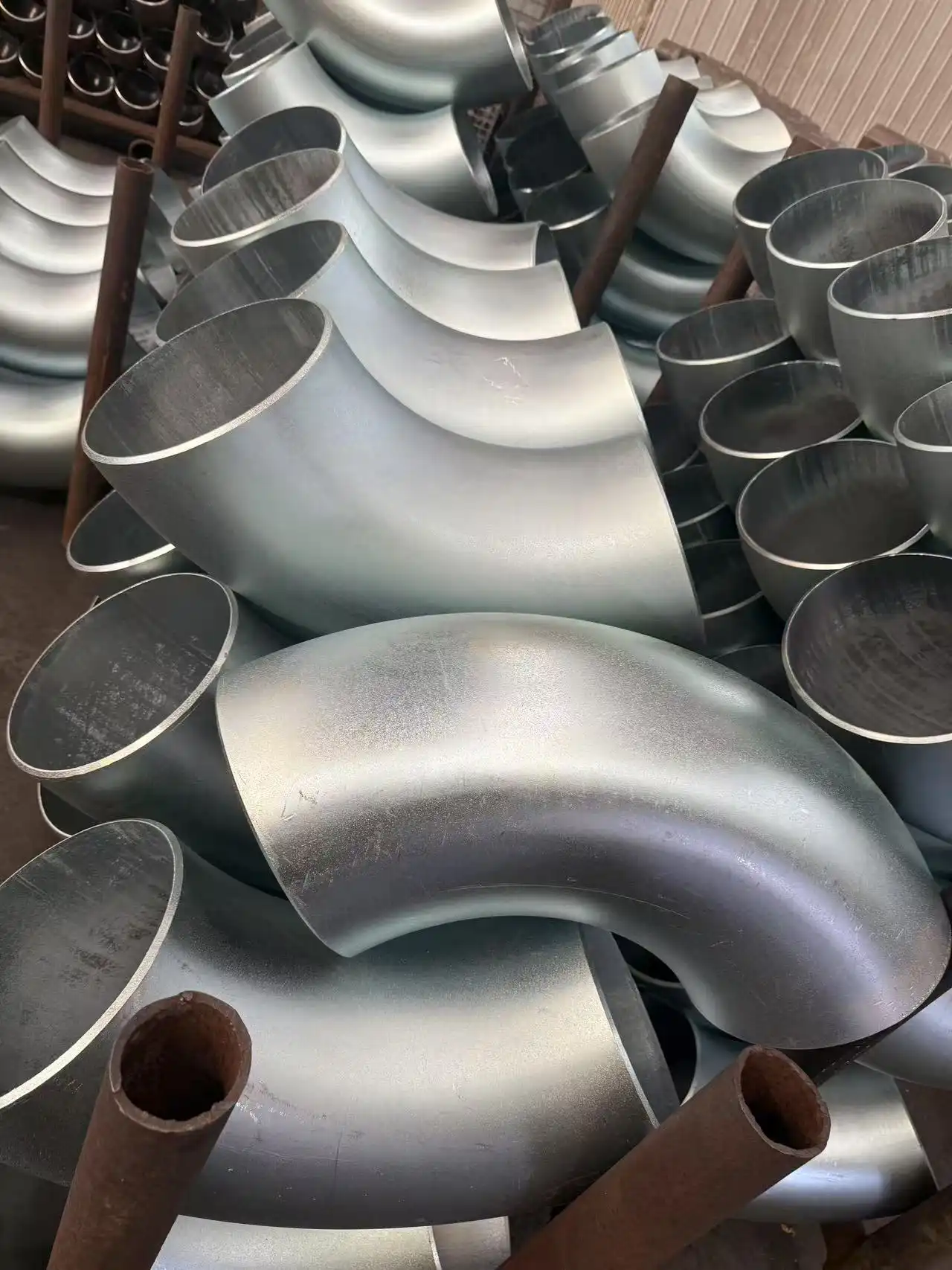

Steel Butt Weld Fittings speaks to a crucial joining strategy in mechanical channeling frameworks, where two pipe segments are adjusted end-to-end and intertwined through controlled warm application. This welding strategy makes consistent associations fundamental for high-pressure applications over oil and gas, chemical preparing, and control era businesses. The metallurgical standards administering butt welds decide joint quality, erosion resistance, and long-term execution. Understanding appropriate methods guarantees ideal comes about when introducing Steel Butt Weld Fittings in basic framework ventures. Present day fabricating measures like ASME B16.9 and EN 10253 give specialized details for accomplishing reliable, solid welds that meet rigid industry requirements.

Understanding Steel Metallurgy in Butt Welding

Heat Affected Zone Characteristics

The heat affected zone (HAZ) in butt welded joints experiences complex metallurgical transformations that directly impact the performance of Steel Butt Weld Fittings. During welding, temperatures ranging from 200°C to 1500°C create distinct microstructural regions within the base metal. The grain structure undergoes refinement in the fine-grained HAZ while experiencing coarsening in regions closer to the fusion line. Carbon steel grades like ASTM A234 WPB demonstrate predictable HAZ behavior, with controlled cooling rates preventing harmful carbide precipitation. Alloy steel compositions including WP11 and WP22 require preheating to 150-300°C to minimize thermal stress and reduce hardness variations. The HAZ width typically extends 2-5mm from the weld centerline, depending on heat input and base material thickness. Professional welders monitor interpass temperatures to maintain optimal microstructural development throughout multi-pass welding procedures.

Phase Transformations During Welding

Steel undergoes critical phase transformations during butt welding that determine final mechanical properties of Steel Butt Weld Fittings. Austenite formation occurs above 723°C, followed by controlled transformation to ferrite, pearlite, or martensite depending on cooling rates. Stainless steel grades like ASTM A403 WP316L maintain austenitic structure throughout the welding cycle, providing excellent corrosion resistance and toughness. Carbon content significantly influences transformation kinetics, with low-carbon steels exhibiting minimal hardening potential compared to medium-carbon variants. Cooling rate control becomes crucial for preventing brittle martensite formation in the HAZ. Proper post-weld heat treatment at 580-620°C relieves residual stresses while optimizing mechanical properties. Advanced metallurgical analysis using optical microscopy and hardness testing validates successful phase transformation control in critical applications.

Weld Metal Composition Control

Achieving ideal weld metal composition requires cautious thought of base fabric chemistry and filler metal choice for Steel Butt Weld Fittings. The weakening proportion between base metal and consumables ordinarily ranges from 20-40%, straightforwardly influencing last weld chemistry. Carbon relocation from base metal into the weld pool can modify mechanical properties if not appropriately overseen through consumable choice. Duplex stainless steel grades like UNS S32205 request exact ferrite-austenite adjust, ordinarily 40-60% ferrite substance for ideal erosion resistance. Nickel amalgam compositions counting Inconel 625 keep up chemical homogeneity through controlled warm input and interpass temperature administration. Sulfur and phosphorus substance must stay underneath 0.020% to avoid hot splitting vulnerability. Present day welding methods indicate nitty gritty consumable prerequisites guaranteeing reliable weld metal properties over generation batches.

Essential Welding Procedures and Standards

Pre-Welding Preparation Requirements

Proper pre-welding preparation establishes the foundation for successful butt welding operations with Steel Butt Weld Fittings. Surface preparation begins with mechanical grinding to remove mill scale, oxide layers, and contaminants within 25mm of the joint area. Bevel preparation follows precise angular specifications, typically 30-37.5° included angle for full penetration welds in piping applications. Root face dimensions require careful control, usually 1.6-3.2mm depending on material thickness and welding process selection. Fit-up tolerances demand gap consistency within ±0.8mm to prevent incomplete penetration defects. Cleaning procedures utilize approved solvents followed by wire brushing to achieve clean, bare metal surfaces. Preheating temperatures vary by material grade, with carbon steels requiring 150-200°C and alloy steels demanding 200-350°C minimum. Tack welding procedures using qualified consumables maintain proper alignment throughout the welding sequence.

Welding Process Parameter Optimization

Welding process parameters directly influence penetration, fusion characteristics, and overall quality of Steel Butt Weld Fittings. Current selection balances penetration depth with heat input control, typically 100-150 amps for 6mm wall thickness applications. Voltage settings affect arc characteristics and weld bead profile, usually 22-28 volts for GMAW processes in structural applications. Travel speed optimization prevents excessive heat buildup while ensuring adequate fusion, commonly 8-15 cm/minute for manual operations. Shielding gas composition varies by base material, with 75% argon/25% CO2 mixtures providing excellent results for carbon steel applications. Wire feed speed coordination with current settings maintains stable arc conditions throughout the welding process. Interpass temperature control between 150-250°C prevents excessive grain growth while maintaining proper mechanical properties. Multi-pass sequences follow prescribed patterns ensuring complete fusion and minimal residual stress development.

Post-Weld Treatment Protocols

Post-weld treatment protocols ensure optimal performance characteristics in Steel Butt Weld Fittings through controlled thermal processing and quality verification. Stress relief heat treatment at 580-650°C eliminates welding-induced residual stresses that could compromise service performance. Holding times typically range from 1-2 hours per 25mm of thickness, followed by controlled cooling at maximum 275°C/hour. Austenitic stainless steel joints may require solution annealing at 1050-1120°C to restore corrosion resistance properties. Post-weld heat treatment atmospheres must remain neutral or slightly reducing to prevent surface oxidation. Cooling procedures follow established curves preventing thermal shock or rapid phase transformations. Non-destructive testing including radiographic and ultrasonic examination validates internal soundness and compliance with acceptance criteria. Dimensional verification ensures proper fit-up with adjacent piping components throughout system assembly.

Quality Control and Industry Standards

Non-Destructive Testing Methods

Non-destructive testing methods provide comprehensive evaluation of weld quality in Steel Butt Weld Fittings without compromising structural integrity. Radiographic testing reveals internal discontinuities including porosity, lack of fusion, and slag inclusions with excellent sensitivity. Digital radiography systems offer immediate results with enhanced defect characterization capabilities compared to conventional film techniques. Ultrasonic testing employs high-frequency sound waves to detect subsurface defects with precise depth and size determination. Phased array ultrasonic technology provides detailed cross-sectional imaging of weld geometry and defect morphology. Liquid penetrant testing identifies surface-breaking discontinuities including cracks and lack of fusion conditions. Magnetic particle testing applies to ferromagnetic materials, revealing surface and near-surface defects with high reliability. Visual testing remains the primary quality control method, evaluating weld appearance, dimensions, and surface conditions according to established acceptance criteria.

Dimensional Verification Standards

Dimensional verification ensures Steel Butt Weld Fittings meet precise geometric requirements for proper system integration and performance. Wall thickness measurements utilize ultrasonic thickness gauges calibrated to specific material velocities with ±0.1mm accuracy. Outside diameter verification employs pi-tapes or circumferential measuring devices ensuring compliance with specified tolerances. Ovality measurements prevent excessive deformation that could compromise flow characteristics or create stress concentration points. Angular measurements verify proper orientation for directional fittings including elbows and tees using precision angle measuring instruments. Surface profile evaluation quantifies reinforcement height and width ensuring compliance with code requirements. Straightness verification prevents misalignment issues during system assembly using optical alignment equipment. Documentation procedures require complete measurement records with operator identification and calibration verification for all measuring instruments.

Certification and Compliance Documentation

Certification and compliance documentation approve that Steel Butt Weld Fittings meet pertinent industry guidelines and client details. Fabric test certificates give chemical composition confirmation, mechanical property information, and warm treatment records for traceability. Welding strategy determinations detail qualified parameters counting consumables, strategies, and post-weld treatment prerequisites. Welder capability records illustrate administrator competency through standardized testing programs taking after AWS or ASME necessities. Quality control documentation incorporates review reports, test comes about, and remedial activity records for total traceability. Third-party assessment certificates give autonomous confirmation of compliance with universal measures counting ISO 9001 and CE prerequisites. Hydrostatic test certificates approve weight judgment at 1.5 times plan weight with recorded hold periods. Bundling and shipping documentation guarantees legitimate dealing with and capacity conditions amid transportation to extend sites.

Conclusion

Butt welding steel requires comprehensive understanding of metallurgical principles, precise procedural control, and rigorous quality assurance to achieve optimal performance in industrial applications. The integration of proper heat affected zone management, controlled phase transformations, and systematic welding procedures ensures reliable joint integrity throughout service life. Modern Steel Butt Weld Fittings benefit from advanced manufacturing techniques and stringent quality control protocols that meet demanding industry requirements. JS FITTINGS' 42-year expertise in manufacturing high-quality steel butt-weld pipe fittings demonstrates commitment to excellence through continuous process improvement and adherence to international standards including ISO 9001, CE, and GOST-R certifications.

FAQ

1. What are the key metallurgical considerations for butt welding different steel grades?

Metallurgical considerations vary significantly between steel grades, with carbon content being the primary factor affecting weldability of Steel Butt Weld Fittings. Carbon steels require controlled cooling rates to prevent martensite formation, while alloy steels demand specific preheating temperatures and post-weld heat treatment protocols. Stainless steel grades maintain austenitic structure but require careful heat input control to prevent carbide precipitation and maintain corrosion resistance properties throughout the welded joint.

2. How do ASME B16.9 and EN 10253 standards impact butt welding procedures?

These standards establish precise dimensional tolerances, material specifications, and testing requirements for Steel Butt Weld Fittings that directly influence welding procedure development. ASME B16.9 specifies wall thickness calculations and pressure ratings, while EN 10253 defines European compliance requirements including material grades and surface finish specifications. Both standards require documented welding procedures with qualified parameters ensuring consistent quality across production batches.

3. What quality control measures ensure reliable performance in critical applications?

Quality control encompasses comprehensive non-destructive testing including radiographic, ultrasonic, and liquid penetrant examination of Steel Butt Weld Fittings according to established acceptance criteria. Dimensional verification, mechanical property testing, and third-party inspection services provide additional assurance. Advanced NDT techniques combined with documented traceability systems ensure compliance with industry standards and customer specifications for critical service applications.

4. How do surface treatments affect the welding process and final performance?

Surface treatments including pickling, passivation, and protective coatings significantly impact both weldability and service performance of Steel Butt Weld Fittings. Pre-welding surface preparation removes contamination that could cause porosity or fusion defects, while post-weld treatments enhance corrosion resistance and mechanical properties. Proper surface treatment selection depends on material grade, service environment, and specific application requirements within industrial piping systems.
