ASME B16.9 LR Elbows

In pipeline system construction and maintenance, ASME B16.9 elbow serve as critical fittings for altering fluid flow direction. Their quality and specification compliance directly impact the safety and stability of the entire system. The ASME B16.9 standard, recognized globally as the authoritative specification for pipe fitting manufacturing, provides unified standards for elbow production, design, and application.

ASME B16.9 steel pipe elbows are among the most prevalent butt-welded fittings in industrial piping, primarily tasked with redirecting the flow within a pipeline. Catering to diverse operational needs, they are broadly categorized into Long Radius Elbows and Short Radius Elbows. Manufactured in strict accordance with the ASME B16.9 standard, they guarantee precise dimensional accuracy and uncompromising safety performance.

ASME B16.9 Elbow Fitting Specifications



The ASME B16.9 standard offers comprehensive specifications for the dimensions and characteristics of elbow fittings, including:
Nominal Pipe Size (NPS): Encompassing a vast range from 1/2 inch up to 48 inches, ensuring suitability for almost any pipeline size.
Wall Thickness (Schedule): A variety of wall thicknesses are available to match pipeline pressure ratings, such as Sch. 10s, Sch. 40, Sch. 80, Sch. 160, and more.
Center-to-End Distance: A critical measurement that dictates the necessary installation space within a system.
Bevel: Typically a 37.5-degree angle, precisely designed to facilitate robust butt welding connections.

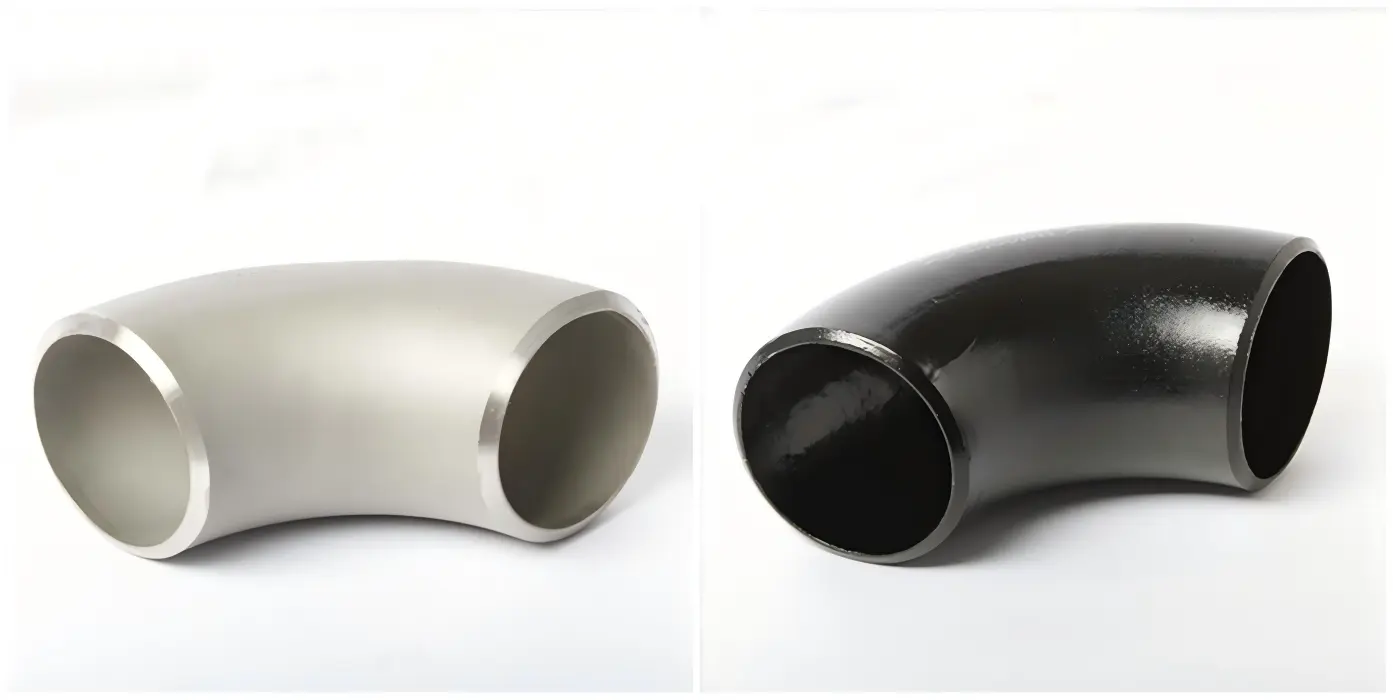

Long Radius Elbows



Long-radius elbows are a cornerstone in many piping systems. Their defining characteristic is a bend radius (measured from the elbow's center to the pipe's centerline) that is 1.5 times the nominal pipe size (NPS). For instance, a 4-inch long-radius elbow will boast a 6-inch bend radius. This extended, gentler curve is engineered to minimize pressure loss and reduce turbulence at the bend. Consequently, they are the preferred choice in applications where maintaining high fluid flow quality is paramount, such as in critical oil and gas pipelines, sophisticated chemical process lines, and expansive water transmission networks.
Key Feature: Radius of curvature (R) = 1.5 times the nominal pipe size (NPS) or outside diameter (D). (R = 1.5D).
Benefit: Provides a significantly smoother turn, which effectively reduces friction, minimizes turbulence, and lowers pressure drop.
Application: Generally favored when spatial constraints are not an issue and optimal flow efficiency is a critical design goal.

Elbow Angles



Beyond the radius, the angle of the elbow is equally crucial for precise pipeline routing.

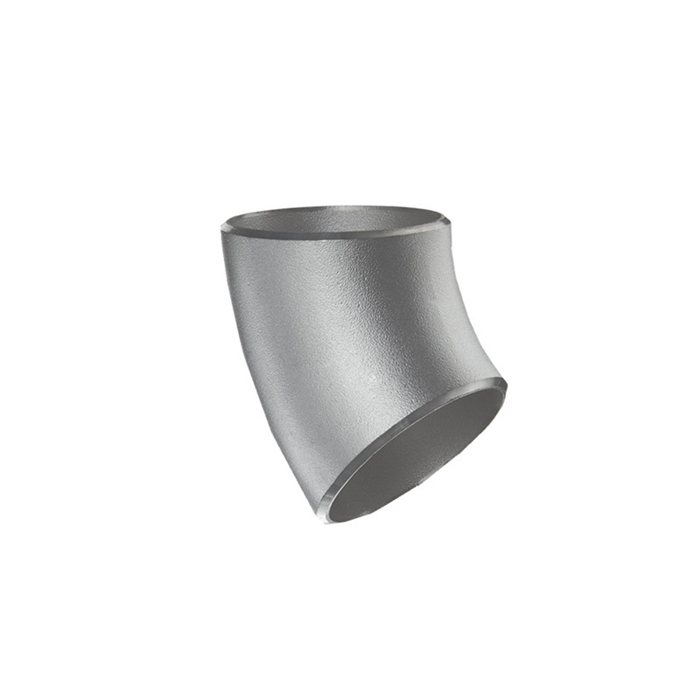

45 Degree Elbow



Turn Angle: Achieves a 45° directional deflection.
Application: Ideal for long-distance pipelines requiring subtle directional adjustments or when connecting two pipeline sections at a 45° angle. Primarily used for minor course corrections or to help mitigate fluid impact force.

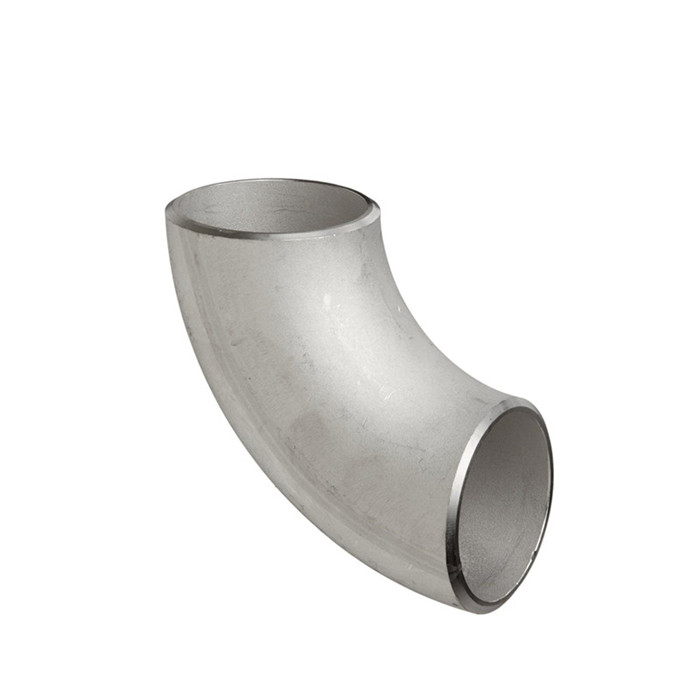

90 Degree Elbow

Turn Angle: Accomplishes a 90° right-angle turn.
Application: The most frequently utilized type, perfect for "vertical/horizontal direction switching" scenarios. Examples include pipelines transitioning from ground level to walls, or creating precise right-angle connections between equipment inlets and outlets.
ANSI/ASME B16.9 90-degree elbows are a fundamental steel pipe fitting for changing pipeline direction. Available in both long  radius (LR) and short radius (SR variants), these fittings are supplied by us in various materials, including carbon steel, stainless steel, and aluminum, for both seamless and welded applications in overseas projects.

Elbow vs. Pipe Bend: Understanding the Distinction

In the realm of piping systems, both ASME B16.9 elbows and pipe bends are utilized to alter the flow direction of fluids. However, they possess distinct differences in their design, manufacturing, and application.

	Elbows	Pipe Bends
Manufacturing Method	Typically manufactured as standardized pipe fittings according to ASME B16.9 or other established standards. They are generally available in fixed angles such as 45°, 90°, and 180°.	Often fabricated in the field or custom-made to specific drawings. This allows for virtually any desired angle (e.g., 60°, 75°), offering greater customization.
Bend Radius	Come in fixed short radius (1D) and long radius (1.5D) types.	Characteristically feature much larger radii—often 3D, 5D, 10D, or even greater. This larger radius results in significantly lower fluid resistance, making them ideal for high-efficiency flow.
Applications	Preferred in space-constrained environments or standardized piping systems due to their ease of installation and consistent specifications.	Favored for long-distance pipelines or scenarios where minimizing flow resistance is paramount, such as in major oil and gas transmission lines.
Cost and Flexibility	Standardized production leads to generally lower costs.	Offer highly flexible fabrication to meet non-standard or bespoke requirements, but incur relatively higher manufacturing expenses due to their custom nature.

Safeguarding Your Investment: Packaging



The beveled edges at both ends of an elbow—where it connects to the pipes—are the most vulnerable points, prone to deformation from impact during transit and handling. Therefore, the critical first step in packaging is to precisely fit plastic protective caps onto these delicate ends. This ensures that the integrity of the bevels, crucial for a secure butt weld, remains uncompromised until installation.
