Butt Weld Steel: Material Properties of A234 WPB?

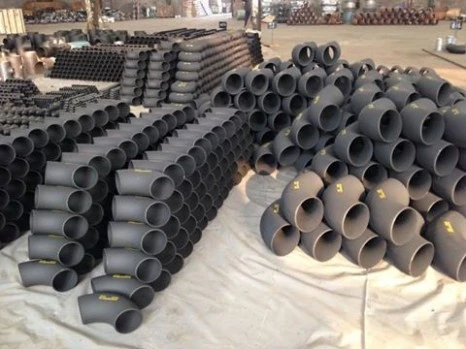

ASTM A234 WPB speaks to the most broadly indicated fabric review for carbon steel pipe fittings in mechanical applications around the world. This fashioned carbon steel offers remarkable mechanical properties, weldability, and cost-effectiveness that make it perfect for direct temperature and weight administrations. But weld steel pipe fittings made from A234 WPB give dependable execution in water, oil, gas, and steam frameworks working up to 400°F. The material's adjusted chemical composition guarantees fabulous formability amid fabricating whereas keeping up auxiliary judgment beneath operational stresses. Understanding the comprehensive fabric properties, counting pliable quality, surrender characteristics, affect sturdiness, and temperature restrictions, empowers engineers to make educated choices for basic channeling applications over petrochemical, control era, and mechanical preparing sectors.

Chemical Composition and Metallurgical Properties

Carbon Content and Alloying Elements

A234 WPB carbon steel contains carefully controlled carbon substance extending from 0.30% greatest, giving ideal adjust between quality and weldability. The manganese substance, regularly 0.29-1.06%, upgrades hardenability and quality whereas progressing deoxidation amid steel generation. Silicon substance of 0.10% least acts as a deoxidizer and contributes to quality improvement in but weld steel pipe fittings. Phosphorus and sulfur substance are entirely restricted to 0.035% most extreme each to anticipate brittleness and hot breaking amid welding operations. The nonappearance of deliberateness alloying components past these essential constituents guarantees great weldability without requiring extraordinary methods or preheating for most applications. This composition gives reliable mechanical properties and solid execution over different fabricating forms whereas keeping up cost-effectiveness for large-scale mechanical applications.

Microstructural Characteristics and Grain Structure

The microstructure of A234 WPB consists primarily of ferrite and pearlite phases that provide excellent strength-to-ductility balance in but weld steel pipe fittings applications. Normalized heat treatment during manufacturing refines grain size and homogenizes the microstructure, ensuring consistent mechanical properties throughout the fitting cross-section. Fine-grained microstructures enhance toughness and improve resistance to brittle fracture at lower temperatures. Pearlite content directly correlates with carbon content and significantly influences yield strength and ultimate tensile strength values. The ferritic matrix provides excellent ductility and formability during manufacturing operations while maintaining adequate strength for pressure-containing applications. Proper control of cooling rates during heat treatment prevents formation of undesirable phases such as bainite or martensite that could compromise toughness and weldability characteristics essential for reliable field installation.

Heat Treatment Response and Thermal Processing

A234 WPB exhibits excellent response to various heat treatment processes, making it ideal for manufacturing complex geometries in but weld steel pipe fittings. Normalizing treatment at temperatures between 1600-1700°F refines grain structure and relieves manufacturing stresses while optimizing mechanical properties. The material's low hardenability prevents formation of brittle phases during air cooling, eliminating the need for controlled cooling or tempering operations in most applications. Stress relief annealing at temperatures around 1100-1200°F effectively reduces residual stresses from forming operations without significantly affecting strength properties. The thermal expansion coefficient of approximately 6.5 x 10⁻⁶ in/in/°F must be considered in system design to accommodate thermal growth during operation. Excellent thermal conductivity facilitates uniform heating during welding operations and reduces the risk of thermal stress cracking in complex fitting geometries.

Mechanical Properties and Performance Characteristics

Tensile Strength and Yield Characteristics

A234 WPB illustrates remarkable pliable properties with least extreme pliable quality of 60,000 PSI and least surrender quality of 35,000 PSI, giving considerable security edges for weight vessel applications. The fabric shows amazing strain solidifying characteristics that improve extreme quality whereas keeping up satisfactory ductility for shaping operations. Prolongation values ordinarily surpass 22% in 2-inch gage length, showing predominant ductility that obliges push concentrations without fragile disappointment. But weld steel pipe fittings fabricated from this fabric dependably handle working weights calculated utilizing ASME B31.1 and B31.3 code passable stretch values. The reliable stress-strain relationship over different item shapes guarantees unsurprising execution in both inactive and energetic stacking conditions. Weakness quality characteristics make A234 WPB reasonable for applications including cyclic stacking, in spite of the fact that legitimate push investigation remains fundamental for high-cycle applications.

Impact Toughness and Temperature Limitations

Charpy V-notch impact testing demonstrates that A234 WPB maintains adequate toughness down to approximately 20°F, making it suitable for most ambient temperature applications. The ductile-to-brittle transition temperature varies with section thickness, heat treatment condition, and stress concentration factors present in but weld steel pipe fittings geometries. Impact energy values typically exceed 15 ft-lbs at room temperature, indicating excellent resistance to brittle fracture under normal operating conditions. Temperature limitations for pressure service extend from -20°F to 400°F, though specific applications may require impact testing verification for lower temperature service. The material's toughness characteristics improve with finer grain sizes achieved through proper heat treatment and controlled cooling practices during manufacturing. Stress concentration factors at geometric discontinuities require careful consideration in fracture-critical applications where impact loading conditions may occur.

Creep Resistance and High-Temperature Properties

While A234 WPB is primarily intended for moderate temperature service, its creep resistance characteristics enable reliable performance at temperatures up to 400°F for extended periods. The material exhibits minimal creep deformation under typical operating stresses within its specified temperature range, ensuring dimensional stability of but weld steel pipe fittings throughout their design life. Stress rupture testing demonstrates adequate long-term strength retention at elevated temperatures within the allowable service range. Oxidation resistance at moderate temperatures prevents significant scaling or surface degradation during normal operation. The coefficient of thermal expansion remains relatively constant across the allowable temperature range, simplifying thermal stress calculations for piping system design. Time-temperature-stress relationships for A234 WPB have been extensively characterized, providing reliable design data for applications requiring long-term exposure to elevated temperatures within the material's service envelope.

Manufacturing and Welding Considerations

Formability and Manufacturing Processes

A234 WPB shows amazing formability characteristics that empower generation of complex geometries in but weld steel pipe fittings without compromising mechanical properties. The material's adjusted composition gives ideal stream stretch amid hot shaping operations whereas keeping up satisfactory ductility for cold shaping applications. Least twist sweep calculations based on fabric thickness and shaping temperature guarantee crack-free shaping operations. Work solidifying amid cold shaping increments abdicate quality locally but may require stretch help strengthening for dimensional steadiness in accuracy applications. The fabric reacts well to different shaping forms counting squeezing, turning, and hydroforming, empowering cost-effective generation of standard and custom fitting setups. Springback characteristics are unsurprising and well-documented, permitting precise tooling plan for dimensional exactness in high-volume fabricating operations.

Welding Procedures and Joint Design

A234 WPB demonstrates excellent weldability with most common welding processes including SMAW, GMAW, GTAW, and SAW methods used for installing but weld steel pipe fittings. Preheating requirements are minimal for sections up to 1.5 inches thick, though thicker sections may benefit from preheat to 200-300°F to reduce cooling rates and prevent hydrogen cracking. Carbon equivalent calculations confirm low hardenability, eliminating concerns about hard zone formation in heat-affected zones adjacent to welds. Filler metal selection typically utilizes AWS E70XX electrodes or equivalent wire grades that provide matching strength properties and chemical composition. Post-weld heat treatment requirements depend on service conditions and code requirements, though stress relief is generally recommended for pressure vessel applications. Weld joint efficiency factors of 100% can be achieved with proper welding procedures and non-destructive examination, maximizing allowable design stresses.

Quality Control and Testing Requirements

Manufacturing quality control for A234 WPB but weld steel pipe fittings incorporates comprehensive testing protocols including chemical analysis, mechanical property verification, and dimensional inspection procedures. Heat treatment verification through hardness testing ensures proper metallurgical condition throughout the fitting cross-section. Non-destructive testing methods including liquid penetrant, magnetic particle, and ultrasonic examination detect surface and subsurface discontinuities that could compromise service performance. Hydrostatic testing validates pressure boundary integrity and confirms structural adequacy under design conditions. Material traceability systems maintain complete documentation from raw material certification through final inspection, ensuring compliance with applicable codes and specifications. Statistical process control methods monitor key quality parameters and enable continuous improvement of manufacturing processes while maintaining consistent product quality and reliability for critical applications.

Conclusion

ASTM A234 WPB carbon steel gives remarkable fabric properties that make it the favored choice for direct temperature and weight channeling applications. Its adjusted composition, fabulous mechanical properties, predominant weldability, and cost-effectiveness convey dependable execution over different mechanical divisions. The comprehensive understanding of fabric characteristics empowers engineers to plan secure, effective frameworks that meet requesting operational necessities whereas keeping up financial viability.

Premium A234 WPB Butt Weld Steel Pipe Fittings Manufacturer | JS FITTINGS

With 42 a long time of skill, JS FITTING's 35,000 m² office houses 4 progressed generation lines, conveying 30,000 tons every year of ASTM/EN-compliant fittings, ribs, and channels. Our ISO 9001, CE, and PETROBRAS certifications approve uncompromising quality for oil & gas, shipbuilding, and development divisions. We commit to giving competitively estimated, high-performance but weld steel pipe fittings that meet the most requesting mechanical applications through persistent handle change. Require A234 WPB fittings with ensured fabric properties and certified quality? Our metallurgy specialists guarantee each fitting meets correct determinations with full fabric traceability. Contact our technical team at admin@chinajsgj.com for premium A234 WPB solutions that exceed industry standards.
