Buttweld Elbows: Types of Angles and Uses?

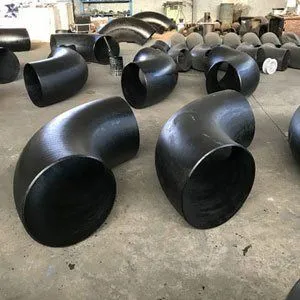

Industrial piping systems rely heavily on Buttweld Elbow fittings to navigate directional changes while maintaining flow integrity and structural strength. These essential components are manufactured in various angular configurations, each serving specific engineering requirements across diverse industrial applications. The most common Buttweld Elbow angles include 90-degree, 45-degree, and 30-degree variations, with specialized configurations available for unique piping challenges. Understanding the relationship between angle selection and intended use becomes crucial for optimizing system performance, minimizing pressure losses, and ensuring long-term operational reliability. Each angular configuration offers distinct hydraulic characteristics and installation advantages, making proper selection essential for engineers designing efficient piping networks in petrochemical, power generation, and manufacturing facilities.

Standard Angle Configurations in Buttweld Elbows

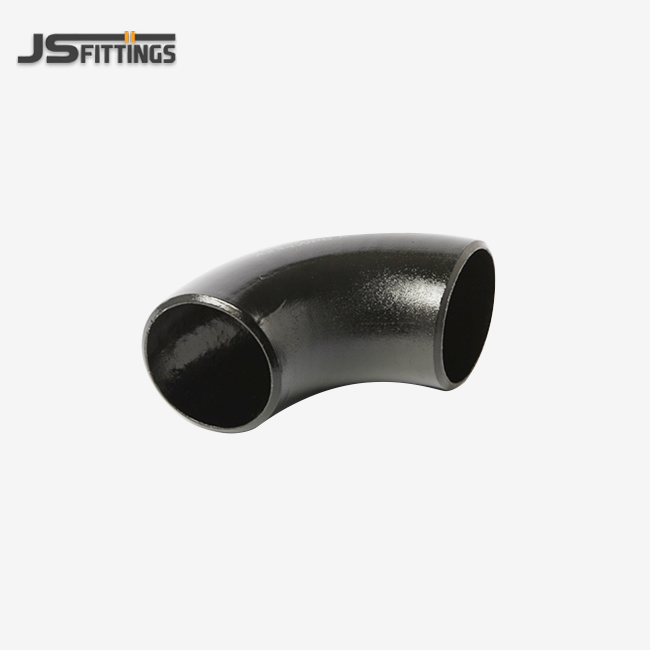

90-Degree Buttweld Elbow Applications

The 90-degree Buttweld Elbow represents the most widely specified angular configuration in industrial piping systems, providing perpendicular directional changes essential for navigating structural obstacles and equipment connections. These fittings excel in applications requiring complete flow redirection, such as vertical-to-horizontal transitions in multi-story facilities, equipment bypass lines, and process interconnections. Manufacturing standards including ASME B16.9 and EN 10253 specify precise dimensional tolerances for 90-degree Buttweld Elbow components, ensuring consistent performance across various pressure and temperature ratings. The hydraulic characteristics of 90-degree elbows create predictable pressure drop patterns, with K-factors ranging from 0.20 to 0.45 depending on radius configuration and Reynolds number conditions. Installation flexibility makes 90-degree Buttweld Elbow fittings ideal for retrofit applications where existing piping requires modification to accommodate new equipment or process changes.

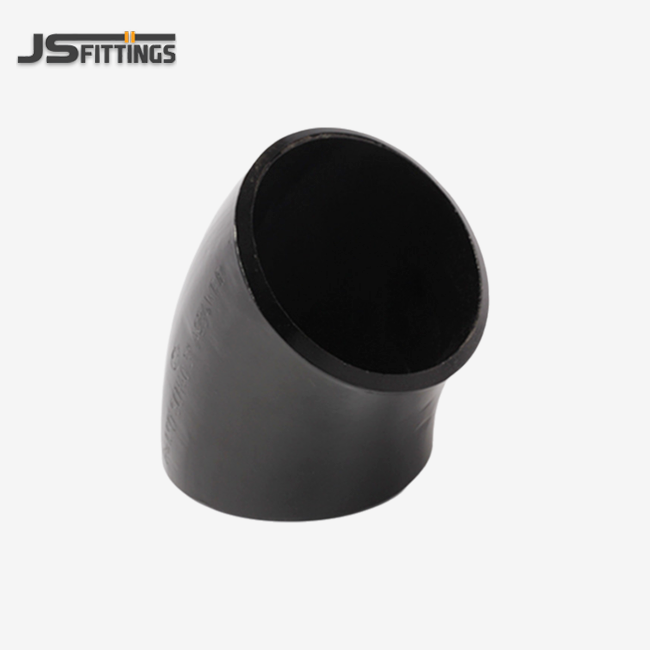

45-Degree Buttweld Elbow Characteristics

The 45-degree Buttweld Elbow configuration provides intermediate directional changes while maintaining superior flow characteristics compared to sharper angular alternatives. These fittings prove particularly valuable in applications where gradual flow redirection minimizes turbulence and reduces erosion potential in high-velocity services. Pressure drop coefficients for 45-degree Buttweld Elbow components typically measure 15-25% lower than equivalent 90-degree configurations, translating to significant energy savings in large-scale pumping systems. The moderate angular change accommodates thermal expansion requirements more effectively than sharp bends, reducing stress concentrations and extending service life in high-temperature applications. Process industries frequently specify 45-degree Buttweld Elbow fittings for crude oil pipelines, natural gas transmission systems, and chemical transfer lines where flow efficiency directly impacts operational costs and environmental performance.

Specialized Angular Configurations

Beyond standard configurations, specialized Buttweld Elbow angles including 30-degree, 60-degree, and custom variations serve unique engineering requirements in complex piping systems. The 30-degree Buttweld Elbow offers minimal flow disruption for applications requiring slight directional adjustments, such as pipeline terrain following or equipment alignment corrections. Custom angular configurations emerge from specific project requirements where standard angles cannot accommodate geometric constraints or performance objectives. Manufacturing capabilities for specialized Buttweld Elbow components require advanced forming techniques and precision quality control to maintain dimensional accuracy and structural integrity. These specialized configurations often command premium pricing due to limited production volumes and increased manufacturing complexity, yet deliver superior performance in applications where standard angles prove inadequate for optimal system design.

Industrial Applications and Selection Criteria

Power Generation and Energy Systems

Power generation facilities demand Buttweld Elbow configurations that withstand extreme operating conditions while maintaining flow efficiency throughout extended service periods. Steam piping systems utilize 90-degree elbows for boiler connections, turbine bypasses, and condensate return lines, where temperature variations and pressure cycling create challenging service environments. Combined heat and power installations frequently specify 45-degree Buttweld Elbow components for natural gas supply lines and exhaust systems, optimizing flow characteristics while accommodating thermal expansion requirements. Nuclear power applications require specialized Buttweld Elbow materials and configurations that meet stringent quality standards and nuclear regulatory requirements. The selection process for power generation systems emphasizes long-term reliability, minimal maintenance requirements, and compliance with industry-specific codes including ASME Section III and ASME B31.1.

Chemical and Petrochemical Processing

Chemical processing industries rely on Buttweld Elbow fittings engineered to handle corrosive media, extreme temperatures, and varying pressure conditions throughout complex process streams. Refinery applications utilize multiple angular configurations within single piping runs, with 90-degree elbows managing equipment connections and 45-degree variants optimizing flow transitions in distillation columns and reaction vessels. Specialty chemical manufacturers specify Buttweld Elbow components with enhanced corrosion resistance and surface finishes suitable for maintaining product purity and preventing contamination. The selection criteria for chemical applications emphasize material compatibility, cleaning capability, and inspection accessibility to support maintenance operations and regulatory compliance. Process optimization studies demonstrate that proper Buttweld Elbow selection can reduce pumping costs by 10-20% while extending equipment service life through improved flow characteristics.

Marine and Offshore Industries

Marine applications present unique challenges for Buttweld Elbow installations due to space constraints, corrosive environments, and dynamic loading conditions from vessel motion and weather exposure. Shipbuilding specifications favor compact angular configurations that maximize available space while maintaining structural integrity under operational stresses. Offshore platforms utilize specialized Buttweld Elbow designs engineered to withstand saltwater exposure, temperature cycling, and seismic loading conditions common in marine environments. The selection process emphasizes weight optimization, corrosion resistance, and maintenance accessibility in remote locations where replacement operations involve significant logistical challenges. Fire and explosion prevention requirements influence Buttweld Elbow material selection and installation practices to ensure system integrity during emergency conditions and prevent escalation of potential incidents.

Performance Optimization and Design Considerations

Flow Dynamics and Hydraulic Performance

Understanding flow behavior through various Buttweld Elbow configurations enables engineers to optimize system performance while minimizing energy consumption and operational costs. Computational fluid dynamics analysis reveals that angular configuration directly influences velocity distribution, pressure recovery, and turbulence intensity downstream of directional changes. Sharp angular transitions in Buttweld Elbow fittings create flow separation and secondary circulation patterns that increase pressure losses and promote erosion in high-velocity applications. The selection of appropriate angular configurations based on Reynolds number, fluid properties, and system operating conditions can significantly impact overall piping system efficiency. Modern design practices incorporate advanced simulation tools to evaluate Buttweld Elbow performance before installation, enabling optimization of angular selection and system layout for maximum efficiency.

Material Selection and Manufacturing Quality

Material selection for Buttweld Elbow components must consider service conditions, compatibility requirements, and long-term performance objectives across diverse angular configurations. Carbon steel grades including A234 WPB provide cost-effective solutions for moderate temperature and pressure applications, while stainless steel variants offer superior corrosion resistance in aggressive environments. Alloy steel Buttweld Elbow components serve high-temperature applications in power generation and petrochemical processing where standard materials cannot maintain adequate strength properties. Manufacturing quality significantly impacts performance regardless of angular configuration, with precision forming, heat treatment, and surface finishing determining long-term reliability and service life. Quality assurance procedures encompass dimensional verification, mechanical property testing, and non-destructive examination to ensure Buttweld Elbow components meet specified requirements and performance expectations.

Installation and System Integration

Proper installation practices for Buttweld Elbow components require attention to angular orientation, support requirements, and welding procedures regardless of specific configuration selected. Pre-installation planning must consider thermal expansion effects, particularly for systems with multiple directional changes where cumulative movement can create significant stresses. Welding procedures for Buttweld Elbow installations follow qualified procedures that address material requirements, joint preparation, and post-weld treatment to ensure optimal joint integrity and performance. Support spacing calculations must account for the specific angular configuration and associated load distribution patterns to prevent excessive stresses and ensure long-term structural stability. System commissioning procedures verify proper Buttweld Elbow installation through pressure testing, flow verification, and performance validation against design specifications.

Conclusion

Buttweld Elbow angular configurations serve critical roles in industrial piping systems, with each variation offering specific advantages for different applications and operating conditions. Understanding the relationship between angle selection, hydraulic performance, and service requirements enables engineers to optimize system design while ensuring long-term reliability. Proper selection criteria considering flow dynamics, material compatibility, and installation requirements maximize the performance benefits of these essential piping components.

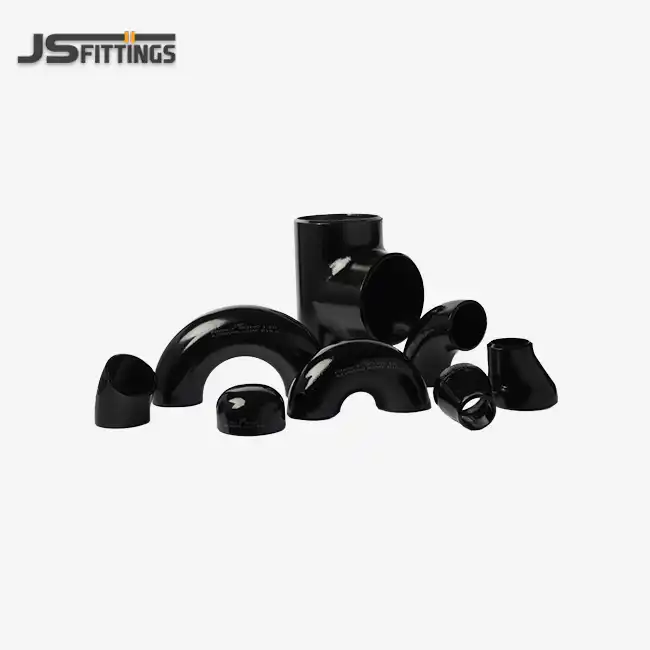

Premium Buttweld Elbow Solutions | JS FITTINGS Manufacturers

With 42 years of expertise, JS FITTINGS' 35,000 m² facility houses 4 advanced production lines, delivering 30,000 tons annually of ASTM/EN-compliant fittings, flanges, and pipes. Our ISO 9001, CE, and PETROBRAS certifications validate uncompromising quality for oil & gas, shipbuilding, and construction sectors. Whether you need 90-degree, 45-degree, or specialized angular Buttweld Elbow configurations, our engineering team delivers precision-manufactured solutions tailored to your specific application requirements. We commit to providing competitively priced, high-performance fittings that meet the most demanding industrial applications through continuous process improvement. Ready to optimize your piping system with the right Buttweld Elbow angles? Contact our technical specialists at admin@chinajsgj.com for expert consultation and competitive quotations that deliver exceptional value for your next project.
