Selecting the right butt weld steel pipe fittings requires cautious thought of different variables that specifically affect extend victory, security compliance, and long-term operational costs. These basic components frame the spine of mechanical channelling frameworks over oil and gas, petrochemical, control era, and manufacturing segments. Understanding fabric determinations, weight evaluations, welding guidelines, and quality certifications makes a difference; engineers and venture supervisors make educated choices that minimise risk while guaranteeing dependable execution throughout the system's operational life. In addition, choosing fitting fittings guarantees appropriate framework keenness, diminishes the probability of spills, and supports effective liquid or gas transportation under changing working conditions. By assessing these parameters early in the plan and implementation stages, venture groups can optimise framework toughness, upgrade operational productivity, and keep up compliance with strict industry regulations.
Understanding Butt Weld Steel Pipe Fittings Fundamentals
Butt weld associations speak to the most strong strategy for joining channels in high-pressure applications. Not at all like attachment weld fittings or strung associations, these components give consistent integration with negligible stream limitation. The welding prepare makes a homogeneous joint that matches the parent pipe's quality characteristics.
Carbon steel fittings rule mechanical applications due to their cost-effectiveness and mechanical properties. These components handle temperatures up to 400°C and weights surpassing 1500 PSI in standard arrangements. Stainless steel fittings serve specialised situations where erosion resistance is paramount.

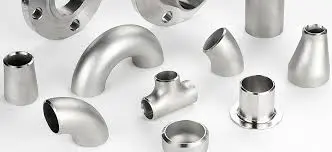

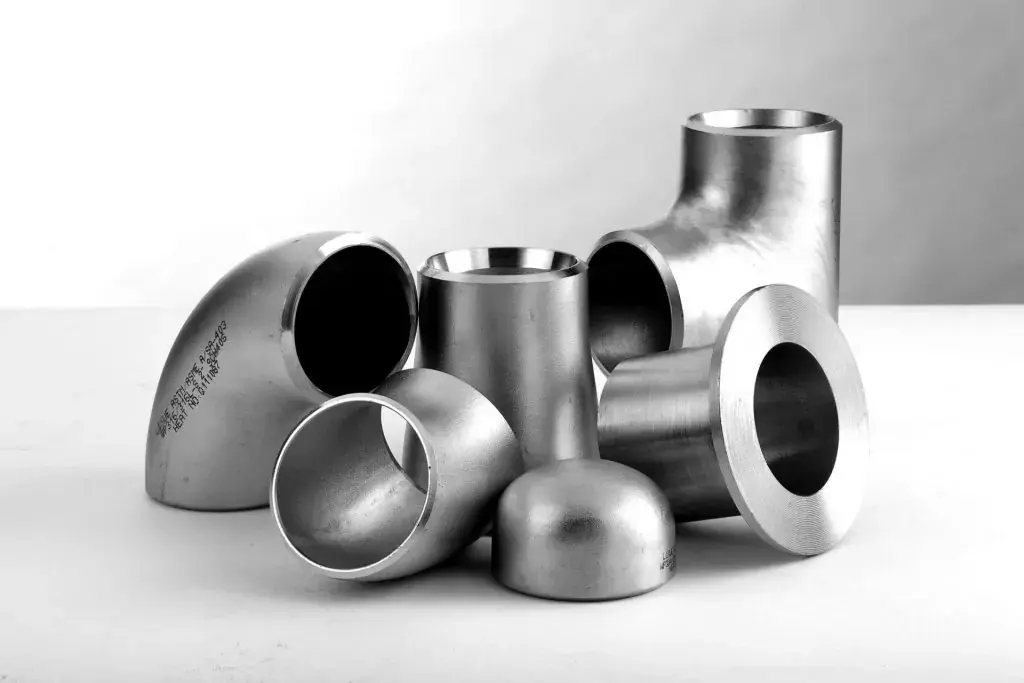

Pipe elbows, reducers, and tees constitute the essential fitting categories. Elbows divert the stream at 45° or 90° points while keeping up framework astuteness. Pipe reducers oblige breadth changes between distinctive pipe sizes. Teams empower department associations in complex channelling networks.
Material details for butt weld steel pipe fittings follow after the built-up industry measures. ASTM A234 covers carbon steel fittings, whereas ASTM A403 addresses stainless steel variations. These measures characterise chemical composition, mechanical properties, and dimensional resistances that guarantee compatibility across manufacturers.
Critical Selection Criteria for Industrial Applications
Pressure appraisals decide fitting reasonableness for particular applications. Plan evaluations (SCH 40, SCH 80, SCH 160) show divider thickness and weight capability. Higher plan numbers give more noteworthy weight resistance but increase fabric costs and weight considerations.
Temperature compatibility influences fabric choice and joint plan. Consistent pipe fittings perform way better under warm cycling conditions. Extension joints may be required in frameworks encountering noteworthy temperature variations.
Corrosion resistance becomes significant in chemical handling situations. Stainless steel grades 304 and 316 offer distinctive erosion properties. Review 316 gives predominant resistance to chloride situations, making it perfect for marine applications.
Dimensional measures for butt weld steel pipe fittings guarantee an appropriate fit and arrangement during pipe installation. ASME B16.9 administers butt-welding fitting measurements in North American markets. Clamour 2605 gives European details. Understanding these contrasts anticipates exorbitant acquisition errors.
Quality certifications approve fabrication forms and fabric properties. ISO 9001 certification illustrates orderly quality administration. Extra certifications like PED (Pressure Equipment Directive) may be required for European projects.
Material Grade Selection and Specifications
Carbon steel grades offer varying strength and temperature capabilities. ASTM A234 WPB represents the standard grade for moderate temperature applications. WP11 and WP22 provide enhanced high-temperature performance through chromium-molybdenum alloying.
Stainless steel selection depends on environmental conditions and mechanical requirements. Type 304 suits general industrial applications with good corrosion resistance. Type 316 excels in marine and chemical environments due to molybdenum content.
Duplex stainless steels and butt weld steel pipe fittings combine high strength with excellent corrosion resistance. These materials reduce wall thickness requirements while maintaining pressure ratings. Cost considerations often limit duplex steel usage to critical applications.
Alloy steel fittings serve extreme temperature and pressure conditions. Chromium-molybdenum alloys maintain strength at elevated temperatures. These materials require specialized welding procedures and post-weld heat treatment.
Material traceability ensures quality control throughout the supply chain. Mill test certificates provide chemical composition and mechanical property verification. This documentation becomes essential for pressure vessel code compliance.
Welding Standards and Quality Assurance
Welding procedures significantly impact joint quality and system reliability. ASME Section IX governs welding qualifications and procedures in pressure vessel applications. AWS D1.1 provides structural welding standards for building and bridge construction.
Preheating requirements depend on material grade and thickness. Butt weld steel pipe fittings and carbon steel fittings typically require preheating above 1/2 inch thickness. Stainless steel materials have different preheating criteria due to their thermal properties.
Non-destructive testing validates weld quality without compromising system integrity. Radiographic testing reveals internal defects like porosity or lack of fusion. Ultrasonic testing provides an alternative method for thick-wall applications.
Pipe fabrication shops must maintain qualified welders and documented procedures for butt weld steel pipe fittings. Welder certification ensures competency for specific material and position combinations. Procedure qualification records document acceptable welding parameters.
Heat treatment may be required after welding to relieve residual stresses. Post-weld heat treatment becomes mandatory for certain pressure vessel applications. Stress relief temperatures and holding times follow code requirements.
Cost Optimization Strategies for Different Business Types
EPC contractors benefit from volume purchasing agreements with certified suppliers. Standardizing on specific grades and sizes reduces inventory complexity. Long-term contracts provide price stability throughout project duration.
Distributors maximize profit margins through strategic inventory management. Stocking high-turnover items reduces customer lead times. Understanding regional demand patterns optimizes warehouse allocation.
Engineering firms balance performance requirements with budget constraints. Butt weld steel pipe fittings value engineering exercises identify opportunities for grade optimization. Alternative materials may provide equivalent performance at reduced cost.
Government projects require strict compliance with procurement regulations. Domestic content requirements may influence supplier selection. Documentation requirements often exceed commercial project standards.
Industrial end users focus on total cost of ownership rather than initial purchase price. Reliability and maintenance costs become primary considerations. Quality fittings reduce unplanned downtime and replacement expenses.
Ensuring Compliance and Safety Standards
Pressure equipment regulations for butt weld steel pipe fittings vary by geographic region and application sector. ASME Boiler and Pressure Vessel Code governs North American installations. European PED requirements apply to equipment sold within EU markets.
Industry-specific standards provide additional requirements beyond general codes. NACE standards address corrosion control in oil and gas applications. API specifications cover petroleum industry requirements.
Quality management systems ensure consistent manufacturing processes. Butt weld steel pipe fittings ISO 9001 certification demonstrates systematic approach to quality control. Additional certifications may be required for nuclear or aerospace applications.
Traceability documentation supports code compliance and maintenance activities. Material test reports verify chemical composition and mechanical properties. Manufacturing records document production processes and quality checks.
Third-party inspection services provide independent verification of compliance. Authorized inspection agencies validate code compliance. Customer witness points allow verification of critical manufacturing steps.
Conclusion
Selecting perfect butt weld steel pipe fittings requires carefully altering execution prerequisites, altogether considering all important variables, and adhering to strict compliance commitments. Understanding fabric determinations, welding strategies, and quality certifications engages extended groups to make educated choices that successfully constrain potential dangers and guarantee framework unwavering quality. Collaborating with experienced producers like JS FITTINGS ensures getting to high-quality items supported by comprehensive specialised support and master direction. Fruitful venture results depend on fastidious determination survey, mindful plan enhancement, provider capability evaluation, and ceaseless quality administration throughout the procurement and installation prepare, guaranteeing long-term operational security and productivity.
Partner with JS FITTINGS for Premium Butt Weld Steel Pipe Fittings
Choosing the right butt weld steel pipe fittings manufacturer ensures project success while minimizing procurement risks. JS FITTINGS brings over four decades of manufacturing expertise to demanding industrial applications worldwide. Our comprehensive product range covers carbon steel, stainless steel, and alloy steel fittings manufactured to international standards.
Advanced production capabilities include four dedicated manufacturing lines equipped with modern forming and heat treatment equipment. ISO 9001, CE, and GOST-R certifications validate our quality management systems. Complete material traceability and comprehensive testing ensure every fitting meets specified requirements.
Global supply chain capabilities serve clients across the Middle East, South America, Europe, and Asia markets. Regional distribution networks reduce lead times while maintaining competitive pricing. Technical support teams assist with material selection and application engineering.
Competitive pricing structures accommodate various project budgets without compromising quality standards. Volume discounts reward long-term partnerships and large-quantity orders. Flexible payment terms support different business models and project requirements.
Whether you're an EPC contractor managing large infrastructure projects or a distributor serving local markets, JS FITTINGS provides reliable solutions that meet your specific requirements. Our experienced team understands the challenges facing today's industrial sectors and delivers products that exceed expectations. Contact us at admin@jsfittings.com to discuss your butt weld steel pipe fittings requirements and discover why leading companies choose JS FITTINGS as their trusted supplier.
References
1. American Society of Mechanical Engineers. "ASME B16.9 - Factory-Made Wrought Buttwelding Fittings." ASME Standards Collection, 2018.
2. American Society for Testing and Materials. "ASTM A234 - Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service." Annual Book of ASTM Standards, 2019.
3. Nayyar, Mohinder L. "Piping Handbook." 8th Edition, McGraw-Hill Professional, 2016.
4. Chuse, Robert and Beatrice Eben. "Pressure Vessels: The ASME Code Simplified." 9th Edition, McGraw-Hill Education, 2018.
5. Singh, Karan. "Industrial Piping Design and Engineering." Gulf Professional Publishing, 2017.
6. American Welding Society. "Structural Welding Code - Steel AWS D1.1/D1.1M." 24th Edition, American Welding Society, 2020.
