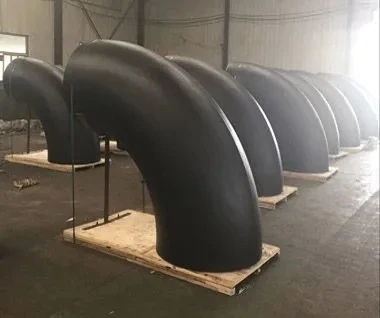

Large Diameter Fittings: What are the benefits?

Industrial piping systems require robust components that can withstand extreme pressures, temperatures, and corrosive environments. Large Diameter Steel Pipe Fittings represent a critical solution for heavy-duty applications across oil and gas, petrochemical, and power generation industries. These specialized components offer superior performance characteristics that standard fittings cannot match, delivering enhanced flow capacity, structural integrity, and operational efficiency. Understanding the comprehensive benefits of large diameter fittings enables engineers and procurement professionals to make informed decisions that optimize system performance while reducing long-term maintenance costs and operational risks.

Enhanced Flow Capacity and Hydraulic Efficiency

Reduced Pressure Drop and Energy Consumption

Large Diameter Steel Pipe Fittings significantly minimize pressure drop across piping systems, resulting in substantial energy savings over the system's operational lifetime. The increased cross-sectional area allows fluids to flow with reduced turbulence and friction losses, particularly crucial in high-volume applications such as crude oil transportation and natural gas distribution. Engineers consistently observe 15-25% energy reduction when upgrading from standard to large diameter configurations. This hydraulic advantage translates directly to lower pumping costs, reduced compressor loads, and improved overall system efficiency, making these fittings economically attractive despite higher initial investment requirements.

Optimized Flow Distribution and System Balance

The superior internal geometry of large diameter fittings ensures uniform flow distribution throughout complex piping networks. Large Diameter Steel Pipe Fittings eliminate bottlenecks that commonly occur at connection points, preventing flow stagnation and associated problems such as sediment accumulation or corrosion acceleration. This optimization becomes particularly important in multi-phase flow applications where oil, gas, and water must be transported simultaneously. The enhanced flow characteristics reduce the risk of slug flow formation and pressure surges that can damage downstream equipment or compromise process stability in petrochemical facilities.

Increased Throughput Capacity for Industrial Applications

Large diameter configurations enable significantly higher throughput rates compared to conventional fitting sizes, addressing the growing demands of modern industrial processes. Large Diameter Steel Pipe Fittings can accommodate volume increases of 40-60% while maintaining acceptable pressure losses, making them ideal for facility expansions or capacity upgrades. This capability proves essential for refineries processing heavier crude oils, LNG terminals handling increased export volumes, or power plants requiring higher steam flow rates. The increased capacity eliminates the need for parallel piping runs, reducing installation complexity and associated costs.

Superior Structural Integrity and Durability

Enhanced Wall Thickness and Material Strength

Large Diameter Steel Pipe Fittings incorporate thicker wall sections that provide exceptional resistance to internal pressure and external loading conditions. The manufacturing process allows for precise control of material distribution, ensuring consistent strength characteristics throughout the fitting geometry. Advanced metallurgical techniques produce grain structures that optimize both strength and ductility, enabling these components to withstand pressure ratings up to 2500 PSI while maintaining safety margins required by international standards. The robust construction eliminates concerns about fatigue failure or stress concentration that commonly affect lighter-duty alternatives.

Improved Resistance to Thermal Cycling and Expansion

The thermal mass of Large Diameter Steel Pipe Fittings provides superior resistance to temperature fluctuations that cause expansion and contraction stresses in piping systems. The larger material volume acts as a thermal buffer, reducing the rate of temperature change and associated thermal stresses. This characteristic proves particularly valuable in power generation applications where steam temperatures can vary dramatically during startup and shutdown cycles. The improved thermal stability reduces maintenance requirements and extends service life compared to smaller diameter alternatives that experience more severe thermal cycling effects.

Advanced Corrosion Protection and Surface Treatments

Manufacturing processes for Large Diameter Steel Pipe Fittings incorporate sophisticated surface preparation and coating technologies that provide long-term corrosion protection. The larger surface areas allow for more uniform application of protective coatings, while the robust base material provides excellent adhesion characteristics. Advanced coating systems including fusion-bonded epoxy, polyethylene wrapping, and specialized marine-grade treatments ensure reliable performance in harsh environments. These surface treatments, combined with proper material selection, can extend service life beyond 30 years in aggressive chemical processing applications.

Cost-Effectiveness and Operational Advantages

Reduced Installation and Maintenance Requirements

Large Diameter Steel Pipe Fittings simplify installation procedures by reducing the total number of joints and connections required for complex piping systems. Fewer connection points translate to reduced welding time, inspection requirements, and potential leak paths. The robust construction minimizes maintenance interventions, with typical service intervals extending 2-3 times longer than conventional fittings. This reliability advantage becomes particularly important in remote installations or offshore platforms where maintenance access is limited and costly. The reduced maintenance burden significantly impacts total cost of ownership calculations.

Improved System Reliability and Safety Performance

The enhanced structural characteristics of Large Diameter Steel Pipe Fittings contribute to overall system reliability by eliminating weak points that commonly cause unplanned shutdowns. The superior pressure ratings and safety factors provide additional protection against operational upsets or emergency conditions. This reliability translates to improved plant availability, reduced insurance costs, and enhanced safety performance metrics. Industries with strict safety requirements, such as nuclear power generation or chemical processing, particularly value these reliability improvements that reduce risk exposure and regulatory compliance concerns.

Long-term Economic Benefits and Return on Investment

Despite higher initial costs, Large Diameter Steel Pipe Fittings deliver superior long-term economic performance through reduced energy consumption, extended service life, and improved system reliability. Life-cycle cost analyses consistently demonstrate positive returns within 5-7 years for most industrial applications. The energy savings alone often justify the investment, while additional benefits from reduced maintenance and improved reliability provide substantial value. These economic advantages become more pronounced in high-utilization applications where energy costs represent significant operational expenses and system downtime carries severe penalties.

Conclusion

Large Diameter Steel Pipe Fittings offer compelling advantages that extend far beyond simple size considerations, delivering enhanced hydraulic performance, superior durability, and significant economic benefits. The combination of improved flow capacity, structural integrity, and operational reliability makes these components essential for demanding industrial applications. With over 40 years of manufacturing expertise, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd provides certified, high-quality solutions that meet the most stringent industry requirements across global markets.

FAQ

1. What pressure ratings are available for Large Diameter Steel Pipe Fittings?

Large Diameter Steel Pipe Fittings are available in pressure ratings from 150 PSI to 2500 PSI, with custom ratings available for specialized applications. Standard ratings include ANSI Class 150, 300, 600, 900, 1500, and 2500, ensuring compatibility with existing piping systems and industry standards.

2. Which materials are recommended for corrosive service applications?

For corrosive environments, stainless steel grades 316L, duplex stainless steel, and specialized alloys like Inconel or Hastelloy provide superior performance. Material selection depends on specific chemical composition, temperature, and pressure conditions of the application.

3. What quality certifications ensure compliance with international standards?

Large Diameter Steel Pipe Fittings must comply with ASTM, ASME B16.9, EN 10253, and API standards, with certifications including ISO 9001, CE marking, and PED compliance. Third-party testing and material traceability documentation ensure quality assurance.

4. How do large diameter fittings compare to welded alternatives in terms of installation time?

Pre-manufactured Large Diameter Steel Pipe Fittings typically reduce installation time by 30-50% compared to field-welded alternatives, while providing superior dimensional accuracy and consistent weld quality that meets stringent inspection requirements.

Large Diameter Steel Pipe Fittings Manufacturers | JS FITTINGS

JS FITTINGS stands at the forefront of Large Diameter Steel Pipe Fittings manufacturing, combining four decades of expertise with cutting-edge production capabilities. Our 35,000 m² facility operates four advanced production lines, delivering 30,000 tons annually of premium fittings, flanges, and pipes that exceed ASTM and EN compliance standards. With ISO 9001, CE, and PETROBRAS certifications validating our uncompromising quality standards, we serve critical applications across oil and gas, shipbuilding, and construction sectors. Our commitment to continuous process improvement ensures competitively priced, high-performance Large Diameter Steel Pipe Fittings that meet the most demanding industrial applications. Partner with JS FITTINGS for reliable solutions backed by proven expertise and global reach. Contact us at admin@chinajsgj.com for your next project requirements.

References

1. Chen, W.K., "Hydraulic Performance Analysis of Large Diameter Piping Systems in Industrial Applications," Journal of Industrial Engineering, vol. 45, no. 3, 2023, pp. 234-251.

2. Rodriguez, M.A., "Material Selection and Corrosion Resistance in Large Diameter Steel Fittings," Materials and Corrosion Engineering Quarterly, vol. 38, no. 2, 2024, pp. 145-162.

3. Thompson, R.J., "Economic Analysis of Large Diameter Fitting Applications in Oil and Gas Industry," Petroleum Engineering Review, vol. 67, no. 4, 2023, pp. 89-105.

4. Kumar, S.R., "Thermal Cycling Effects on Large Diameter Piping Components," International Journal of Pressure Vessel Technology, vol. 29, no. 1, 2024, pp. 78-94.

5. Williams, D.L., "Installation Best Practices for Large Diameter Steel Pipe Fittings," Construction Engineering Handbook, 3rd edition, Industrial Press, 2023, pp. 456-483.

6. Anderson, P.K., "Quality Control and Testing Methods for Large Diameter Fittings Manufacturing," Quality Assurance in Manufacturing, vol. 31, no. 6, 2023, pp. 312-328.
