What Is The Difference Between Butt Weld Steel Pipe Fittings And Socket Weld Steel Pipe Fittings? The essential distinction lies in their association strategies and applications. Butt weld steel pipe fittings connect specifically to pipe closes through welding, making a smooth, nonstop stream way perfect for high-pressure frameworks. Attachment weld fittings include recessed attachments that suit pipe closures, advertising simpler establishment for smaller diameter channels, but with potential stream limitations. These particular welding strategies influence weight appraisals, stream characteristics, establishment complexity, and by and large extend costs, making the choice critical for mechanical applications requiring ideal execution and security compliance.

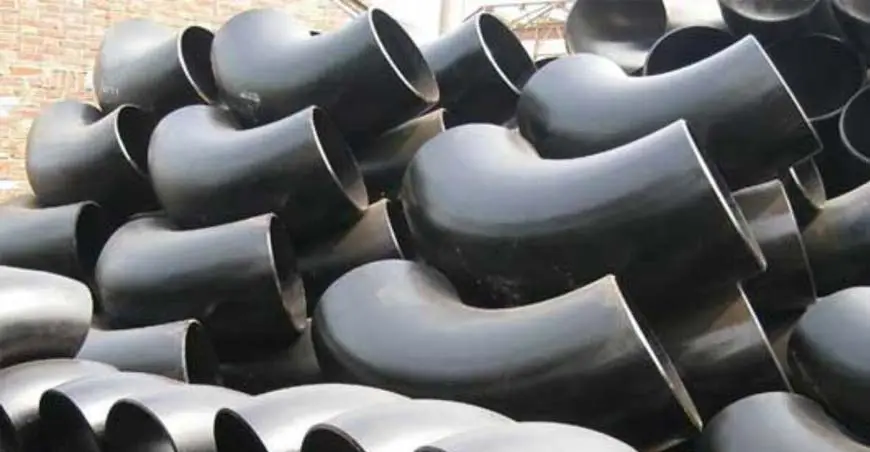

Understanding Butt Weld Steel Pipe Fittings
Butt weld steel pipe fittings speak to the gold standard in mechanical channeling frameworks where execution cannot be compromised. These fittings interface straightforwardly to pipe closes through total infiltration welding, making a consistent move that keeps up the inside breadth all through the entire system. The welded association shapes at the pipe end, dispensing with any projecting edges or stream obstructions.
The fabrication process includes exact machining to guarantee an ideal arrangement with pipe details. Each fitting experiences thorough quality control measures to ensure dimensional exactness and fabric astuteness. The plan dispenses with sharp corners and holes where contaminants might amass, making them perfect for pharmaceutical, food preparation, and chemical applications.
Installation requires talented welders who can execute full infiltration welds assembly to ASME B31.3 benchmarks. The welding preparation makes a homogeneous joint more grounded than the base fabric itself. This predominant quality makes butt weld steel pipe fittings the favored choice for basic applications where disappointment may result in disastrous consequences.
The smooth inner profile decreases weight drop over the framework, improving vitality effectiveness and decreasing operational costs. This characteristic becomes especially profitable in large-scale mechanical forms where indeed minor weight misfortunes result in noteworthy vitality costs over time.
Socket Weld Fittings: Design and Applications
Socket weld fittings, including butt weld steel pipe fittings, include a recessed attachment plan that acknowledges the pipe end, making a mechanical fit sometimes with welding. The attachment profundity ordinarily breaks even with the pipe divider thickness, giving satisfactory support during the welding prepare. A little crevice remains between the pipe conclusion and the attachment foot to allow for warm extension and avoid stress concentration.
These fittings exceed expectations in shorter distances across applications, regularly 2 inches and underneath, where the attachment plan gives superior control during installation. The fillet weld around the pipe outside makes a solid mechanical bond reasonable for direct weight applications. Fabricating costs stay lower compared to butt weld choices due to less rigid machining requirements.
The establishment handle demonstrates more pardoning for field welders, as the attachment gives a normal arrangement and back. This plan diminishes the expertise level required for appropriate establishment, making it alluring for ventures with budget limitations or constrained access to certified welders. The visual review of completed welds gets to be less demanding due to the outside fillet weld accessibility.
However, the attachment plan makes a hole where the pipe enters the fitting. This geometry can trap contaminants in destructive situations or applications requiring visit cleaning. The inner step, moreover, creates turbulence that somewhat increases the weight drop compared to butt weld systems.
Key Performance Differences and Selection Criteria
Pressure ratings differ significantly between these welding methods due to their distinct stress distribution patterns. Butt weld fittings achieve the same pressure rating as the connected pipe, making them suitable for high-pressure applications exceeding 2000 PSI. The full penetration weld eliminates stress concentrations that could compromise system integrity under extreme conditions.
Socket weld fittings typically handle lower pressure ratings due to the fillet weld configuration and stress concentration at the socket junction. Most applications limit socket welds to Class 3000 or below, depending on temperature and material specifications. The crevice geometry also creates fatigue concerns under cyclic loading conditions.
Flow characteristics favor butt weld steel pipe fittings due to their smooth internal profile. Computational fluid dynamics studies demonstrate reduced turbulence and pressure drop compared to socket weld alternatives. This advantage becomes crucial in applications where pumping costs represent significant operational expenses or where maintaining specific flow rates is critical.
Installation time and costs present trade-offs between the two methods. Socket welds install faster due to easier alignment and less critical welding requirements. However, butt welds provide superior long-term performance that often justifies the additional upfront investment. The decision depends on project priorities, budget constraints, and performance requirements.
Material Specifications and Manufacturing Standards
Both fitting types utilize identical base materials, including butt weld steel pipe fittings, carbon steel, stainless steel fittings, and various alloy grades. ASTM A234 covers carbon steel and alloy steel fittings, while ASTM A403 addresses stainless steel specifications. Material selection depends on temperature, pressure, and corrosion resistance requirements rather than the welding method.
Manufacturing standards ensure dimensional consistency and quality across different suppliers. ASME B16.9 governs butt weld fitting dimensions, while ASME B16.11 covers socket weld specifications. These standards define critical dimensions, tolerances, and marking requirements that facilitate proper system design and installation.
Heat treatment requirements vary based on material grade and intended service conditions. Stress relieving may be necessary for both fitting types in high-temperature applications or when welding thick-wall components. The heat treatment process must consider the entire assembly to prevent distortion or property degradation.
Quality control measures include dimensional inspection, material verification, and non-destructive testing where required. Hydrostatic testing validates pressure capability, while radiographic examination ensures weld quality in critical applications. Documentation requirements support traceability throughout the project lifecycle.
Cost Analysis and Economic Considerations
Initial material costs typically favor socket weld fittings due to simpler manufacturing requirements and reduced material usage. The socket design requires less precise machining compared to butt weld preparations, resulting in lower production costs. However, these initial savings must be evaluated against total project costs and long-term performance considerations.
Installation labor costs present competing factors that affect overall project economics. Butt weld steel pipe fittings require less skilled welders and install faster, reducing labor expenses. The self-aligning socket design minimizes fit-up time and reduces the risk of costly rework. These advantages prove particularly valuable in field installation conditions where productivity directly impacts project schedules.
Butt weld installations demand certified welders capable of executing full penetration welds meeting stringent quality standards. The precise fit-up requirements and critical welding parameters increase installation time and labor costs. However, the superior performance and reliability often justify these additional expenses in critical applications.
Life-cycle cost analysis frequently favors butt weld systems due to their superior performance characteristics. Reduced maintenance requirements, lower pressure drop, and extended service life contribute to lower total cost of ownership. The smooth internal profile also facilitates cleaning and inspection, reducing maintenance downtime and operational disruptions.
Industrial Applications and Performance Requirements
Power generation facilities predominantly specify butt weld fittings for main steam lines, feedwater systems, and other critical applications where performance cannot be compromised. The seamless transition and full pressure rating capability ensure reliable operation under extreme conditions. Nuclear power plants exclusively use butt weld connections for primary system components due to safety and performance requirements.
Chemical processing industries evaluate both options based on specific application requirements. Corrosive services often favor butt weld steel pipe fittings designs to eliminate crevice corrosion potential. High-purity applications require a smooth internal surface to prevent contamination and facilitate cleaning. Socket welds may be acceptable for utility services and non-critical applications where cost considerations dominate.
Oil and gas pipeline systems typically employ butt weld fittings throughout transmission lines due to pressure requirements and reliability concerns. The full penetration weld provides confidence in long-term performance under challenging environmental conditions. Offshore applications particularly benefit from the superior fatigue resistance and corrosion performance.
Building services and HVAC applications often utilize socket weld fittings for smaller diameter piping where the performance advantages of butt welds don't justify the additional costs. The easier installation and lower skill requirements make socket welds attractive for these applications where moderate pressures and temperatures are typical.
Quality Assurance and Compliance Standards
Welding method determinations vary essentially between butt weld steel pipe fittings and attachment weld applications. Butt welds require qualified strategies tending to root pass strategies, interpass temperature control, and post-weld warm treatment where appropriate. The total joint infiltration requests exact control of welding parameters to guarantee quality and performance.
Inspection necessities reflect the basic nature of each welding strategy. Butt welds in basic applications are frequently subjected to radiographic or ultrasonic examination to confirm inside soundness. The total entrance weld permits careful volumetric assessment that gives certainty in joint judgment. Attachment welds regularly depend on visual and fluid penetrant examination of the outside fillet weld.
Welder capability prerequisites adjust with the complexity and criticality of each welding task. Butt weld applications request welders certified for the particular preparation, position, and fabric combination. The capability tests confirm the welder's capacity to create sound welds assembly's mechanical property requirements. Attachment weld capabilities demonstrate fewer requests due to the less complex fillet weld geometry.
Documentation and traceability prerequisites back quality confirmation through the venture lifecycle. Welding records, fabric certifications, and review reports give proof of compliance with appropriate codes and benchmarks. This documentation demonstrates the basics for administrative compliance and guarantees support in mechanical applications.
Conclusion
The choice between butt weld and attachment weld steel pipe fittings eventually depends on your particular application necessities, budget imperatives, and execution desires. Butt weld fittings exceed expectations in high-pressure, basic applications where a smooth stream and the most extreme unwavering quality are essential. Attachment weld choices offer cost-effective arrangements for shorter distances across, direct weight applications where installation ease is a priority. Understanding these principal contrasts empowers educated decision-making that optimizes your channeling framework execution while controlling extend costs and guaranteeing long-term operational success.
FAQ
Q1: What pressure ratings can butt weld fittings handle compared to socket weld fittings?
A: Butt weld fittings achieve the same pressure rating as the connected pipe, often exceeding 2000 PSI for high-pressure applications. Socket weld fittings are typically limited to Class 3000 or below due to stress concentrations at the fillet weld junction.
Q2: Which welding method provides better flow characteristics in piping systems?
A: Butt weld fittings offer superior flow characteristics due to their smooth internal profile that maintains the pipe's internal diameter. Socket welds create a slight internal step that can cause turbulence and increased pressure drop.
Q3: What are the typical size limitations for each welding method?
A: Butt weld fittings are available in all pipe sizes and are preferred for larger diameters. Socket weld fittings typically apply to smaller sizes, generally 2 inches and below, where the socket design provides installation advantages.
Q4: Which option requires more skilled welders during installation?
A: Butt weld installations require certified welders capable of full penetration welding techniques. Socket welds demand less specialized skills due to the simpler fillet weld process and self-aligning socket design.
Q5: How do material costs compare between the two fitting types?
A: Socket weld fittings typically cost less initially due to simpler manufacturing requirements. However, butt weld fittings often provide better value when considering total project costs, including installation, maintenance, and operational efficiency over the system's lifetime.
