When looking for the 2025 best butt weld steel pipe fittings for mechanical applications, extend directors and engineers confront basic choices that affect security, cost-effectiveness, and long-term execution. Butt weld steel pipe fittings speak to the spine of present-day mechanical channeling frameworks, advertising prevalent quality and unwavering quality compared to strung or flanged options. These consistent pipe fittings make changeless associations through welded joints, guaranteeing ideal weight resistance and negligible upkeep necessities. The welding prepare makes a nonstop metal structure that kills potential spill focuses, making them fundamental for high-pressure applications in petrochemical, control era, and manufacturing offices worldwide.
Why Butt Weld Steel Pipe Fittings Matter in 2025?
Industrial foundation requests have advanced essentially, pushing engineers toward arrangements that minimize extend hazard while maximizing operational effectiveness. Butt weld fittings address these challenges through their vigorous development and demonstrated unwavering quality. Not at all like attachment weld choices, these fittings dispose of the cleft impact that can harbor destructive substances, extending the framework's life expectancy considerably.
The worldwide mechanical scene in 2025 emphasizes maintainability and takes a toll optimization. These variables make butt joint associations progressively alluring for large-scale ventures. The consistent integration accomplished through appropriate pipe welding diminishes turbulence and weight drops, making strides in vitality effectiveness over whole channeling networks.
Modern metal creation methods have upgraded the exactness and consistency of these components. Progressed fabricating forms guarantee dimensional precision that encourages simpler pipe establishment and decreases field welding time. This translates specifically into diminished costs and speedier completion plans.
Selection Criteria for Premium Industrial Pipe Fittings
Evaluating butt weld steel pipe fittings requires careful consideration of multiple performance factors. Material composition stands as the primary criterion, with carbon steel, stainless steel, and alloy steel variants serving different applications. Each material offers distinct advantages regarding corrosion resistance, temperature tolerance, and mechanical strength.
Manufacturing standards compliance ensures reliability and safety across international markets. Certifications such as ASME B16.9, ASTM specifications, and ISO standards provide confidence in dimensional accuracy and material properties. These certifications become particularly important when serving diverse markets spanning Latin America, Canada, Africa, Southeast Asia, Central Asia, CIS countries, and the Middle East.
Wall thickness calculations directly impact pressure ratings and service life. Schedule 40, Schedule 80, and XXS variants accommodate different pressure requirements while maintaining optimal flow characteristics. Proper selection prevents over-engineering that increases costs unnecessarily.
Surface finish quality in butt weld steel pipe fittings affects both welding performance and corrosion resistance. Machine-finished ends ensure proper pipe alignment and facilitate consistent weld penetration. This attention to detail reduces field rework and enhances overall system integrity.

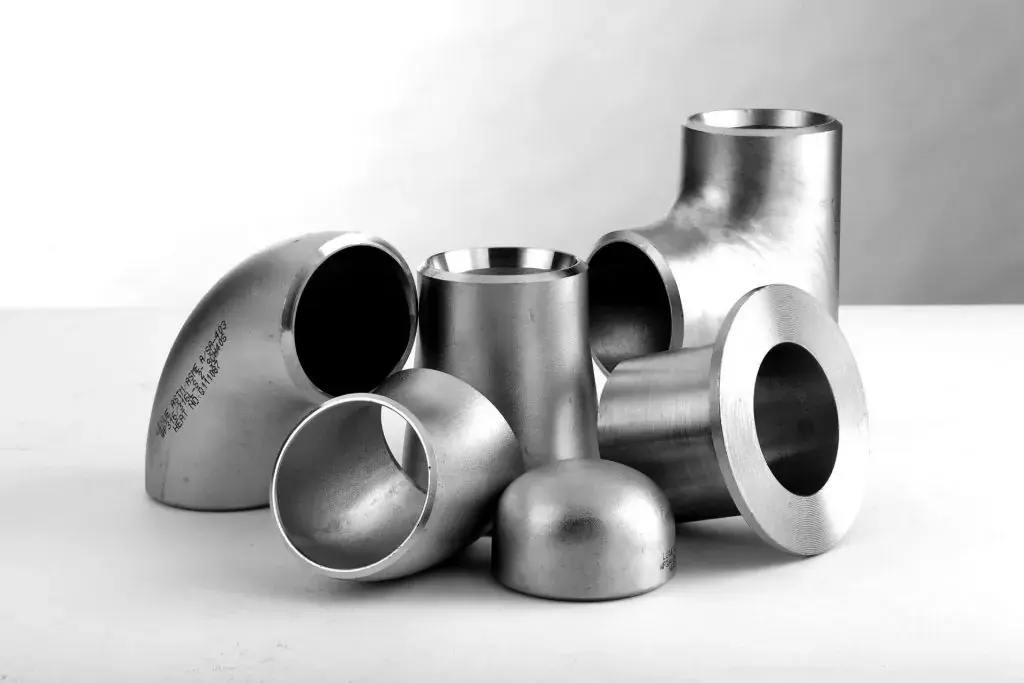

Top 7 Butt Weld Steel Pipe Fittings for 2025
90-Degree Long Radius Elbows
Long radius elbows represent the most versatile components in any piping system, offering optimal flow characteristics while maintaining structural integrity. These fittings feature a centerline radius of 1.5 times the nominal pipe diameter, reducing turbulence and pressure losses compared to short radius alternatives.
The extended curve geometry minimizes erosion in high-velocity applications, making them ideal for slurry transport and abrasive media handling. Manufacturing precision ensures consistent wall thickness distribution throughout the curved section, preventing stress concentration points that could lead to premature failure.
Material options include carbon steel grades A234 WPB for general service, stainless steel A403 WP316L for corrosive environments, and low-temperature carbon steel A420 WPL6 for cryogenic applications. Each grade undergoes rigorous testing to verify mechanical properties and dimensional accuracy.
Installation advantages include reduced fitting count in complex routing situations and improved system hydraulics. The longer radius accommodates thermal expansion more effectively than short radius fittings, reducing stress on adjacent pipe sections and support structures.
Quality control measures for butt weld steel pipe fittings include ultrasonic testing for wall thickness verification, dimensional inspection per ASME B16.9 requirements, and surface finish verification. These comprehensive checks ensure consistent performance across production batches.
Cost-effectiveness emerges through reduced pumping energy requirements and extended service life. The improved flow characteristics can reduce operating costs by 3-5% in high-flow applications, while the robust construction minimizes maintenance interventions.
Concentric Reducers
Concentric reducers facilitate smooth diameter transitions while maintaining centerline alignment, essential for horizontal piping runs with pump connections. The symmetrical design ensures even velocity distribution, preventing cavitation and turbulence that could damage downstream equipment.
Manufacturing involves hot forming processes that maintain consistent material properties throughout the transition zone. Advanced forming techniques ensure smooth internal contours without sharp edges that could create pressure drops or erosion points.
Size combinations range from 1/2" x 1/4" up to 48" x 36", accommodating virtually any industrial application. Custom size combinations are available for specialized applications requiring non-standard transitions.
The cone angle of butt weld steel pipe fittings typically ranges from 15 to 30 degrees, optimized for minimal pressure loss while maintaining compact installation dimensions. This angle prevents flow separation and reduces the formation of stagnant zones that could harbor corrosive deposits.
Material grades match those of connecting pipe systems, ensuring uniform corrosion resistance and thermal expansion characteristics. Compatibility extends to exotic alloys such as Inconel, Hastelloy, and duplex stainless steels for specialized applications.
Testing procedures include hydrostatic pressure testing to 1.5 times the rated working pressure, dimensional verification using coordinate measuring machines, and material certification through certified mill test certificates. These comprehensive quality measures ensure reliable performance in critical applications.

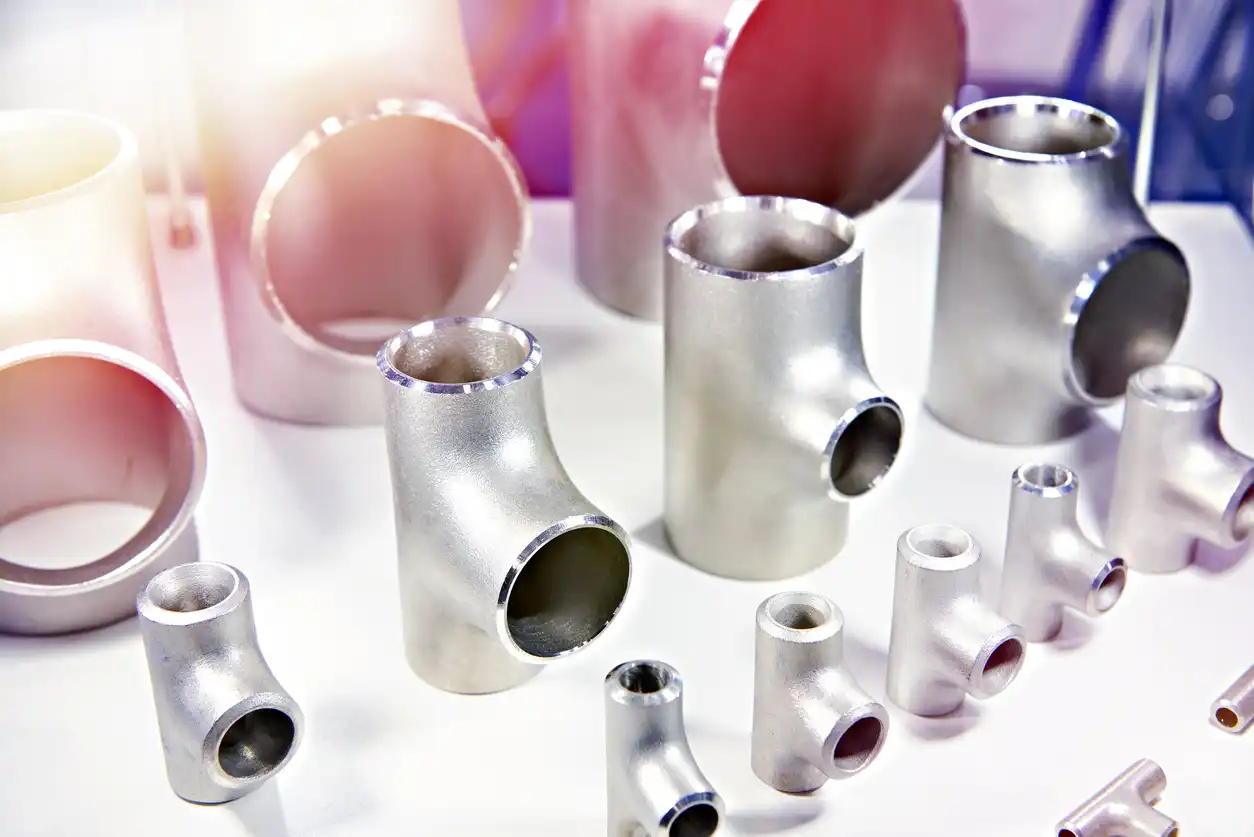

Equal Tees
Equal tees provide branching capabilities while maintaining uniform pipe diameters across all three connections. The reinforced intersection design handles the stress concentration inherent in three-way junctions, ensuring long-term reliability under cyclic loading conditions.
The manufacturing process begins with seamless pipe sections that undergo forming operations to create the branch connection. Hot forming maintains material continuity and eliminates potential weak points that could develop with welded construction methods.
Branch reinforcement follows established engineering principles, with additional material thickness at the intersection zone. This reinforcement compensates for the stress intensification factor present in tee junctions, maintaining safe operating margins.
Flow characteristics depend on the specific piping configuration, with straight-through flow experiencing minimal pressure drop. Branch flow encounters higher losses due to direction changes, but the smooth internal contours minimize these effects compared to threaded alternatives.
Size availability spans from 1/2" through 48" nominal diameters, with wall thickness options matching standard pipe schedules. Custom wall thickness combinations are available for applications requiring specific pressure ratings or weight limitations.
Quality assurance for butt weld steel pipe fittings includes magnetic particle inspection of the branch intersection, radiographic examination when specified, and comprehensive dimensional verification. These inspection methods detect any manufacturing defects that could compromise service performance.
Eccentric Reducers
Eccentric reducers maintain either top or bottom alignment between connected pipes, preventing pocket formation that could trap gases or liquids. This design feature proves essential in horizontal lines where gravity separation might occur.
The offset geometry accommodates specific installation requirements while maintaining smooth flow transitions. Top-flat orientation prevents gas pocket formation in liquid lines, while bottom-flat configuration eliminates liquid accumulation in gas systems.
Manufacturing complexity requires precise control of forming operations to maintain both the diameter reduction and the eccentric offset. Advanced tooling ensures consistent reproduction of the required geometry across production batches.
Welding preparation includes machined ends that facilitate proper fit-up and alignment during installation. The eccentric geometry requires careful attention to welding sequence to prevent distortion during the pipe welding process.
Material specifications for butt weld steel pipe fittings align with connecting piping systems, ensuring compatible thermal expansion and corrosion resistance characteristics. Special attention to material orientation maintains optimal grain structure alignment for maximum strength.
Applications include pump suction lines, where the flat-bottom design prevents cavitation-inducing gas pockets, and overhead vapor lines, where the flat-top configuration prevents liquid accumulation that could cause water hammer effects.
Pipe Caps
Pipe caps provide permanent closure for pipe ends, offering superior pressure containment compared to flanged blind options. The ellipsoidal or hemispherical shape distributes stress uniformly, maximizing pressure resistance while minimizing material requirements.
The forming process creates seamless closures without weld seams that could represent potential failure points. Hot forming maintains material properties while achieving the optimal shape for pressure vessel applications.
Wall thickness calculations for butt weld steel pipe fittings follow pressure vessel design codes, ensuring adequate strength margins for the intended service conditions. The curved geometry provides inherently superior pressure resistance compared to flat closure designs.
Installation simplicity requires only a single circumferential weld, reducing field labor compared to flanged alternatives. This simplicity also eliminates the ongoing maintenance requirements associated with bolted connections.
Size range extends from 1/2" through 48" nominal diameters, with custom sizes available for specialized applications. Wall thickness options accommodate pressure ratings from 150# through 2500# and higher for special applications.
Quality verification includes pressure testing, dimensional inspection, and material certification. The absence of weld seams eliminates many potential quality concerns associated with fabricated closures.
45-Degree Elbows
Forty-five-degree elbows offer moderate direction changes while minimizing pressure losses and installation space requirements. The reduced angle change creates gentler flow redirection compared to 90-degree alternatives, improving system hydraulics.
Flow characteristics benefit from the reduced direction change, with pressure losses typically 30-40% lower than equivalent 90-degree fittings. This improvement becomes significant in high-flow systems where pumping energy represents substantial operating costs.
Manufacturing processes mirror those used for 90-degree elbows, ensuring consistent quality and material properties. The reduced forming requirements often result in more uniform wall thickness distribution throughout the curved section.
Installation flexibility for butt weld steel pipe fittings allows creative routing solutions in congested areas where space constraints prevent the use of larger radius fittings. The moderate angle change often eliminates the need for expansion joints in thermal cycling applications.
Material availability encompasses all standard grades used in industrial piping, with special alloys available for corrosive or high-temperature service. Material selection follows the same criteria used for straight pipe sections in the same system.
Combination usage with 90-degree elbows provides precise angular positioning in complex routing situations. This flexibility simplifies field installation and reduces the need for custom fabrication.
Reducing Tees
Reducing tees combine branching capability with size reduction, eliminating the need for separate reducer fittings in many applications. The integrated design reduces potential leak points while simplifying installation procedures.
Size combinations for butt weld steel pipe fittings accommodate numerous configuration options, with the branch typically smaller than the main run. Standard combinations follow established patterns, while custom configurations address specific application requirements.
Manufacturing complexity requires precise control of multiple forming operations to achieve the desired size relationships while maintaining structural integrity. Advanced tooling ensures consistent reproduction of the complex geometry.
Reinforcement calculations consider both the tee junction stress concentration and the reducer transition effects. The combined analysis ensures adequate strength margins for safe operation under design conditions.
Flow analysis becomes more complex due to the combined effects of direction change and velocity increase in the reduced branch. Computational fluid dynamics modeling optimizes internal contours for minimal pressure loss.
Cost advantages emerge through reduced fitting count and simplified installation procedures. The integrated design eliminates one welded joint compared to separate tee and reducer combinations, reducing both material and labor costs.
Regional Market Analysis and Compliance Requirements
Understanding regional market characteristics proves crucial for successful project execution across diverse geographical areas for butt weld steel pipe fittings. Latin American markets emphasize cost-effective solutions that maintain safety standards, with countries like Brazil and Mexico requiring compliance with ABNT and NMX standards, respectively. Local content requirements often influence material sourcing decisions, favoring suppliers with regional manufacturing capabilities.
Canadian industrial projects prioritize cold-weather performance and CSA compliance, particularly for pipeline and petrochemical applications. The regulatory environment emphasizes environmental protection and worker safety, requiring comprehensive documentation and traceability.
African markets present diverse requirements ranging from mining applications requiring abrasion resistance to oil and gas projects demanding corrosion-resistant materials. Infrastructure development projects often specify standards that align with European or American codes, depending on funding sources.
Southeast Asian markets experience rapid industrial growth, driving demand for reliable piping components. Countries like Thailand, Vietnam, and Indonesia require compliance with local standards while maintaining compatibility with international specifications. Humid tropical conditions necessitate enhanced corrosion protection measures.
Central Asian and CIS countries often specify GOST standards inherited from Soviet-era industrial development. These specifications may differ from Western standards in dimensional requirements and testing procedures, requiring careful attention to compliance details.
Middle Eastern markets demand exceptional corrosion resistance due to harsh environmental conditions and the prevalence of petrochemical applications. High-temperature performance becomes critical for applications in the Gulf region, where ambient temperatures can exceed 50°C.
Purchasing Recommendations and Key Considerations
Successful procurement of butt weld steel pipe fittings requires balancing multiple factors that impact both initial costs and long-term performance. Material selection should prioritize compatibility with existing piping systems while considering future expansion possibilities. Over-specification increases costs unnecessarily, while under-specification compromises safety and reliability.
Supplier qualification becomes critical for ensuring consistent quality and reliable delivery schedules. Evaluation criteria should include manufacturing capabilities, quality certifications, and track record in similar applications. The ability to provide comprehensive documentation supports regulatory compliance and maintenance planning.
Inventory management strategies must balance carrying costs against availability requirements. Critical path items justify higher inventory levels, while standard components can utilize just-in-time delivery approaches. Standardization across projects reduces inventory complexity and improves procurement efficiency.
Testing and inspection requirements should align with applicable codes and standards while considering project-specific risk factors. Routine testing verifies conformance with specifications, while special testing addresses unique application requirements.
Delivery scheduling must accommodate manufacturing lead times and transportation constraints. International projects require additional time for customs clearance and regulatory approvals. Weather-related delays can impact delivery schedules in certain regions.
Cost analysis should include total ownership expenses rather than focusing solely on initial purchase prices for butt weld steel pipe fittings. Quality fittings reduce maintenance costs and minimize unplanned shutdowns that can far exceed material cost savings.
Industry Trends and Summary
The mechanical channeling division proceeds toward improved reliability and sustainability in 2025. Progressed fabricating strategies progress dimensional consistency while lessening fabric squander. Advanced quality control frameworks give comprehensive traceability and documentation. These advancements back the developing emphasis on lifecycle taken a toll optimization and natural obligation. Butt weld steel pipe fittings stay the favored choice for basic applications where security, unwavering quality, and execution cannot be compromised.
Conclusion
Selecting the best butt weld steel pipe fittings for mechanical applications requires cautious thought of fabric properties, fabricating quality, and provider capabilities. The seven fitting sorts talked about give the establishment for strong channeling frameworks that convey dependable long-term execution. Territorial compliance prerequisites and advertising characteristics impact fabric determination and provider choice decisions.
Success depends on collaborating with experienced producers who have both specialized prerequisites and advertising flow. Quality certifications, comprehensive testing, and demonstrated track records recognize solid providers from product suppliers. Speculation in premium fittings pays profits through decreased support costs and moves forward operational unwavering quality throughout the framework lifecycle.
FAQ
Q1: What are the main advantages of butt weld fittings over threaded alternatives?
A: Butt weld fittings provide superior pressure resistance, eliminate potential leak paths, and create smoother internal flow profiles. The permanent welded connection eliminates maintenance requirements associated with threaded joints while providing better resistance to vibration and thermal cycling.
Q2: How do I determine the correct wall thickness for my application?
A: Wall thickness selection depends on operating pressure, temperature, and safety factors specified in applicable design codes. ASME B31.3 for process piping and ASME B31.1 for power piping provide calculation methods. Consulting with qualified piping engineers ensures proper specification for critical applications.
Q3: What quality certifications should I require from suppliers?
A: Essential certifications include material test certificates per ASTM standards, dimensional verification per ASME B16.9, and manufacturing quality systems such as ISO 9001. Additional certifications like GOST-R or CE may be required for specific markets or applications.
