Butt Welding: Methods & Preparation?

Butt welding speaks to a principal joining strategy in advanced channeling frameworks, requiring exact strategies and fastidious arrangement to accomplish solid, long-lasting associations. This basic handle shapes the spine of mechanical framework, where buttweld fittings serve as basic components interfacing channels, changing stream bearings, and overseeing framework weights over differing applications. Understanding appropriate butt welding strategies and arrangement strategies guarantees ideal joint judgment, minimizes surrenders, and maximizes benefit life in requesting mechanical situations. Proficient welding hones envelop surface arrangement, fabric choice, gear calibration, and quality control measures that specifically affect the last association quality and strength. This comprehensive direct investigates the basic strategies, arrangement prerequisites, and best hones that experts must ace to accomplish reliably high-quality butt welded joints in basic channeling applications.

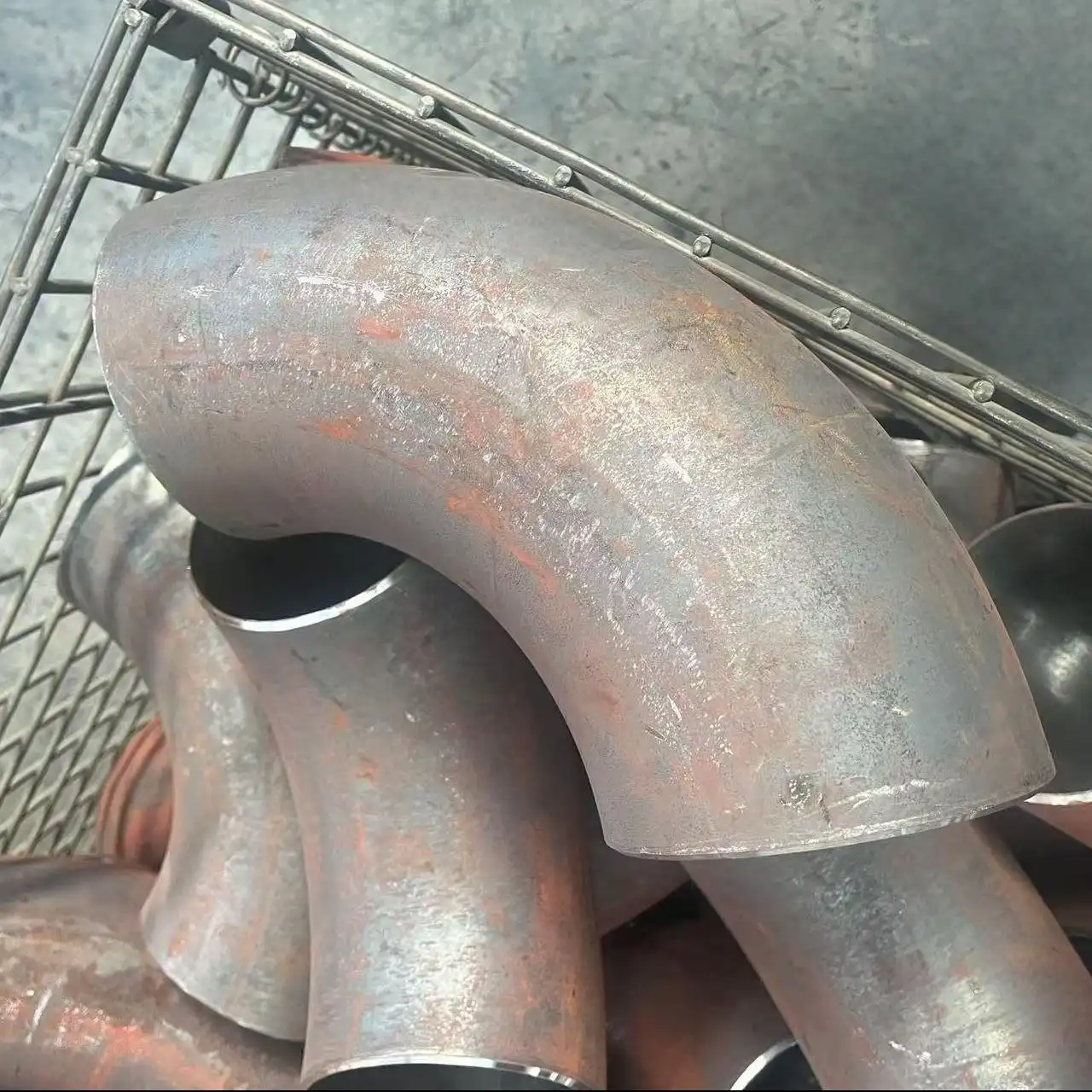

Surface Preparation Techniques for Optimal Welding Results

Cleaning and Degreasing Procedures

Proper surface planning starts with intensive cleaning and degreasing of all surfaces that will take an interest in the welding prepare, as defilement speaks to one of the essential causes of weld abandons in buttweld fittings establishments. The cleaning handle must expel all follows of oil, oil, paint, rust, process scale, and other outside materials that seem meddled with weld infiltration or present destructive components into the weld metal. Mechanical cleaning strategies incorporate wire brushing, crushing, and sandblasting, each chosen based on the particular defilement sort and surface condition prerequisites. Chemical cleaning arrangements viably expel oil-based contaminants but require cautious taking care of and total evacuation some time recently welding operations commence. The cleaning zone ought to expand at slightest one inch past the arranged weld zone to guarantee no defilement moves into the liquid weld pool amid the welding prepare. Quality control methods incorporate visual assessment, wipe tests, and in some cases chemical investigation to confirm cleanliness benchmarks have been accomplished some time recently continuing with welding operations.

Fit-up and Alignment Requirements

Achieving proper fit-up and alignment constitutes a critical preparation step that directly influences weld quality and long-term performance of buttweld fittings connections. Gap dimensions must be carefully controlled according to applicable welding procedure specifications, typically ranging from 1/16 to 1/8 inch depending on material thickness and welding process requirements. Misalignment tolerances are equally important, with angular misalignment generally limited to prevent stress concentrations that could lead to premature failure under service conditions. Professional installation practices utilize specialized alignment tools, including external clamps, internal line-up clamps, and laser alignment systems to maintain precise positioning throughout the welding sequence. Root opening consistency around the entire circumference ensures uniform penetration and prevents incomplete fusion defects that compromise joint integrity. Tack welding procedures temporarily secure the assembly while allowing for final adjustments before completing the welding sequence, with tack welds properly sized and positioned to avoid interference with the final weld passes.

Edge Preparation and Beveling Standards

Edge preparation and beveling operations create the proper joint geometry necessary for complete penetration and optimal mechanical properties in buttweld fittings connections. Bevel angles typically range from 30 to 37.5 degrees included angle, depending on material thickness, welding process, and accessibility requirements for the specific application. Machining operations using lathes, beveling machines, or plasma cutting equipment produce consistent edge geometry with smooth surfaces free from irregularities that could cause weld defects. Root face dimensions, typically 1/16 to 1/8 inch, provide adequate material for proper fusion while preventing excessive penetration that could cause internal defects. Surface finish requirements specify maximum roughness values to ensure proper weld metal flow and minimize the potential for incomplete fusion along the preparation surfaces. Quality control measures include dimensional inspection using specialized gauges, visual examination for surface defects, and verification of proper angles and dimensions before assembly operations begin.

Welding Process Selection and Parameter Control

Arc Welding Techniques and Applications

Arc welding processes represent the most commonly employed methods for joining buttweld fittings in industrial piping systems, offering versatility, reliability, and excellent mechanical properties when properly applied. Gas Tungsten Arc Welding (GTAW) provides superior control over heat input and weld metal deposition, making it ideal for root pass applications and thin-wall materials where precision is paramount. The inert gas shielding prevents atmospheric contamination while allowing excellent visibility of the weld pool for precise control of penetration and profile. Shielded Metal Arc Welding (SMAW) offers portability and versatility for field applications, with electrode selection providing flux protection and alloying additions to achieve desired mechanical properties. Gas Metal Arc Welding (GMAW) enables high deposition rates and excellent productivity for fill and cap passes on thicker sections while maintaining good weld quality. Process selection depends on factors including material type, thickness, position, accessibility, and quality requirements specific to the buttweld fittings application. Qualified welding procedures specify parameters including current, voltage, travel speed, and shielding gas composition to ensure consistent results and compliance with applicable codes and standards.

Heat Input Management and Control

Controlling heat input during welding operations directly affects grain structure, mechanical properties, and corrosion resistance of buttweld fittings connections, making it a critical parameter for achieving optimal joint performance. Excessive heat input can cause grain growth, reduce toughness, and promote carbide precipitation in stainless steel materials, while insufficient heat input may result in incomplete fusion and inadequate penetration. Heat input calculations consider welding current, arc voltage, and travel speed to determine the energy delivered per unit length of weld, typically expressed in kilojoules per inch. Interpass temperature control prevents excessive heating that could adversely affect material properties, with maximum temperatures specified based on material type and thickness requirements. Cooling rate management through controlled ambient conditions, backing gas, or post-weld heat treatment ensures optimal microstructure development and mechanical properties. Monitoring equipment including thermocouples, infrared thermometers, and heat input meters provide real-time feedback to maintain parameters within specified ranges throughout the welding sequence.

Shielding Gas Selection and Flow Control

Proper protecting gas choice and stream control ensure the liquid weld metal from barometrical defilement whereas affecting circular segment characteristics and weld entrance designs in buttweld fittings applications. Argon gives amazing circular segment soundness and produces clean welds with negligible splash, making it perfect for GTAW root passes and applications requiring prevalent surface wrap up. Helium increases increment warm input and entrance whereas progressing travel speeds, especially useful for thicker areas and mechanized welding operations. Carbon dioxide augmentations in GMAW applications give more profound infiltration and expanded statement rates whereas keeping up financial focal points for generation welding. Gas stream rates must be carefully controlled to give satisfactory security without causing turbulence that might draw air gasses into the protecting envelope. Backing gas frameworks ensure the root side of the weld from oxidation, especially basic for stainless steel and other responsive materials utilized in buttweld fittings make. Gas immaculateness necessities indicate most extreme dampness and oxygen levels to avoid defilement that seem cause porosity or decrease erosion resistance in the wrapped up weld.

Quality Assurance and Testing Protocols

Non-Destructive Testing Methods

Non-destructive testing (NDT) methods provide essential quality verification for buttweld fittings installations without compromising the integrity of the welded joint, enabling detection of internal and surface defects that could affect long-term performance. Radiographic testing reveals internal discontinuities including porosity, incomplete penetration, and inclusions through X-ray or gamma ray imaging techniques that produce permanent records for documentation and analysis. Ultrasonic testing offers real-time defect detection with excellent sensitivity to planar defects such as lack of fusion and cracking while providing depth information and defect sizing capabilities. Magnetic particle testing detects surface and near-surface defects in ferromagnetic materials through the application of magnetic fields and magnetic particles that concentrate at discontinuities. Liquid penetrant testing identifies surface-breaking defects in all materials regardless of magnetic properties, using penetrating liquids and developer systems to enhance defect visibility. Eddy current testing provides rapid surface inspection capabilities particularly suited for heat exchanger tubing and thin-wall applications. Testing procedures, acceptance criteria, and documentation requirements follow applicable codes such as ASME Section V and industry standards specific to the intended service application.

Mechanical Testing and Property Verification

Mechanical testing programs verify that buttweld fittings connections meet specified strength, ductility, and toughness requirements under various loading conditions and service environments. Tensile testing determines ultimate strength, yield strength, and elongation properties using specimens machined from welded test coupons or production joints according to standardized procedures. Bend testing evaluates ductility and soundness through guided bend tests that stress the weld and heat-affected zone under controlled deformation conditions. Impact testing measures fracture toughness at various temperatures, particularly important for low-temperature service applications where brittle fracture could occur. Hardness testing identifies potential heat-affected zone problems and verifies proper heat treatment effectiveness through systematic measurements across the joint cross-section. Macro-etching examinations reveal weld profile, penetration depth, and microstructural features that indicate proper welding technique and absence of defects. Testing frequencies and specimen selection follow statistical sampling plans that provide confidence in overall joint quality while maintaining economic feasibility for production operations.

Documentation and Quality Control Records

Comprehensive documentation and quality control records give traceability, legitimate compliance, and execution history for buttweld fittings establishments all through their benefit life. Welding strategy determinations (WPS) report the basic factors, parameters, and strategies qualified through strategy capability testing to guarantee steady comes about over all generation welding. Welder execution capability records illustrate person welder competency on particular forms, materials, and joint arrangements pertinent to the aiming applications. Fabric test reports (MTRs) give chemical composition, mechanical properties, and warm treatment history for all materials utilized in the development, empowering relationship with benefit execution and disappointment investigation when required. Non-destructive testing reports record examination strategies, comes about, and acknowledgment choices with lasting records of any abandons found and repair activities taken. Welding handle observing records track genuine parameters utilized amid generation welding, giving confirmation of compliance with qualified strategies and empowering handle changes. Quality control review reports record dimensional confirmation, visual examination comes about, and compliance with pertinent guidelines and details all through the manufacture and establishment process.

Conclusion

Successful butt welding of industrial fittings requires mastery of proper methods and meticulous preparation procedures to achieve reliable, high-performance connections. Surface preparation, welding technique selection, and quality control measures directly impact joint integrity and service life in demanding applications. Professional implementation of these practices ensures buttweld fittings perform reliably throughout their design life. With over 40 years of manufacturing expertise, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd (JS FITTINGS) continues to advance butt welding technology through continuous process improvement and rigorous quality standards, establishing itself as a trusted Buttweld Fittings Supplier.

FAQ

1. What are the most critical factors for successful butt welding preparation?

Surface cleanliness represents the most fundamental requirement, as contamination causes defects that compromise joint integrity. Proper fit-up with controlled gaps and alignment prevents stress concentrations and ensures complete penetration. Edge preparation with appropriate bevel angles creates optimal joint geometry for the welding process. Temperature control throughout the procedure maintains material properties and prevents distortion in buttweld fittings installations.

2. How do you determine proper heat input for different material thicknesses?

Heat input calculations consider welding current, voltage, and travel speed to determine energy per unit length. Material thickness, thermal conductivity, and mechanical property requirements influence acceptable heat input ranges. Thicker sections require higher heat input for adequate penetration, while thin materials need careful control to prevent burn-through. Qualified welding procedures specify parameters based on extensive testing and code requirements for buttweld fittings applications.

3. What shielding gas combinations work best for stainless steel buttweld fittings?

Pure argon provides excellent arc stability and surface finish for root passes in stainless steel welding applications. Argon-helium mixtures increase penetration and travel speeds for fill passes while maintaining cleanliness. Backing gas systems using argon prevent root oxidation that could reduce corrosion resistance. Gas purity specifications limit moisture and oxygen content to prevent porosity and maintain weld quality throughout the buttweld fittings installation process.

4. Why is post-weld heat treatment sometimes required for buttweld fittings?

Post-weld heat treatment relieves residual stresses that could cause stress corrosion cracking or distortion under service conditions. Heat treatment improves toughness by refining grain structure and reducing hardness in the heat-affected zone. Code requirements specify mandatory heat treatment based on material type, thickness, and service conditions. Proper heat treatment cycles restore material properties and ensure long-term reliability in critical buttweld fittings applications.
