Types and Uses of Buttweld Fittings?

Buttweld fittings speak to one of the most basic components in advanced channeling frameworks, serving as the spine for endless mechanical applications around the world. These specialized pipe associations offer unparalleled quality and unwavering quality when legitimately introduced, making them vital over assorted segments from oil and gas to chemical handling. Understanding the different sorts and applications of buttweld fittings is basic for engineers, temporary workers, and acquirement pros looking for ideal arrangements for their ventures. This comprehensive direct investigates the crucial characteristics, classification strategies, and commonsense applications of buttweld fittings in modern mechanical environments.

Classification of Buttweld Fittings by Design and Function

Elbow Fittings: Directional Change Solutions

Elbow buttweld fittings serve as the essential arrangement for changing pipeline course whereas keeping up auxiliary astuteness and stream productivity. Accessible in 45-degree and 90-degree arrangements, these fittings suit different channeling format prerequisites without compromising framework execution. The fabricating handle includes shaping consistent or welded pipe areas into exact precise setups, guaranteeing reliable divider thickness and dimensional exactness. Long span elbows give smoother stream characteristics by lessening turbulence and weight drop, making them perfect for applications where liquid flow are basic. Brief span elbows offer compact establishment alternatives in space-constrained situations whereas still conveying solid execution. The welding prepare requires cautious consideration to warm input and cooling rates to keep up the fitting's metallurgical properties and anticipate push concentration focuses that may lead to untimely failure.

Tee Fittings: Branch Connection Capabilities

Tee buttweld fittings facilitate branch connections in piping systems, enabling fluid distribution or collection from main pipeline runs. These fittings come in equal and reducing configurations, allowing for versatile system design and optimal flow management. The manufacturing process typically involves hot forming or machining operations that create seamless transitions between the run and branch connections. Straight tees maintain uniform diameter across all three outlets, while reducing tees accommodate different pipe sizes for efficient system integration. The welding procedure for tee installations demands precise alignment and controlled heat input to ensure uniform penetration and avoid distortion. Quality tee fittings distribute stress evenly across the connection points, preventing localized failures that could compromise entire system integrity. Proper installation techniques include adequate purging procedures and post-weld heat treatment when required by applicable codes and standards.

Reducer Fittings: Size Transition Management

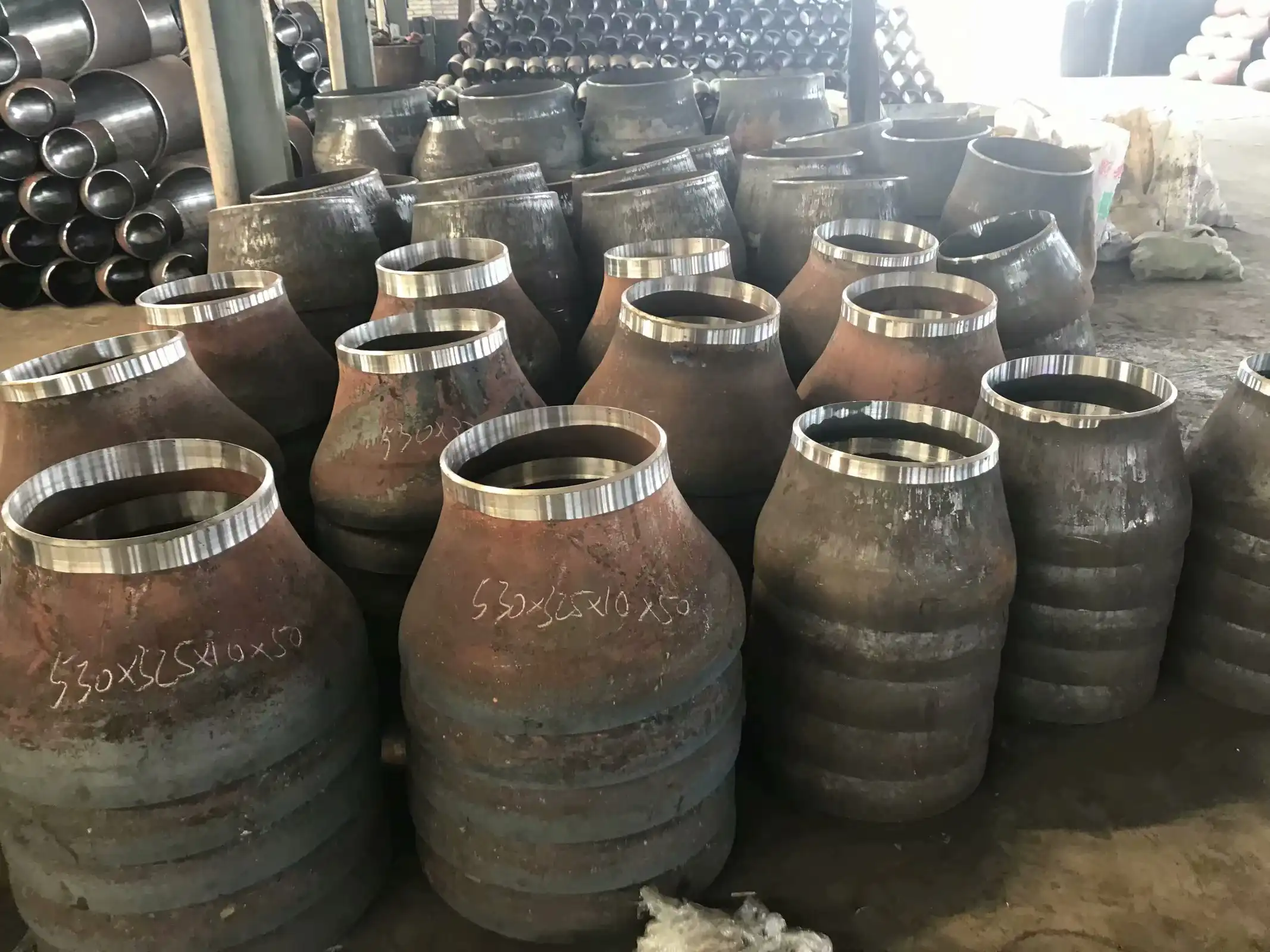

Reducer buttweld fittings give smooth moves between distinctive pipe distances across whereas keeping up ideal stream characteristics and framework weight appraisals. Concentric reducers keep up centerline arrangement between interfacing channels, making them reasonable for flat establishments and applications where uniform stream dissemination is fundamental. Unpredictable reducers balanced one edge to anticipate discuss stash arrangement in level lines or encourage waste in frameworks requiring total liquid departure. The fabricating handle guarantees progressive decrease points that minimize turbulence and weight misfortunes whereas giving satisfactory fabric thickness for auxiliary keenness. Establishment strategies must account for the fitting's introduction and arrangement to accomplish craved water powered execution. Welding strategies require cautious control of warm input designs to anticipate twisting and keep up dimensional precision all through the association zone. Quality reducers experience thorough testing to confirm their capacity to withstand plan weights and temperatures whereas giving long-term benefit reliability.

Industrial Applications and Sector-Specific Uses

Oil and Gas Industry Applications

The oil and gas sector represents the largest consumer of buttweld fittings, utilizing these components in upstream exploration, midstream transportation, and downstream refining operations. Exploration and production facilities require fittings capable of withstanding extreme pressures, corrosive environments, and wide temperature variations encountered in drilling and extraction processes. Pipeline transportation systems depend on high-integrity buttweld fittings to ensure safe and efficient hydrocarbon movement across vast distances while meeting stringent environmental and safety regulations. Refinery operations demand specialized fittings designed for specific process conditions, including high-temperature cracking units, corrosive chemical environments, and critical safety systems. The selection process considers factors such as material compatibility, pressure ratings, temperature limits, and compliance with industry standards like ASME B16.9 and API specifications. Installation procedures follow rigorous quality control protocols including non-destructive testing, material traceability, and comprehensive documentation requirements to ensure operational safety and regulatory compliance.

Chemical and Petrochemical Processing

Chemical and petrochemical industries rely heavily on buttweld fittings to handle diverse process fluids ranging from benign water streams to highly corrosive chemicals and aggressive solvents. Process design considerations include material selection based on chemical compatibility, temperature cycling effects, and potential stress corrosion cracking mechanisms. Specialized alloys such as stainless steel, duplex materials, and exotic metals provide enhanced resistance to specific chemical environments while maintaining structural integrity under operating conditions. Installation procedures incorporate advanced welding techniques, including orbital welding for critical applications and controlled atmosphere welding to prevent oxidation and contamination. Quality assurance programs include extensive material testing, dimensional verification, and performance validation to ensure fittings meet process requirements and safety standards. Maintenance protocols emphasize regular inspection schedules, predictive monitoring techniques, and proactive replacement strategies to prevent unplanned shutdowns and environmental incidents.

Power Generation and Nuclear Applications

Power era offices, counting ordinary warm plants and atomic establishments, utilize specialized buttweld fittings planned for extraordinary benefit conditions and improved security prerequisites. Steam era frameworks require fittings able of taking care of high-pressure, high-temperature water and steam whereas keeping up leak-tight astuteness all through different warm cycles. Atomic applications request extra contemplations counting radiation resistance, fabric traceability, and compliance with atomic quality affirmation programs such as ASME Area III necessities. Fabricating forms for nuclear-grade fittings join upgraded quality control measures, counting 100% fabric testing, total dimensional confirmation, and comprehensive documentation bundles. Establishment methods take after strict conventions counting qualified welding faculty, controlled welding parameters, and broad post-weld examination utilizing progressed non-destructive testing strategies. Benefit life contemplations incorporate fabric maturing impacts, warm weakness resistance, and long-term basic steadiness beneath ceaseless working conditions.

Material Selection and Performance Considerations

Carbon Steel Applications and Limitations

Carbon steel buttweld fittings provide cost-effective solutions for general service applications where temperature and corrosion requirements fall within acceptable limits for standard carbon steel materials. These fittings offer excellent mechanical properties, including high strength, good ductility, and reliable weldability characteristics that facilitate installation and maintenance procedures. Temperature limitations typically restrict carbon steel applications to services below 800°F, beyond which material properties begin to deteriorate and oxidation rates increase significantly. Corrosion considerations require careful evaluation of service environments, with protective coatings or cathodic protection systems often necessary for extended service life. Manufacturing standards such as ASTM A234 WPB specify chemical composition, mechanical properties, and testing requirements to ensure consistent quality and performance. Heat treatment requirements may include normalizing or stress relieving operations to optimize material properties and relieve residual stresses from forming operations. Quality control procedures encompass chemical analysis, mechanical testing, and dimensional verification to confirm compliance with applicable specifications and customer requirements.

Stainless Steel Advantages and Applications

Stainless steel buttweld fittings provide superior corrosion resistance and enhanced mechanical properties for demanding service conditions across various industrial sectors. Austenitic grades such as 304L and 316L offer excellent general corrosion resistance, good formability, and reliable welding characteristics suitable for most process applications. Duplex stainless steels combine high strength with enhanced corrosion resistance, making them ideal for offshore oil and gas applications, chemical processing, and other aggressive environments. Manufacturing processes maintain strict control over chemical composition, grain structure, and surface finish to optimize corrosion resistance and mechanical properties. Welding procedures require careful attention to heat input, interpass temperature control, and post-weld treatment to prevent sensitization and maintain corrosion resistance. Quality assurance programs include chemical analysis, intergranular corrosion testing, and mechanical property verification to ensure fittings meet specification requirements and service expectations. Long-term performance benefits include reduced maintenance requirements, extended service life, and improved safety margins compared to carbon steel alternatives.

Alloy Steel Performance Characteristics

Alloy steel buttweld fittings give improved mechanical properties and progressed execution characteristics for high-temperature, high-pressure, and specialized benefit applications. Chrome-molybdenum combinations offer amazing high-temperature quality, crawl resistance, and oxidation resistance for control era and petrochemical applications. Low-temperature benefit grades keep up ductility and affect resistance at cryogenic temperatures, making them reasonable for LNG offices and discuss division plants. Warm treatment forms counting extinguishing and treating optimize fabric properties to meet particular benefit prerequisites and accomplish wanted strength-to-weight proportions. Welding contemplations incorporate preheating necessities, controlled cooling rates, and post-weld warm treatment to keep up fabric properties and anticipate breaking. Quality control methods include comprehensive chemical examination, mechanical testing, and non-destructive examination to confirm fabric judgment and dimensional exactness. Execution preferences incorporate expanded benefit life, moved forward security edges, and diminished upkeep necessities compared to standard carbon steel materials in requesting applications.

Conclusion

Buttweld fittings serve as essential components in modern industrial piping systems, offering superior strength, reliability, and versatility across diverse applications. The comprehensive understanding of fitting types, materials, and applications enables optimal selection for specific service conditions while ensuring long-term performance and safety. With over 40 years of manufacturing expertise, Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd (JS FITTINGS) continues to provide high-quality steel buttweld fittings that meet the most demanding industrial requirements through advanced production capabilities and rigorous quality control processes, establishing itself as a trusted Buttweld Fittings Supplier.

FAQ

1. What are the main advantages of buttweld fittings over threaded connections?

Buttweld fittings provide superior strength and leak-tight integrity compared to threaded connections, eliminating potential failure points associated with thread engagement. The welded connection creates a homogeneous joint that can withstand higher pressures and temperatures while providing better fatigue resistance. Additionally, buttweld fittings offer smoother internal surfaces that reduce pressure losses and improve flow characteristics in piping systems.

2. How do you ensure proper alignment during buttweld fitting installation?

Proper alignment requires careful measurement and positioning using alignment tools and fixtures to maintain pipe centerlines and prevent angular misalignment. Pre-welding procedures include fit-up verification, gap measurement, and tack welding to secure positioning before final welding operations. Professional installation techniques incorporate laser alignment systems and precision measuring instruments to achieve optimal joint geometry and prevent stress concentration points.

3. What factors determine the selection of fitting materials for specific applications?

Material selection depends on service conditions including operating temperature, pressure requirements, fluid compatibility, and environmental factors such as corrosion potential. Chemical compatibility assessments evaluate material resistance to process fluids while mechanical property requirements consider stress levels and fatigue conditions. Industry standards and codes provide guidance for material selection based on specific application requirements and safety considerations.

4. Why is post-weld heat treatment sometimes required for buttweld fittings?

Post-weld heat treatment relieves residual stresses, improves material properties, and ensures optimal microstructure in the weld zone and heat-affected areas. This process reduces the risk of stress corrosion cracking, improves toughness, and enhances long-term service reliability. Code requirements specify when heat treatment is mandatory based on material type, wall thickness, and service conditions to ensure safe operation throughout the design life.
